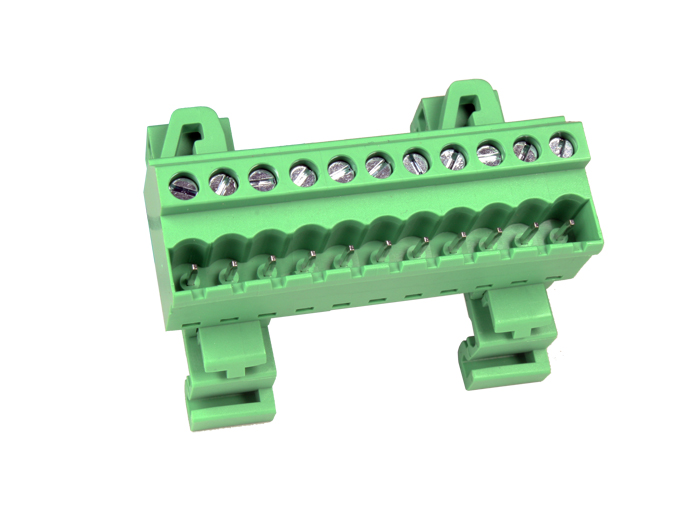

Camdenboss - 5.08mm Pitch 11 Contacts , Carril DIN Pluggable Male Closed Mount Terminal Block, 20A, Green - CTBPD96VJ-11

Name: Camdenboss - 5.08mm Pitch 11 Contacts , Carril DIN Pluggable Male Closed Mount Terminal Block, 20A, Green - CTBPD96VJ-11
Brand: Camdenboss
SKU: CTNA51CD11
Price: 8.24 EUR
Availability: InStock

CTNA51CD11

Data sheet

Data sheet

Available

Stock

Quantity

VAT NOT INCLUDED

VAT INCLUDED

6.81 €

8.24 €

>=5 Pcs

6.13 €

7.42 €

>=20 Pcs

5.45 €

6.59 €

>=50 Pcs

4.77 €

5.77 €

Identification

EE Code CTNA51CD11

Brand

CamdenBoss

Model

Manufacturer code CTBPD96VJ-11

EAN13

Features

Pluggable terminal block for PCB, using cables up to 2.5 mm cross section

Polyamide PA66 housing

Vertical orientation

Polarized connector

Molded from green polyamide UL94-V0 PA 66 (flame retardant)

2.5 mm2 (28-14AWG)

6 - 12 standard pins (13 - 24 also available)

Specifications

Nombre de broches: 11

Courant maximal des broches: UL=15A/300V, IEC=20A/450V

Pas: 5,08 mm

Contact resistance: 20 mm

M3 galvanized steel screws (0,5 Nm)

Working temperature: -40°C à 105°C
