What is a semiconductor diode?
A semiconductor diode is a two-terminal electronic component that allows current to flow through it in only one direction, from anode to cathode. It is made of a semiconductor material, such as silicon or germanium, that has electrical properties between those of a conductor and an insulator.
This diode consists of the union of two semiconductor materials of type P (positive) and N (negative).
- P-type semiconductor: In this material, holes are the majority charge carriers, which means that there are a large number of free holes to conduct current. Electrons are the minority carriers.
- N-type semiconductor: In this material, electrons are the majority charge carriers, meaning there are a large number of free electrons to conduct current. The gaps are the minority carriers.
When a P-type semiconductor and an N-type semiconductor are brought into contact, the diffusion of charge carriers from one region to the other occurs. Electrons on the N side migrate toward the P side, while holes on the P side migrate toward the N side. This is because the minority carriers on each side tend to diffuse toward the region where they are in the majority.
This diffusion process gives rise to a region near the junction where the charge carriers are free to move. This region is called the space charge region or depletion region. In this region, electrons and holes recombine, creating a zone that lacks free charge carriers. This leads to the formation of an electric field that acts as a barrier to further diffusion of charge carriers across the junction.
In summary, the PN junction creates a structure that has a region where charge carriers are free to move (the space charge region) and a region where charge carriers are virtually absent (the depletion region).
As diffusion progresses, this region widens, creating an electric field that opposes the flow of electrons. This opposition results in a potential difference between the p and n regions, with typical values of 0.7 V for silicon and 0.3 V for germanium. The width of the depletion region can vary depending on the doping concentrations of the crystals. When an external voltage difference is applied to the diode, it becomes polarized, which can be forward or reverse polarization.

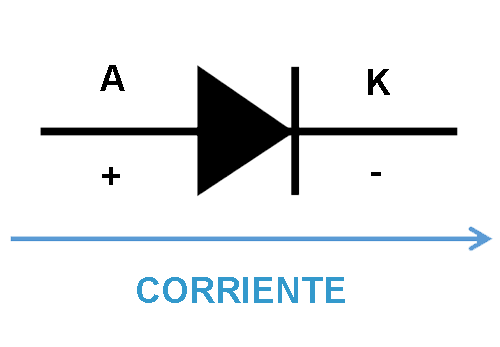

The most common symbol to represent a diode is a black arrow with a stripe at the tip of the arrow. The terminal on the wide side of the arrow corresponds to the anode and is represented by the letter A. The terminal connected to the stripe part corresponds to the cathode. For current to flow, the diode must be forward biased. This means that the anode has a more positive voltage than the cathode, and the current flows in the direction from anode to cathode, which is the direction of the arrow:
Forward biasing of a diode
For forward polarization, the positive pole of the battery is connected to the anode and the negative pole to the cathode of the diode. This allows the free electrons in the n-crystal to move toward the p-n junction, while the holes in the p-crystal move in the same direction. When the potential difference of the battery exceeds that of the space charge zone, the electrons jump into the holes of the p-crystal, generating a constant electric current.
Reverse biasing of a diode
For reverse polarization, the negative pole of the battery is connected to the p crystal and the positive pole to the n crystal. This increases the space charge zone and the tension in that zone. Although the diode should not conduct current in this situation, due to the effect of temperature, electron-hole pairs are generated on both sides of the junction, producing a small reverse saturation current. Additionally, there is a surface leakage current due to the lack of sufficient covalent bonds on the diode surface, although this current is usually negligible.
This type of semiconductor is used in a wide variety of applications, including:
- Rectification: convert alternating current (AC) to direct current (DC)
- Detection: Convert AC signals to DC signals
- Amplification: increasing the amplitude of a signal
- Switching: turning a signal on and off
- Protection: Protect circuits from surge damage
- Lighting: in the case of LED diodes. But this type of diode is found in another specific section.
Semiconductor diodes are very versatile and reliable electronic components that are used in a wide variety of applications.
Characteristic curve of a semiconductor diode
The characteristic curve of a semiconductor diode is a graphical representation of the relationship between the current flowing through the diode and the voltage applied across it. The typical curve is exponential, meaning that the current increases exponentially with increasing applied forward voltage.
The fundamental parameters of the curve of a semiconductor diode are:
- Threshold voltage (Vf): The voltage necessary to activate current flow (called the "threshold voltage" or "potential barrier") in a diode matches the voltage present in the area where space charges accumulate when the diode is unbiased. . By applying forward bias to the diode, this initial barrier decreases, resulting in a slight increase in current, approximately around 1% of the rated current. However, when the voltage applied from outside exceeds the threshold voltage, the potential barrier disappears. This means that small changes in voltage result in large changes in the current flowing through the diode.
- Forward current (If): It is the current that flows through the diode when a forward voltage is applied. It is related to the forward voltage across the diode characteristic curve.
Maximum forward current (Ifav): Maximum forward current or maximum average forward current is the maximum current that the diode can handle continuously without damage. The Ifav current is crucial to prevent the diode from overheating during normal operation. When the current through the diode exceeds its Ifav, excessive heating can occur which could damage or destroy the diode. Therefore, it is essential to select a diode with an appropriate Ifav for the specific application, taking into account the operating conditions and expected maximum currents.
- Reverse saturation current (Ir or Is): By reverse polarizing the diode, a small current is established due to the formation of electron-hole pairs due to temperature, admitting that it doubles for every 10 °C increase in the temperature. This current is undesirable in many cases and is desired to be as low as possible.
- Maximum reverse voltage (Vrrm): It is the maximum reverse voltage that a diode can withstand without damage. This parameter is crucial in applications where reverse bias operation is required. We can also say that it is the maximum voltage that the diode supports in reverse bias before the avalanche effect occurs. When the reverse voltage applied to a diode exceeds a certain critical level, the electrons in the depletion region gain enough kinetic energy to release additional electrons from the atoms of the semiconductor material through collisions, thus creating an avalanche of charge carriers. This leads to a rapid increase in reverse current through the diode. This effect can be used in applications such as Zener diodes, where a precise reverse voltage is required to regulate the voltage in a circuit.
- Breakdown voltage (Vz): It is the reverse voltage at which the diode goes from a non-conducting state to a conduction state due to the Zener effect or the avalanche effect, depending on the type of diode. This behavior is critical in Zener diodes, which are commonly used in voltage regulation and surge protection applications. In these applications, the Zener diode is reverse biased and operated in its Zener breakdown region to maintain a constant voltage across its terminal, regardless of variations in the current passing through the circuit. This makes them very useful in voltage regulation circuits, reference stabilization and surge protection.
- Power capacity (Pd): It is the maximum power that the diode can dissipate without damage. This parameter is critical in high power applications.
The power dissipated in a diode is directly related to its packaging, since the packaging affects the diode's ability to dissipate the heat generated during its operation. When a diode conducts current, some of the electrical energy is converted to heat due to the inherent resistance of the semiconductor and the effects of switching.
The diode package provides a path to dissipate this heat to the surrounding environment. A larger package or one with a greater surface area tends to be more efficient at dissipating heat than a smaller one. Additionally, some packages may be designed with specific features to improve heat dissipation, such as cooling fins, exposed metal connections, or surface mounts.
Therefore, the power dissipated in a diode can be influenced by the design and characteristics of the package. It is important to select a diode with a suitable package for the specific application, especially if the diode is expected to handle high currents or voltages, as inadequate packaging could result in overheating of the diode and possibly premature failure.
- Recovery time (trr):
It is the time required for the reverse current of a diode to recover after the polarity is reversed and a reverse voltage is applied.
When working at high frequencies, it is essential that the diode recovery time be as short as possible to minimize the time during which the diode is inactive or conducting reverse current, which can lead to power losses and signal distortions. Therefore, circuit designers must select diodes with recovery times appropriate for the specific operating frequencies of their application.
Fast recovery diodes (or Schottky diodes) are especially useful in high frequency applications as they have significantly shorter recovery times compared to conventional PN junction diodes. This is due to the absence of the intrinsic depletion region in Schottky diodes, allowing for faster recovery of current after a change in bias.
In summary, when selecting a diode for high frequency applications, it is important to carefully consider its recovery time to ensure optimal circuit performance in terms of efficiency, signal distortion, and power losses.
What types of diodes exist?
There are a wide variety of diodes. For example:
Universal diode for small signal:
Small signal diodes are semiconductor devices designed for applications where optimal operation at relatively low currents and voltages is required. They have features that make them suitable for low power and small signal applications. Here are some of the most common applications of small signal diodes:
-
- Rectification of low frequency signals: Small signal diodes are used in rectification circuits for audio signals and other low frequency signals where it is required to convert alternating current into direct current.
- Signal detection: They are used in radio frequency (RF) and microwave detection circuits to demodulate amplitude modulated (AM) or frequency (FM) signals.
- Protection Circuits: Small signal diodes are used in surge and spike protection circuits in sensitive applications where fast response and low parasitic capacitance are required.
- Low Power Switching Applications: In low power electronics and digital logic circuits, small signal diodes can act as switching elements to route signals or protect sensitive components.
- Oscillators and delay circuits: They are used in low frequency oscillator circuits and signal delay circuits where fast response and low parasitic capacitance are required.
- Weak Signal Amplifiers: In some weak signal amplifier circuits, small signal diodes can play a role in bias correction or stabilizing the operating point of the transistor.
- Temperature Compensation and Correction Circuits: Small signal diodes are used in temperature compensation and correction circuits to improve the stability and accuracy of temperature measurements.
- Feedback and regulation circuits: In feedback and regulation circuits, small signal diodes can be used to provide current feedback or to stabilize the operation of the circuit.
Rectifier diode:
Rectifier diodes are a specific type of diodes designed primarily for the rectification of alternating current (AC) to direct current (DC), but they are also used to prevent signal feedback and protect semiconductors against voltage spikes generated by disconnection of power. coils, relays, motors, and other solenoids, etc.
Key applications of rectifier diodes:
-
- Power Supplies: Rectifier diodes are used in half-wave, full-wave and bridge rectifiers, which convert alternating current from the mains to direct current to power electronic devices and electrical systems.
- Power Electronics: Rectifier diodes are used in motor control systems, power inverters, uninterruptible power supplies (UPS), renewable energy systems (solar panels, wind turbines, etc.), and other high power systems where energy conversion is required.
- Audio and video electronics: In audio amplifiers and audio-visual circuits, rectifier diodes are used in the power supply to provide direct current to the amplifiers and control circuits.
- Battery Chargers: Rectifier diodes are used in battery chargers to convert alternating current from the mains into direct current and charge batteries efficiently and safely.
- Automotive Electronics: In automotive vehicles and systems, rectifier diodes are used in battery charging systems, lighting systems, engine control systems, and other electrical systems.
- Communications Electronics: Rectifier diodes are used in signal modulation and demodulation circuits, radio transmitters and receivers, wireless communication systems, and other telecommunications systems.
- Control and automation electronics: In industrial control and automation systems, rectifier diodes are used in power supplies, motor control circuits, coils and electromechanical relays in general to protect other semiconductor circuits, temperature control systems and others. electrical and electronic systems, to avoid signal returns, etc.
Switching diodes:
A fast recovery diode, also known as fast switching diode or fast recovery rectifier diode, is a special type of diode designed to have a reduced recovery time after conducting current in the reverse direction. It is a type of rectifier diode that can work with higher frequencies.
When a diode conducts current in the forward direction and then the polarity of the applied voltage is reversed, it takes a short time for the diode to stop conducting and block current in the reverse direction. During this recovery time, there is a gap during which the diode can still allow current to flow in the reverse direction, which can be problematic in high frequency or high power applications.
Fast recovery diodes are designed to minimize this recovery time, making them suitable for fast switching applications where very short switching times are needed. This means they are able to switch from a conduction state to a blocking state much faster than conventional diodes.
Fast recovery diodes are typically used in applications such as high-frequency rectifiers, high-speed switching circuits (for example, in switching power supplies and DC-DC converters), and motor control systems, where fast switching and low energy loss are important.
In summary, a fast recovery diode is a special type of diode designed to have a reduced recovery time after conducting current in the reverse direction, making them suitable for high frequency and high switching speed applications.
Fast recovery diodes are used in a variety of applications where fast and efficient switching of electrical current is required.
Some of the most common applications of fast switching diodes are:
-
- Switching power supplies: In high-frequency switching systems, such as switching power supplies, fast recovery diodes are used in rectifier circuits to convert alternating current to direct current with optimal switching speed and efficiency.
- Power Electronics: In power electronics applications such as DC-DC and DC-AC converters, fast recovery diodes help minimize power losses and improve system energy efficiency.
- Motor Control: In motor control systems, fast recovery diodes are used in voltage reversal circuits to protect power transistors and other current control devices.
- High-speed switching circuits: In high-speed applications such as communication circuits and data switching circuits, fast recovery diodes are used to minimize recovery time and improve switching speed.
- RF (Radio Frequency) Applications: In high frequency applications, such as in radio frequency circuits and wireless communications, fast recovery diodes are useful to minimize signal losses and improve circuit efficiency.
Zener diode
A Zener diode is a special type of diode designed to operate in its reverse breakdown region in a controlled manner. Unlike conventional diodes, which are damaged if reverse biased above their maximum voltage, Zener diodes are designed to maintain a constant voltage across their terminals when reverse biased above their breakdown voltage (called Zener voltage).
The main characteristic of a Zener diode is its ability to maintain a constant voltage across its terminals, regardless of the current passing through it, as long as it is kept within certain limits. This makes them very useful in a variety of applications, including the following:
-
- Voltage Regulation: A common application of Zener diodes is in voltage regulator circuits. By connecting a Zener diode in reverse in parallel with a load, a constant voltage can be established across the load, even if the input voltage varies within certain limits. This is used in simple and efficient voltage regulators for low power applications.
- Voltage Reference: Due to their ability to maintain a constant voltage, Zener diodes are commonly used as a voltage reference in measurement and control circuits. They provide a stable and accurate reference that can be used to compare or monitor other voltages in the circuit.
- Surge Protection: Zener diodes are also used to protect electronic circuits from surges. By placing a Zener diode in parallel with an electronic device, the Zener becomes reverse biased and begins to conduct when the voltage exceeds its breakdown voltage, thus diverting excessive current and protecting the device.
- Current Limiting: In some circuits, Zener diodes are used to limit the current flowing through a load. When connected in series with a resistor, Zener diodes can limit the voltage across the load by maintaining a constant voltage across them, which in turn limits the current.
Schottky diode:
The Schottky diode is a special type of diode characterized by having a lower forward voltage drop (VF) than conventional PN junction diodes. This is because it is built with a metal-semiconductor junction instead of a PN junction.
These are some of the most common applications of Schottky diodes:
-
- High Frequency Rectification: Due to their low forward voltage drop and fast recovery time, Schottky diodes are ideal for high frequency rectification applications, such as in switching power supplies and switching circuits.
- Reverse Polarity Protection: Schottky diodes are often used in reverse polarity protection circuits to prevent damage to sensitive components. Their low forward voltage drop makes them effective at diverting current when reverse polarity is applied.
- Signal Clipping and Clipping: Due to their low voltage drop and fast switching, Schottky diodes are used in signal clipping and clipping circuits in applications such as audio amplifiers and signal processing circuits.
- High-speed detection: In high-speed detection circuits, such as radio frequency (RF) detectors and data switching circuits, Schottky diodes are used to provide fast detection response due to their fast recovery time.
- Surge Protection Circuit: Schottky diodes are also used in surge protection circuits to limit voltage on sensitive components, such as in integrated circuits and electronic systems.
LED Diode (Light Emitting Diode):
LEDs (Light-Emitting Diodes) are semiconductor devices that emit light when an electric current is applied through them. Here is information about LED diodes and some of their applications:
Working principle: LED diodes work through a process called electroluminescence. When an electrical current is applied through the LED diode, electrons recombine with holes in the semiconductor structure, releasing energy in the form of photons. This energy manifests as visible light.
Energy Efficiency: LED diodes are known for their high energy efficiency compared to other light sources such as incandescent bulbs and fluorescent lamps. They convert a large part of electrical energy into light, instead of wasting it as heat.
Long lifespan: LED diodes have a much longer lifespan than traditional light sources. They can last up to 50 times longer than incandescent bulbs and up to 10 times longer than fluorescent lamps, reducing the need for replacement and maintenance cost.
Low Operating Voltage: LED diodes operate at relatively low voltages, making them ideal for low power and battery powered applications.
Diversity of colors: LED diodes are available in a wide range of colors, including red, green, blue, yellow, white and other special colors. This makes them versatile for a variety of lighting and signage applications.
Applications of LED diodes:
-
- Residential and commercial lighting: LED diodes are widely used in indoor and outdoor lighting, such as lamps, spotlights, light strips and panels. They are efficient, durable and can offer bright, quality lighting.
- Displays and Signage: LED diodes are used in electronic displays, advertising billboards, illuminated signs, traffic lights and traffic signs due to their brightness, contrast and ability to display different colors and patterns.
- Consumer Electronics: LED diodes are found in a variety of consumer electronic devices, such as televisions, monitors, mobile phones, digital watches, remote controls, among others, as status indicators and backlights.
- Automotive Lighting: LED diodes are used in brake lights, daytime running lights, position lights, interior and exterior lights of automobiles due to their low power consumption, long life and quick response.
- Decorative and architectural lighting: LED diodes are used in decorative and architectural applications, such as landscape lighting, accent lighting, facade lighting and interior design, due to their versatility, compact size and ability to create custom lighting effects.
These are just some of the most common applications of LED diodes, but their versatility makes them suitable for a wide variety of applications in various industrial, commercial and residential fields.
Photovoltaic Diode (Solar Cell):
Photovoltaic diodes, commonly known as solar cells or solar panels, are semiconductor devices that convert light energy (photons) into electricity through the photovoltaic effect. These devices are specifically designed to generate electrical energy from sunlight.
Here are some important aspects about photovoltaic diodes and their applications:
Principle of operation: Photovoltaic diodes are built using semiconductor materials, such as silicon. When photons from sunlight hit the surface of the semiconductor, they release electrons into the material, creating an electrical current. This current can be collected and used as electrical energy.
Structure: Solar panels are made up of multiple solar cells connected in series or parallel to increase the power and current generated. These solar cells are encapsulated in durable materials to protect them from the elements and ensure a long lifespan.
-
- Residential Applications: Solar panels are commonly used in residential applications to generate electricity for home use. They can be installed on roofs or on land adjacent to homes to take advantage of solar energy and reduce dependence on the conventional electrical grid.
- Commercial and commercial applications: In addition to residential use, solar panels are also used in commercial and commercial applications, such as in office buildings, factories, shopping malls, and other establishments. These solar systems can be larger and can be integrated into building infrastructure or installed on adjacent land areas.
- Remote and standalone applications: Solar panels are also used in remote or standalone applications where there is no access to the conventional electrical grid. For example, they are used in lighthouses, road signs, environmental monitoring stations, agricultural irrigation systems, and telecommunications systems.
- Space Applications: Photovoltaic diodes are also used in space applications, such as in satellites and spacecraft, where solar energy is the only energy source available. These solar systems are designed to withstand the extreme conditions of space and provide electrical power reliably for long periods of time.
Transil diode:
Transil diodes, also known as avalanche diodes or surge suppression diodes, are surge protection devices designed to limit and divert transient voltage spikes in a circuit, thereby protecting sensitive electronic components.
Here is information on the types and applications of Transil diodes:
Types of Transil diodes:
-
- Unidirectional: These Transil diodes allow current to flow in only one direction, from anode to cathode, and are used to protect against positive surges.
- Bidirectional: Bidirectional Transil diodes allow current to flow in both directions and are useful for protecting against both positive and negative surges.
Applications of Transil diodes:
-
- Integrated Circuit Protection: Transil diodes are commonly used to protect integrated circuits (ICs) and other sensitive electronic components from surges that could damage them. They are placed in parallel with the component to be protected and limit the voltage it can reach.
- Protection of communication lines: In communication systems, such as telephone lines, data lines and telecommunications networks, Transil diodes are used to protect against lightning-induced surges, load switching or other transient conditions.
- Power Line Protection: Transil diodes are used on power lines to protect against surges caused by switching inductive loads, short circuits, or sudden shutdown events.
- Automotive Systems Protection: In automotive systems, such as in vehicles and vehicle electronic equipment, Transil diodes are used to protect against surges caused by electrostatic discharge, overloads in the vehicle's electrical system, and other transient conditions.
- Protection of Renewable Energy Systems: In solar and wind energy systems, where load conditions can vary and generate surges, Transil diodes are used to protect inverters, controllers and other electronic components from damage.
Clamp diode:
The clamp diode, also known as elbow diode, is a special type of diode used to protect electronic circuits against excessive voltages. It is mainly used in applications where it is desired to limit the amplitude of the output signal to a safe level.
Operating principle:
The clamp diode is connected in parallel with the load or component to be protected. When the voltage on the load exceeds a certain threshold, the diode begins to conduct, diverting excessive current and thus limiting the voltage on the load to a safe level. The clamp diode configuration depends on the specific application, and is often used in conjunction with other protection components, such as resistors and capacitors.
Clamp diode applications:
-
- Protection of input/output (I/O) circuits: In electronic circuits, especially devices with input/output (I/O) ports exposed to adverse conditions, such as electrostatic discharge (ESD), the clamp diode is used to protect input/output pins from damage by power surges.
- Protection of communication lines: In communication systems, such as telephone lines, data lines and telecommunications networks, the clamp diode is used to protect against lightning-induced surges, load switching or other transient conditions.
- Protection of USB and HDMI ports: In electronic devices that use USB, HDMI or other connection ports, clamp diodes are used to protect against damage caused by voltage spikes in the connection cables.
- Power Circuit Protection: Clamp diodes are used in power lines to protect against surges caused by switching inductive loads, short circuits, or sudden shutdown events.
- Automotive Systems Protection: In automotive systems, such as in vehicles and vehicle electronic equipment, clamp diodes are used to protect against surges caused by electrostatic discharge, overloads in the vehicle's electrical system, and other transient conditions.
PIN diode:
The PIN diode is a special type of diode that is characterized by having an intrinsic region (I) of high resistivity between a p-type region (P) and an n-type region (N). The PIN designation comes from the P, I, and N type regions in that order. This unique design provides the PIN diode with special characteristics that make it useful in a variety of applications.
Operating principle:
When a forward voltage is applied to the PIN diode, charge carriers (electrons and holes) are injected into the intrinsic low-doping region. Due to the high resistivity of this region, the carriers undergo less recombination, allowing the intrinsic region to act as a charge storage area. This results in an increase in the charge storage capacity of the diode and a reduction in reverse capacitance.
PIN Diode Applications:
-
- Light Detectors: Due to their low noise and high sensitivity, PIN diodes are used in light detectors in a variety of applications, such as photodetectors in optical telecommunications systems, radiation detectors in medical instrumentation, and light detectors in cameras CCD and CMOS.
- Microwave Amplifiers: In high frequency applications, PIN diodes are used as switching components and as amplification devices in microwave amplifiers and RF switching devices due to their low reverse capacitance and high switching speed.
- Optical Modulators: PIN diodes are used in optical modulators for high-speed data transmission in optical communication systems. In these devices, the PIN diodes are reverse biased to change the attenuation of the incident light, allowing modulation of the optical signal.
- Circuit Protection: In some applications, PIN diodes are used to protect sensitive circuits from surges and electrostatic discharge, as they have a greater ability to handle high levels of current and power compared to other types of diodes.
Laser Diode
The laser diode is a semiconductor device that uses stimulated emission of radiation to generate coherent light in a wide range of wavelengths, from infrared to ultraviolet, depending on the semiconductor material used and its design. It is a specialized form of diode used in a variety of applications that require high intensity and coherent light, such as optical communication, laser printing, laser surgery, barcode reading, and more.
Laser diode working principle:
The basic operation of a laser diode involves the stimulated emission of photons by injecting electrical current through a semiconductor material structure. This structure generally consists of layers of P-type and N-type semiconductor material, with an active layer (often doped with some material to improve light-emitting properties) between them. When a forward voltage is applied to the diode, electrons and holes recombine in the active layer, generating photons. These photons stimulate additional photon emission, resulting in the emission of laser light.
Main features:
-
- Coherence: The light emitted by a laser diode is highly coherent, meaning that the light waves have a constant phase and direction. This is critical for many applications, such as optical communication and high-resolution laser printing.
- Monochromaticity: Laser diodes emit light at a specific wavelength, allowing them to generate light of specific colors depending on the semiconductor material used. This is useful in applications such as barcode reading and color reproduction in laser printers.
- High output intensity: Laser diodes can generate high intensity light in a very small area, making them suitable for applications that require high power in a small space.
Laser diode applications:
-
- Optical Communication: Laser diodes are used in optical communication systems, such as fiber optic networks, to transmit data over long distances at high speed and with high reliability.
- Medicine: In medicine, laser diodes are used in applications such as laser surgery, photodynamic therapy, and the treatment of ophthalmic disorders.
- Electronics: Laser diodes are used in optical disc readers, data storage devices, optical sensors, and other electronic devices.
- Industry and Manufacturing: In industry and manufacturing, laser diodes are used in laser marking and cutting systems, laser welding, laser printing, and more.
In summary, laser diodes are semiconductor devices that generate high-intensity, coherent light, with a wide range of applications in communications, medicine, electronics, industry, and more. Their ability to generate light in an efficient and controlled manner makes them essential in numerous fields of modern technology.
Varicap Diode (Variable Capacitance Diode):
The varicap diode, also known as a variable capacitance diode or tuning diode or varactor diode, is a special type of semiconductor diode used to control the capacitance of a circuit as a function of the applied voltage. Its main application is in tuning and frequency adjustment circuits in radios, televisions, oscillators and other electronic devices.
Operating principle:
The varicap diode is based on the variable gap capacitance effect that occurs by varying the voltage applied at its p-n junction. When a reverse voltage is applied to the varicap diode, the width of the depletion zone (depletion zone) at the p-n junction changes. This in turn alters the capacity of the joint, which varies inversely to the applied voltage: the higher the reverse voltage, the lower the capacity; and the lower the reverse voltage, the higher the capacity.
Main features:
-
- Variable capacity: The main characteristic of the varicap diode is its ability to modify its capacity depending on the applied voltage. This makes it useful in tuning and frequency adjustment circuits.
- Non-linearity: The relationship between the applied voltage and the resulting capacity is not linear. As the reverse voltage increases, the capacity decreases, but this decrease is not proportional.
- Capacity range: Varicap diodes can have a wide range of capacities that can be controlled by the applied voltage. This allows fine adjustments to the frequency of a circuit, for example in a radio tuner.
Applications of varicap diode:
-
- Radio and television tuners: Varicap diodes are used in radio and television tuners to adjust the frequency of channel reception. By varying the voltage applied to the varicap diode, the resonant frequency of a tuning circuit can be changed, allowing the user to tune to different stations.
- Voltage Controlled Oscillators (VCO): Varicap diodes are used in voltage controlled oscillators to adjust the oscillation frequency. By varying the voltage applied to the varicap diode, the output frequency of the oscillator can be adjusted.
- Tunable Filters: Varicap diodes are used in tunable filters to adjust the cutoff frequency of the filter. By varying the voltage applied to the varicap diode, the cutoff frequency of the filter can be changed, allowing different signal frequencies to be filtered as required.
In summary, the varicap diode is a specialized semiconductor component used to control the capacitance of a circuit based on the applied voltage. Its variable capacitance capability makes it essential in tuning and frequency adjustment applications in a variety of electronic devices.
