CNDF TA12038HSL-2 - Axial Fan Cap 120 x 120 x 38 mm - 220 Vac

VE1A0A4

Available

Stock

Quantity

VAT NOT INCLUDED

VAT INCLUDED

9.57 €

11.58 €

Identification

EE Code VE1A0A4

Brand

Model TA12038HSL-2

Manufacturer code

EAN13

Features

This axial fan measuring 120x120x38 mm and operating at 220 VAC is the ideal solution for industrial and electronic applications requiring a consistent and efficient airflow in compact spaces. Built from high-quality materials, this 220V fan ensures excellent thermal dissipation and reliable performance even in demanding environments.

Its robust frame made from die-cast aluminium alloy and its high-resistance black PBT impeller (UL94V-0) make it perfect for cooling systems, electrical cabinets, control panels, telecommunication equipment, power supplies, and other electronic devices. Featuring a sleeve bearing, it offers an extended lifespan of up to 30,000 hours under optimal temperature and humidity conditions.

This axial fan 220V combines low noise levels with a high airflow rate, making it an efficient and quiet option. It complies with CE and RoHS safety standards, ensuring safe and environmentally responsible operation.

Specifications

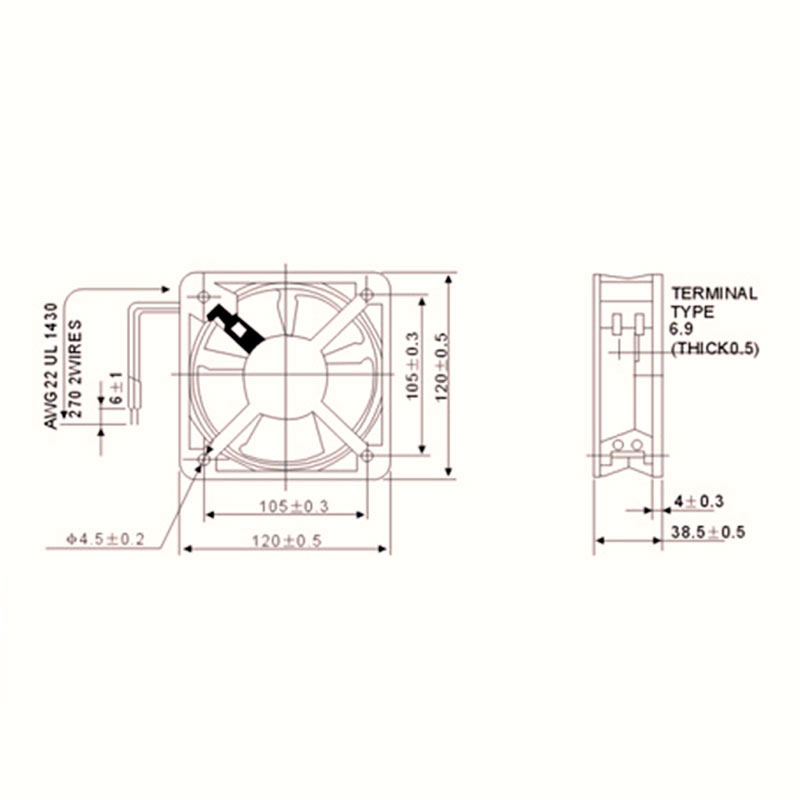

Dimensions: 120 x 120 x 38 mm
Operating voltage: 220/240 VAC
Frequency: 50 ~ 60 Hz
Current: 0.12 ~ 0.14 A
Power consumption: 20 ~ 25 W
Rotational speed: 2500 ~ 2900 RPM
Airflow: 87 ~ 108 CFM
Noise level: 46.5 ~ 52.6 dBA
Weight: 515 g
Frame material: High-quality painted die-cast aluminium alloy
Impeller: Black PBT (UL94V-0)
Bearing type: Sleeve Bearing
Insulation resistance: ≥ 100 MΩ at 500 VDC (between terminal and frame)
Dielectric withstand voltage: 1500 VAC for 1 second (between terminal and frame)
Operating temperature range: -20 ºC to 85 ºC (normal humidity)
Storage temperature range: -30 ºC to 140 ºC (normal humidity)
Expected lifespan: 30,000 hours at 25 ºC and 65% RH
Certifications: CE, RoHS
