Available

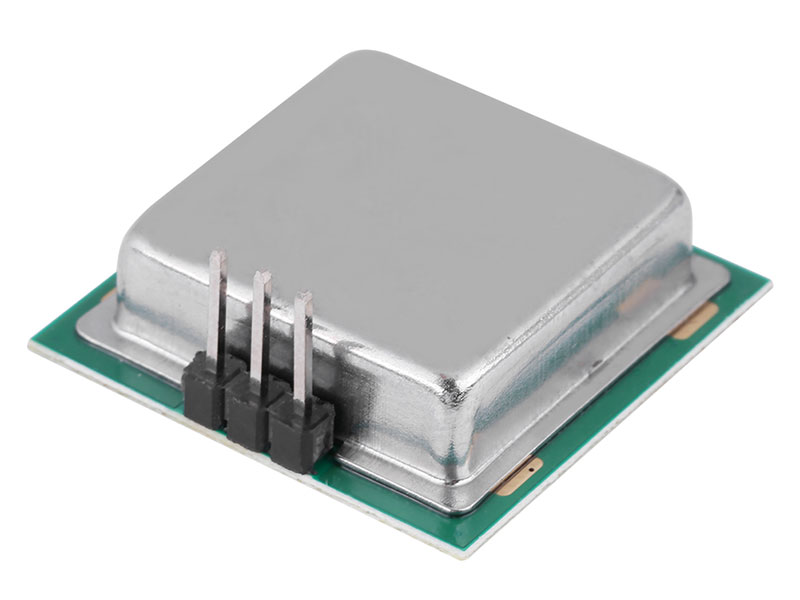

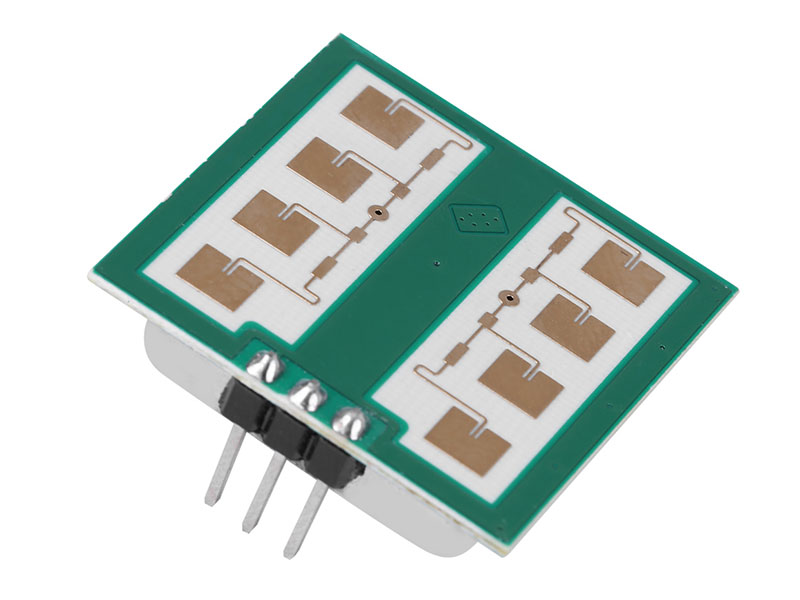

It is a radar movement sensor. The transmission frequency is 24GHz, and it has a wide range of applications.
Advanced low power PHEMT oscillator.
Long working distance up to 15 meters.
Independent transmit and receive circuit
Transmitting Frequency: min:24GHz typ:24.125GHz max:24.25GHz
Output Power:16dbm (typ)
Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32
Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB
Operating Temperature:-20~60℃
Operating Current: typ:30MA, max:40MA
Operating Voltage: typ:5.5V
Pulse Width: typ:10US
IF Output:-300~300MV
