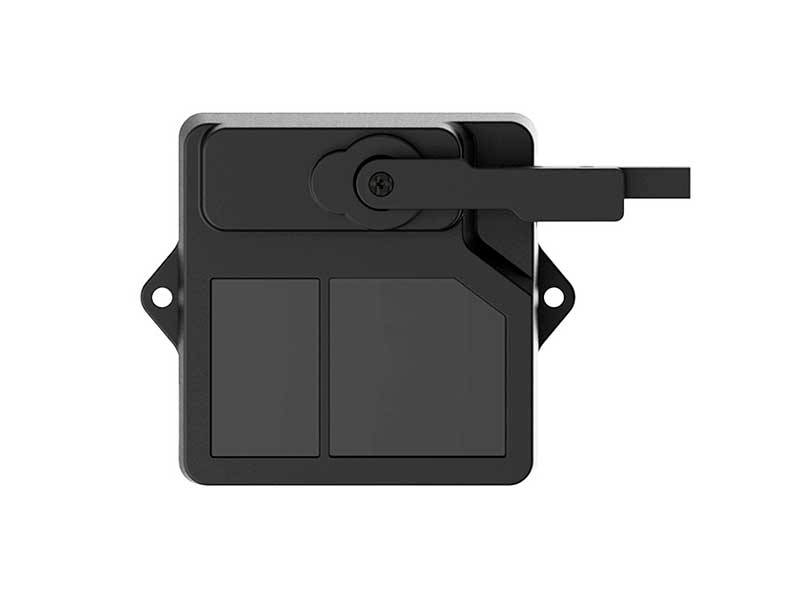

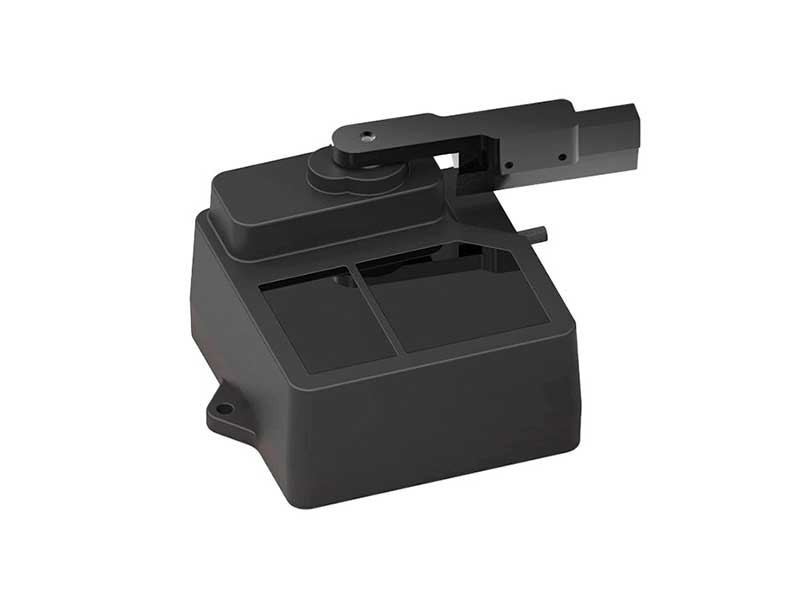

TF02-Pro-W is a single point ranging LiDAR specially developed for level detection, based on ToF principle, with 25m detection range and cm level detection accuracy. Supplied with a unique dust removal cleaning brush, which automatically cleans the LiDAR front panel lens regularly to solve dirt problems and can maintain range detection accuracy in dusty environment.
In this case, this reference is the version with UART/i2C protocol, although there is another version with RS-485 bus communications protocol, see related products
Power supply: 5 Vdc
Consumption: ≤2W
Current: ≤400 mA (1000 mA)
Range: 0.1 to 25 meters max (* depending on the reflectivity of the object to be detected)
Ambient light immunity: 100 Klux
Detection angle (FoV): 3°
Accuracy: ±6 cm (0.1 to 6 m) and ±1% (from 6 to 25 m)
Resolution: 1 cm
Wavelength: 850 nm
Frame rate: Adjustable 1..1000 Hz (default setting to 100 Hz)
UART Interface:
Baud rate: 115200
Data bits: 8
Stop bit: 1
Parity: none
I2C Interface:
Max transmission rate: 400kbps
Master/slave mode: slave
Default address: 0x10
Addres range: 0x01..0x7F
Operating temperature: -20°C to +60°C
Dimensions: 85 x 59 x 43 mm
Weight: 90 g
Cable length: 120 cm
