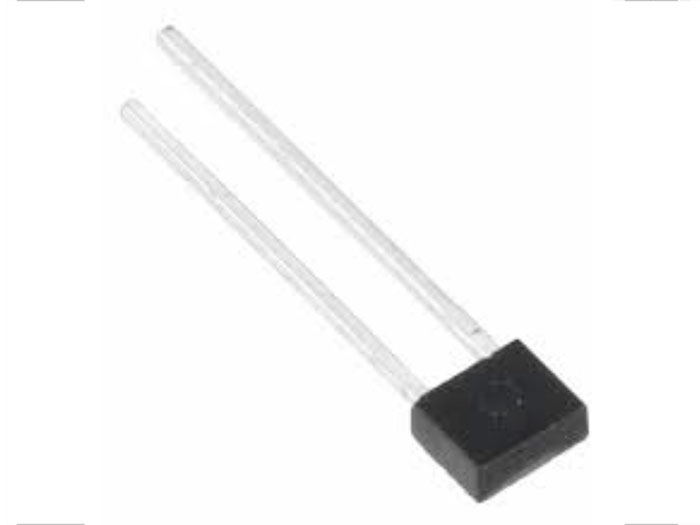

OP268FA Infrared emitting diode
Flat lens for wide radiation angle (OP168, OP268)
Integral lens for narrow beam angle (OP169, OP269)
Easily stackable on 0.100” (2.54 mm) hole centers
Mechanically and spectrally matched to other OPTEK Devices
Wavelength: 890 nm
Radiant intensity: 0.64 mW / cm2
Beam angle: 104º
If - Current: 20 mA
Vf - Voltage: 1.5 V
Power: 100 mW
Minimum operating temperature: - 40 C
Operating temperature maximum: + 100 C
Lighting color: Infrared
Brand: Optek
Fall time: 250 ns
Establishment time: 500 ns
