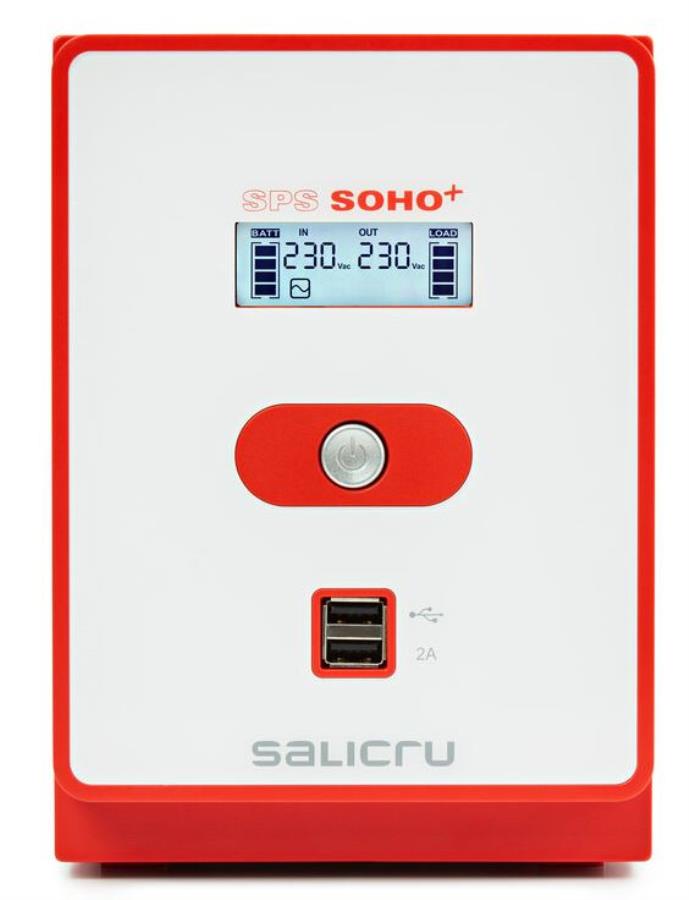

1200 VA Line-interactive Uninterruptible Power Supply (UPS) with double USB charger
Optimal electrical protection for office environments and systems
Technical specifications
TECHNOLOGY: Line - interactive
FORMAT: Tower
INPUT: Nominal voltage 230 V
Voltage range: 162 ÷ 290 V
Stabilizer: AVR (Buck & Boost)
Nominal frequency: 50/60 Hz (auto-sensing)
Frequency auto detection: Yes
Protection: Resettable thermal
OUTPUT: Nominal voltage 230 V
Voltage accuracy (battery mode): ±10%
Power (VA/W): 1200 / 720
Power (VA): 1200
Waveform (battery mode): Pseudosine
Frequency: 50/60 Hz (same as input)
Frequency accuracy (battery mode): ±1Hz
APFC load compatibility: Yes

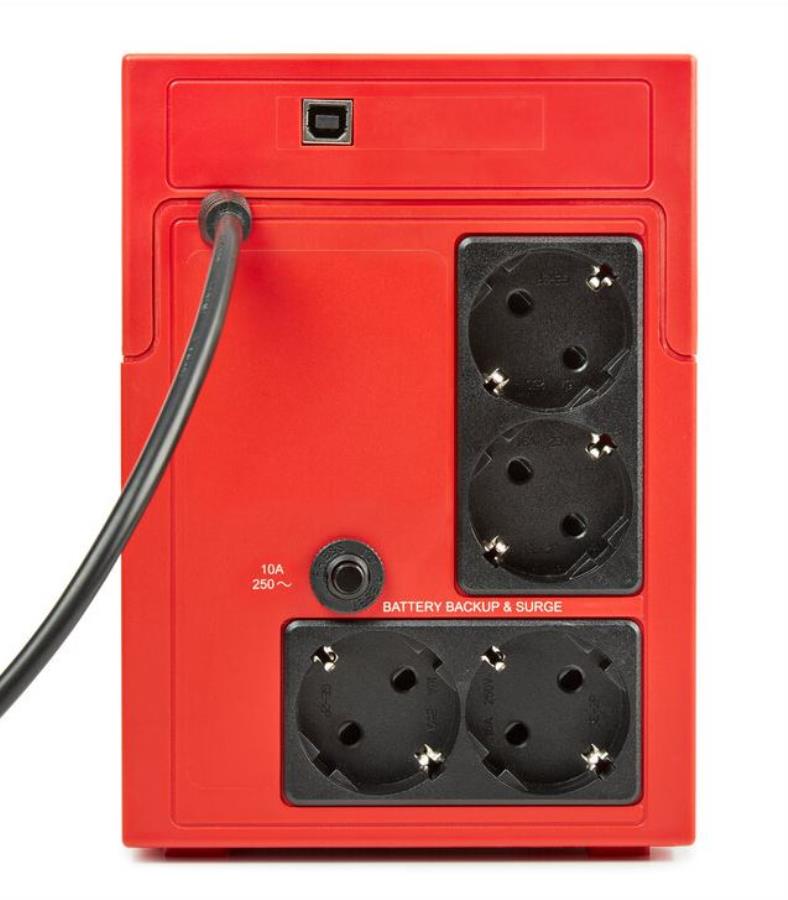

Socket type: Schuko
No. outputs: 4
Protection: Against deep discharge, against short circuit by fuse
Battery type: Sealed Pb-Ca, AGM, maintenance-free
Recharge time: 2-4 hours at 90%
COMMUNICATION
Ports: USB (HID protocol)
Monitoring software: For Windows, Linux and Mac family
INDICATIONS
Type: LCD
Values: Input and output voltage / Input and output frequency / Battery voltage / % charge
Levels: Connected load / Overload / Battery / Low battery
Operating modes: Normal / Stabilization (AVR) / Battery / Fault
OTHER FUNCTIONS
Cold-start: Yes
Automatic restart: Yes, after end of autonomy
USB CHARGER
Quantity: 2 ports
Voltage: 5 Vdc
Maximum current: 2.0 A
GENERAL
Working temperature: 0º C ÷ +40º C
Relative humidity: Up to 95%, non-condensing
Maximum working altitude: 2400 m.a.s.l.
Acoustic noise at 1 meter: <40 dB
NORMATIVE
Safety: EN-IEC 62040-1
Electromagnetic Compatibility (EMC): EN-62040-2
Operation: EN-62040-3
Corporate certifications: ISO 9001, ISO 14001, ISO 45001
DIMENSIONS
Depth 364mm
Width 139mm
Height 195mm
Weight 10.4kg
SA81OI120
