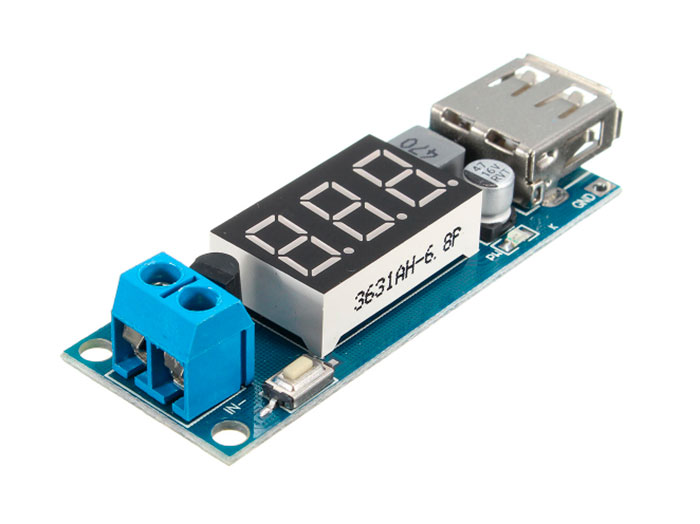

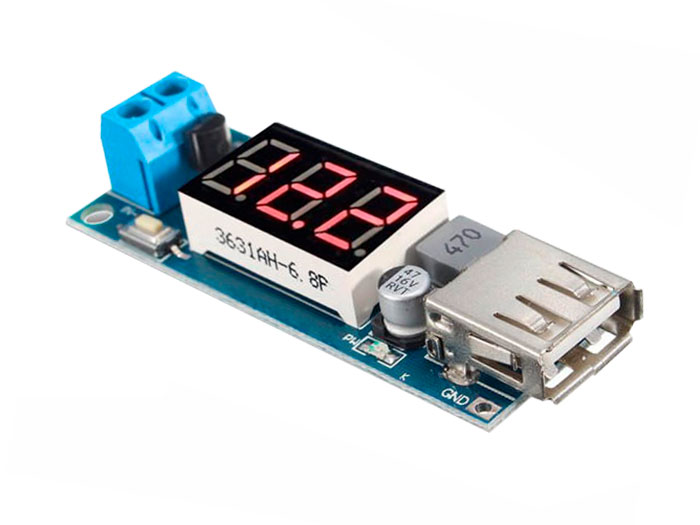

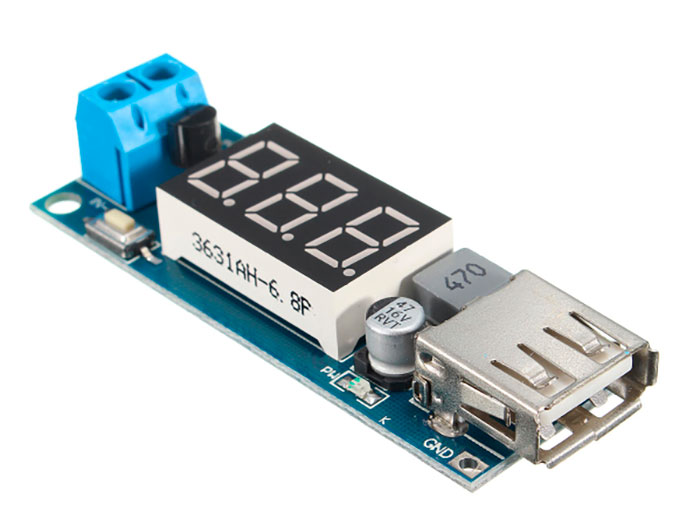

Converter DC-DC - In: 4,5 .. 40 V - Out: 5 V - 2 A - Built-In Voltmeter

Ref. SA31375

Converter DC-DC - In: 4,5 .. 40 V - Out: 5 V - 2 A - Built-In Voltmeter
Converter DC-DC - In: 4,5 .. 40 V - Out: 5 V - 2 A - Built-In Voltmeter
Converter DC-DC - In: 4,5 .. 40 V - Out: 5 V - 2 A - Built-In Voltmeter
Converter DC-DC - In: 4,5 .. 40 V - Out: 5 V - 2 A - Built-In Voltmeter
Disponible Available
Stock
Quantity
4

Built-In Voltmeter

Features
  • This is a DC /DC reductor voltage regulator. It converts from 4.5 - 40 V input voltage to 5 V, current up to 2A with excellent line and load regulation.
  • Voltage range up to 40 V
  • Output voltage: 5 V (when the input voltage is between 6.5 V ~ 40 V)
  • Built-in input voltage voltmeter
  • Over current protection
  • Over temperature protection
  • Protection against reverse polarity
  • Output load current up to 2 A
  • Precise potentiometer for voltage adjustment
  • Voltage enable button on the output
  • Push button to activate ultra low consumption
  •
    Specifications
  • Input voltage: 4.5V - 40 Vdc
  • Output voltage: 5 Vdc
  • Max. Output current: 2 A
  • Size: 58 x 21 x 10 mm (L x W x H)
  •
    Price
    VAT INCLUDED
    4.50
