Powerful nylon fixation with four expansion ways, with flange for optimal fixation.
Optimal force transmission thanks to 4-way expansion. This allows higher loads to be held in solid and hollow materials.
Easy to assemble: the edge of the plug prevents the plug from fully going into the drill hole.
There is no expansion pressure on the neck of the plug. This means no damage to tiles or plaster

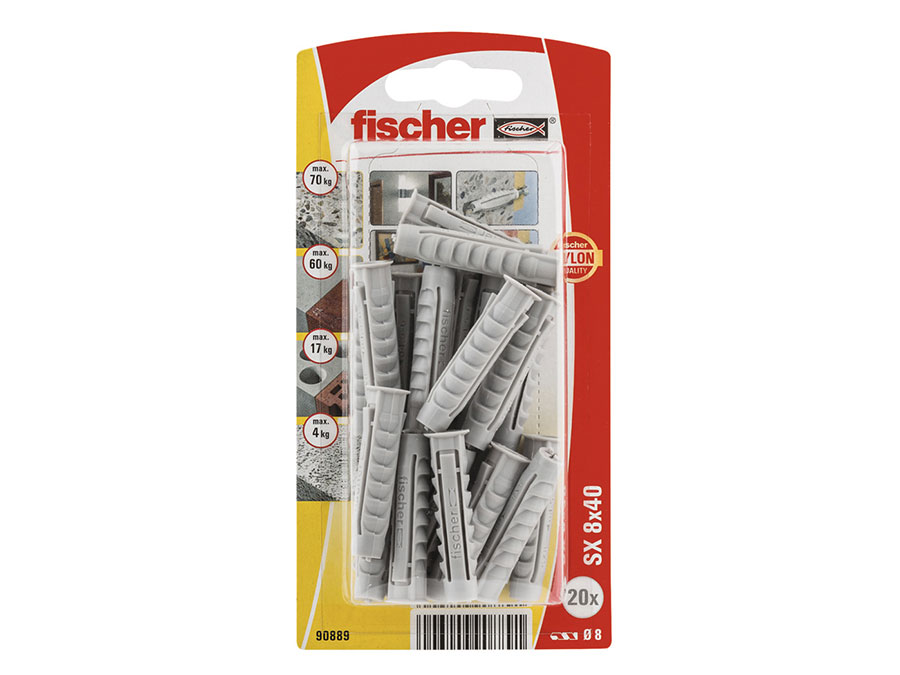

Due to the 4-sided expansion, Fischer's SX expansion fastener optimally transfers forces to the building material. The high quality nylon used in its production and its typical expansion guarantee a secure and permanent connection. The flange on the fixing head prevents the plug from slipping into the hole of the drill. The SX expansion plug is the best option for fixing lamps, bathroom fixtures, light cabinets.
Advantages:
Expansion of 4-way provides optimal force distribution within the material, and offers high load capacities in solid and hollow building materials.
Expansion-free connector neck prevents the creation of expansion forces on the material surface while screwing in the screw. This helps prevent damage to tile and plaster.
The sharp edge prevents the connector from sliding into the hole, allowing for easy installation.
The greater anchoring depth of the SX 6x50, 8x65 and 10x80 means that the connector is especially suited to fastenings in hollow building materials, aerated concrete and plaster.

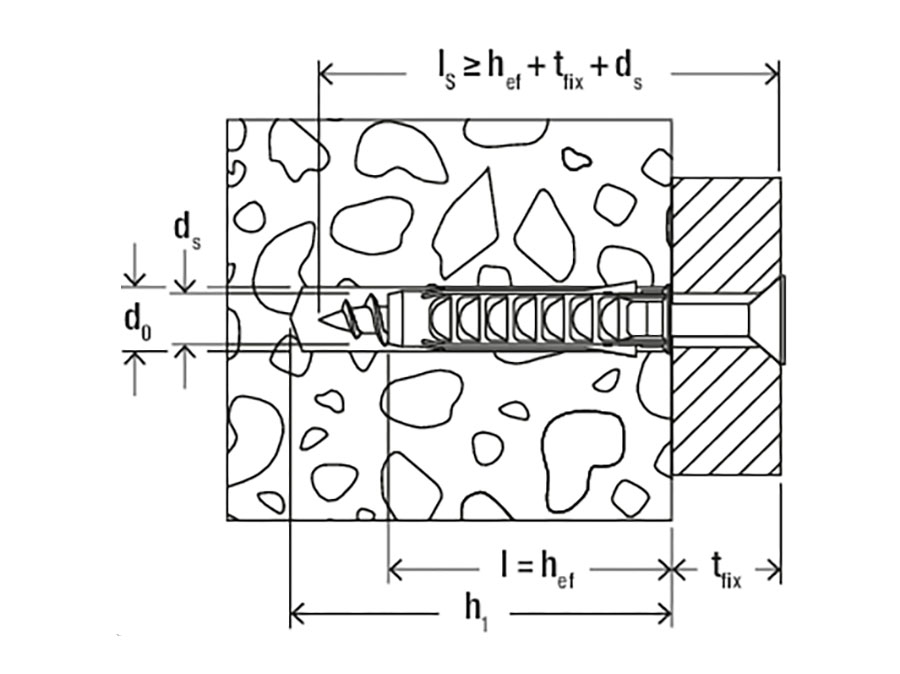

Hole diameter: 8 mm
Min. Hole depth
Anchor length: 40 mm
Diameter of wood and chipboard screws: 4.5 .. 6 mm
