4WD Chassis 37 mm Geared Motors - Silver

ROBT062

4WD Chassis 37 mm Geared Motors - Silver

4WD Chassis 37 mm Geared Motors - Silver

4WD Chassis 37 mm Geared Motors - Silver

4WD Chassis 37 mm Geared Motors - Silver

4WD Chassis 37 mm Geared Motors - Silver

4WD Chassis 37 mm Geared Motors - Silver

Consultar plazo

Sold out. We can let you know when it is available.

Quantity

VAT NOT INCLUDED

VAT INCLUDED

135.50 €

163.96 €

Identification

EE Code ROBT062

Brand

Model

Manufacturer code

EAN13

Features

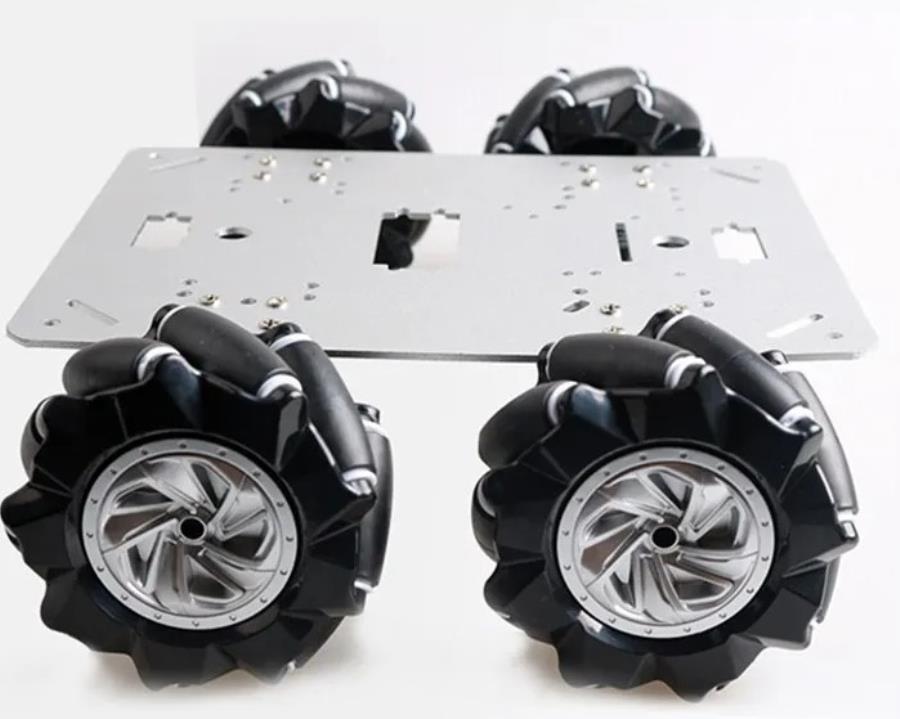

4WD chassis with independent gear motor for each wheel for load weights between 5 and 10 Kg.
- Material: Aluminum Alloy
- Silver colour
- Thickness: 3mm
- Dimensions: 200 x 300mm
- Total weight: 1 Kg
Wheel:
- Model: Mecanun Wheel
- Units: 4
- Diameter: 80mm
- Thickness: 37mm
- Number of rollers or associated per wheel: 9
- Supported load: 10 Kg (for the 4 wheels)

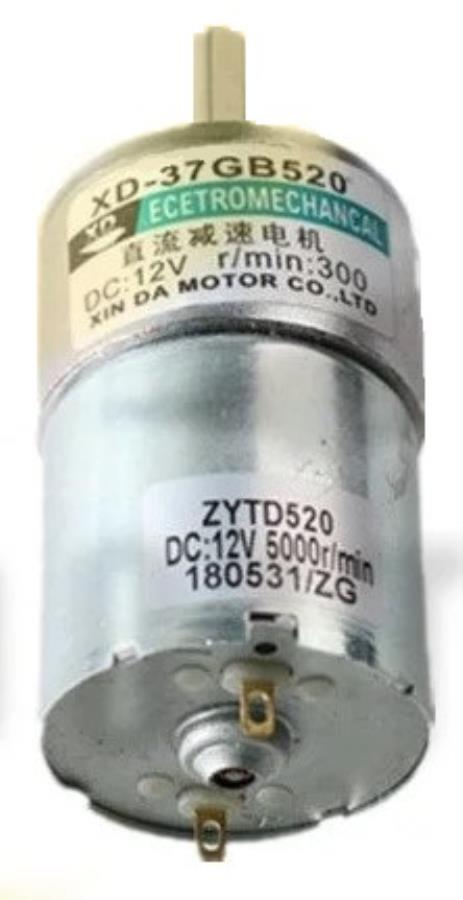

Engine: XYTD520
- Vcc: 12V
- Rpm: 5000
Reducer:
- Model: XD-37GB520
- rpm: 300
- Reduction ratio (1:00): 16.6
- Length: 24mm
- Without load or weight:
  - minimum rpm: 300
  - Current: 0.17A
- With load:
  - minimum rpm: 245
  - Intensity: 0.68 A
  - Nominal torque (Kg/cm): 1.8
  - Stop torque (Kg/cm): 5
  - Stop current: 2.19 A
