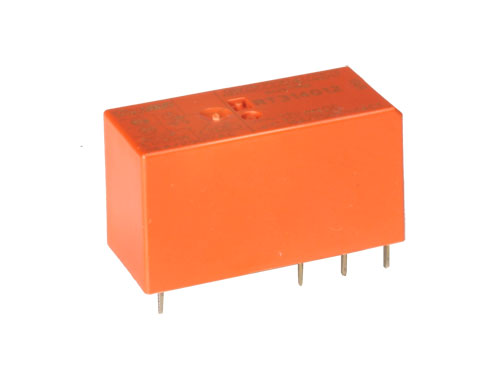

The TE Connectivity RT314012 is a general-purpose electromechanical power relay from the SCHRACK RT1 series, designed for printed circuit board mounting. It uses a monostable 12 V DC coil and provides one 1 Form C changeover contact (SPDT / 1 CO), giving access to both normally open and normally closed switching through a common terminal.
This version is rated for a nominal contact current of 16 A and uses AgNi 90/10 silver-nickel contacts. The rated contact voltage is 250 V AC and the maximum switching voltage specified by the manufacturer is 400 V AC. Permissible switching capacity depends on the load type and operating conditions, so the 16 A rating should not be treated as a universal value for every load.
The relay provides reinforced insulation between the coil and contacts, with an initial dielectric strength of 5000 V RMS and clearance and creepage distances of at least 10 mm. The RT314012 is a through-hole THT version with solder pins and RTII environmental protection, providing flux-proof construction suitable for wave soldering.
The operating temperature range with a DC coil is −40 to 85 °C. Applications stated by the manufacturer for the series include boiler control, timers, garage-door control, point-of-sale automation and interface modules.
| Brand | TE Connectivity |
| Model | RT314012 |
| Manufacturer part number | 9-1393239-5 |
| Series | SCHRACK RT1 |
| Type | General-purpose electromechanical power relay |
| Magnetic system | Monostable |
| Coil type | DC |
| Rated coil voltage | 12 V DC |
| Coil operate voltage | 8.4 V DC at 23 °C, without pre-energisation |
| Coil release voltage | 1.2 V DC at 23 °C, without pre-energisation |
| Coil resistance | 360 Ω ±10 % |
| Rated coil power | 400 mW |
| Coil insulation | UL Class F |
| Number of poles | 1 |
| Contact arrangement | 1 Form C (SPDT / 1 CO) |
| Contact material | AgNi 90/10 |
| Rated contact current | 16 A |
| Limiting continuous contact current | 16 A |
| Limiting making current | 30 A |
| Rated contact voltage | 250 V AC |
| Maximum switching voltage | 400 V AC |
| Maximum switching capacity | 4000 VA |
| Maximum operate time | 8 ms |
| Maximum release time | 6 ms |
| Initial dielectric strength between open contacts | 1000 V RMS |
| Initial dielectric strength between coil and contacts | 5000 V RMS |
| Clearance / creepage between coil and contacts | ≥10 / 10 mm |
| Mounting type | PCB, through-hole (THT) |
| Terminal type | Solder pins |
| Environmental protection category | RTII, flux proof |
| Soldering process | Wave soldering |
| Operating temperature | −40 to 85 °C |
| Mechanical endurance | >30 × 106 operations |
| Dimensions | 29 × 12.7 × 15.7 mm |
| Weight | 14 g |
| Approvals | VDE, cULus, cCSAus and CQC |
