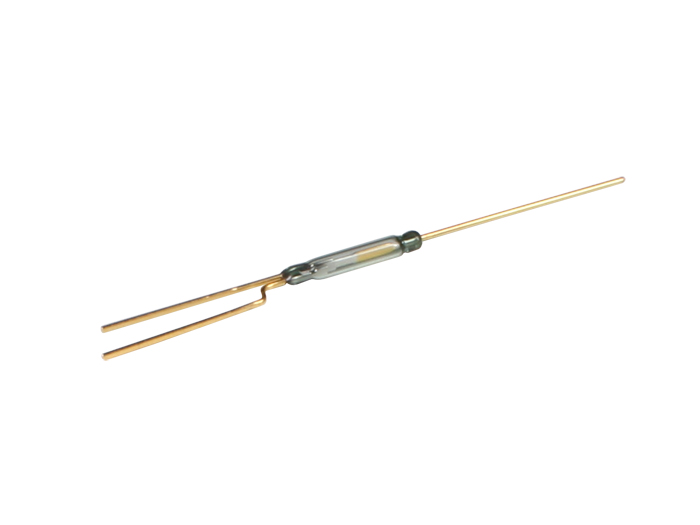

Reed Switch - 2-Way

Ref. RL11108

Reed Switch - 2-Way
Disponible Available
Stock
Quantity
17
Features
Reed ampoule with switched contact, has one contact open and one closed


Specifications
Maximum switching current: 1 A

Power: 20 W

Working temperature: -20 ... 130°C

Maximum voltage: 175 V

Measuring range: 15 … 30 AT

Contact configuration: SPDT

Bulb length without terminals : 14 mm

Diameter: 2.54 mm



Data sheet

Price
VAT INCLUDED
2.20
SPECIAL PRICE 1.94€ (For quantity order over 10 pìeces)
SPECIAL PRICE 1.65€ (For quantity order over 100 pìeces)
