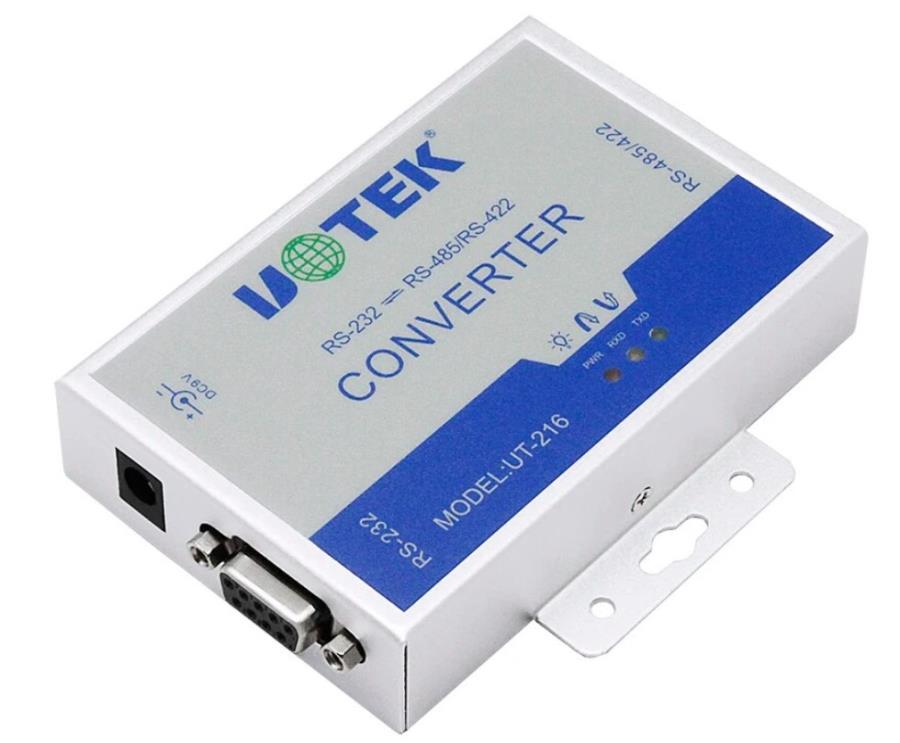

UOTEK UT-2016 - RS-232 to RS-485/422 Optoelectronic Isolated Converter with Lightning Surge Protection

PC70305

UOTEK UT-2016 - RS-232 to RS-485/422 Optoelectronic Isolated Converter with Lightning Surge Protection

UOTEK UT-2016 - RS-232 to RS-485/422 Optoelectronic Isolated Converter with Lightning Surge Protection

UOTEK UT-2016 - RS-232 to RS-485/422 Optoelectronic Isolated Converter with Lightning Surge Protection

UOTEK UT-2016 - RS-232 to RS-485/422 Optoelectronic Isolated Converter with Lightning Surge Protection

UOTEK UT-2016 - RS-232 to RS-485/422 Optoelectronic Isolated Converter with Lightning Surge Protection

UOTEK UT-2016 - RS-232 to RS-485/422 Optoelectronic Isolated Converter with Lightning Surge Protection

Consultar plazo

Sold out. We can let you know when it is available.

Quantity

VAT NOT INCLUDED

VAT INCLUDED

84.42 €

102.15 €

Identification

EE Code PC70305

Brand

Uotek

Uotek

Model UT-2016

Manufacturer code UT-2016

EAN13

Features

RS-232 to RS-485/422 Optoelectronic isolated converter with lightning surge protection

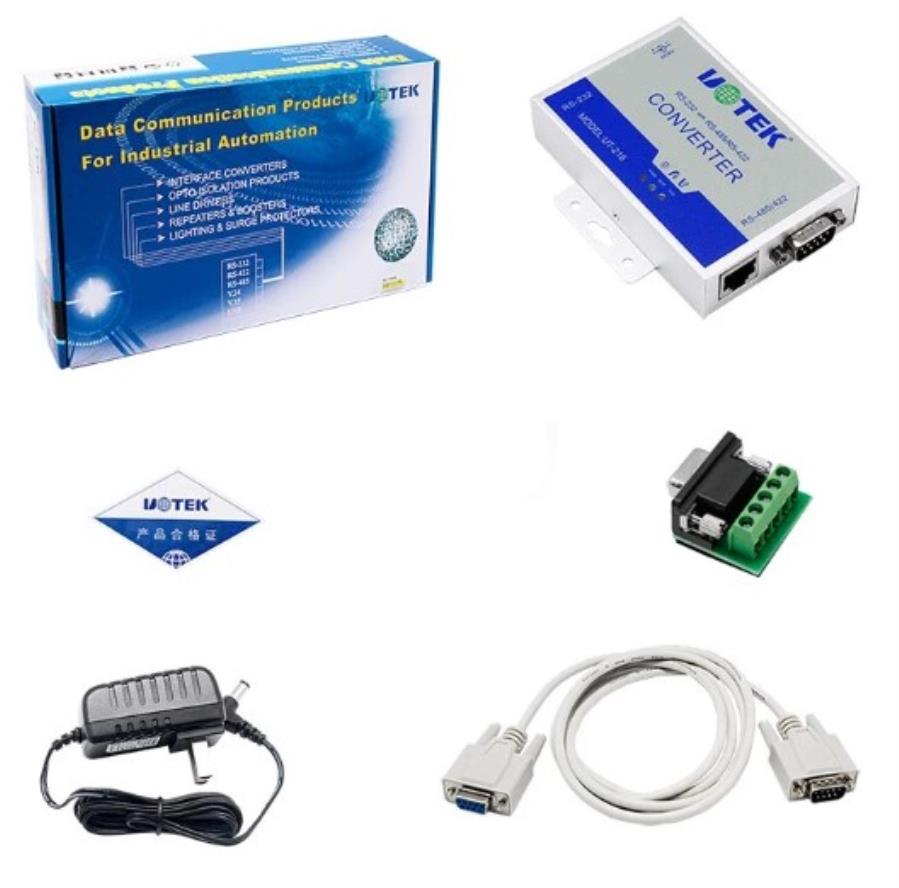

Includes adapter PCB for RS-485/422 ports

Specifications

Standards: RS-232C EIA/TIA, RS-485/422
RS-232 DB9 female connector, RS-485/422 DB9 male connector
Protection: RS-422/485 each wire 600W lightning surge protection
Isolation: isolated voltage 2500Vrms 500DC continuous
Operating mode: asynchronous full-duplex or half-duplex
Indication: PWR, TXD, RXD
Transmission Media: Twisted-pair or shielded cable
Baud rate: 115.2kbps to 300m
- 38.4kbps to 600m
- 9,600bps to 1.2km
Dimension: 107mm×87mm×22mm
Operating temperature: -25 ~ 70℃
Relative humidity: 5 ~ 95%
Transmission distance: 0-1,200m
