Sold out. We can let you know when it is available.

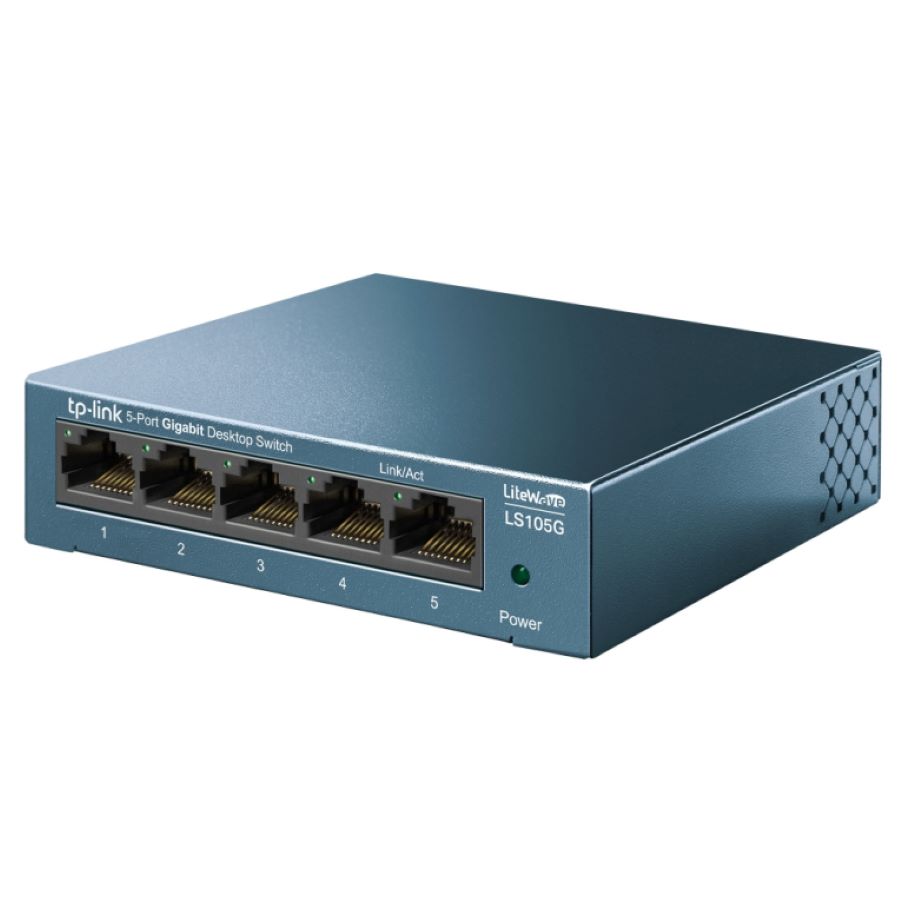

5-port and Gigabit managed switch with 2000 MAC table entry capacity
PORTS AND INTERFACES
Number and type of basic RJ-45 Ethernet switching ports: 5 Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper), number of ports: 5
CONNECTION
10G Support: No
Auto MDI / MDI-X: Yes
Auto-negotiation: Yes
Network standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
POWER CONTROL
Power consumption (max): 2.776 W
Input current: 0.6 A
Power source: DC
Power supply included: Yes
Input voltage: 5 V
ENVIRONMENTAL CONDITIONS
Heat dissipation: 9,466 BTU/h
Operating temperature range: 0 - 40 °C
Storage temperature range: -40 - 70 °C
Humidity range relative humidity for operation: 10 - 90%
Relative humidity range during storage: 5 - 90%
WEIGHT AND DIMENSIONS
Height: 25.1 mm
Width: 99.8 mm
Depth: 98 mm
PACKAGING
Package height: 92 mm
Package width: 128 mm
Quick setup guide: Yes
Package depth: 125 mm
DATA TRANSMISSION
Capacity switching rate: 10 Gbit/s
Jumbo Frames, support: Yes
Jumbo frames: 16000
MAC address table: 2000 entries
Packet buffer: 1 MB
Forwarding rate: 7.4 Mpps
MANAGEMENT FEATURES
Quality of Service (QoS) support: Yes
Switch type: Unmanaged
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE): No
DESIGN:
Certification: CE, FCC, RoHS
Product color: Blue
LED indicators: Activity, LAN, Power
Housing material: Metal
Rack mount: No
Wall Mount: Yes
