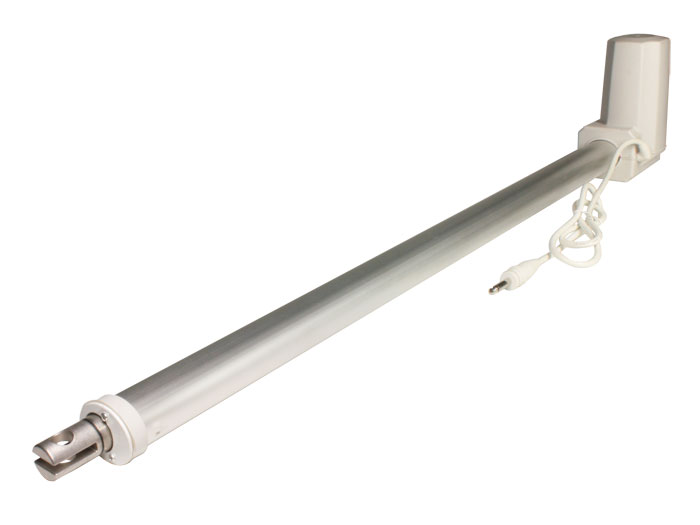

The entire housing is sealed to provide protection against water vapor and dust: the manufacturer provides a degree of protection IP44
They use an endless screw to move the bar from one side to the other along its displacement.
The worm ensures that the shaft will be in its position even when it is not driven.
Two safety limit switches stop the Motor at both ends of its range, while the diodes allow the direction to reverse after reaching a limit point.
Temperature range: -26 º to 60 º C
Protection class IP44
Power supply: 24 vdc
Stroke: 500 mm
Speed: 6.5 mm ± 2mm / s
Internal microswitch
Steel gear
Maximum traction strength: 4000 N
Maximum thrust force: 6000 N
Maximum service life: 10,000 times
6.3 mm male jack connector with 2 contacts
