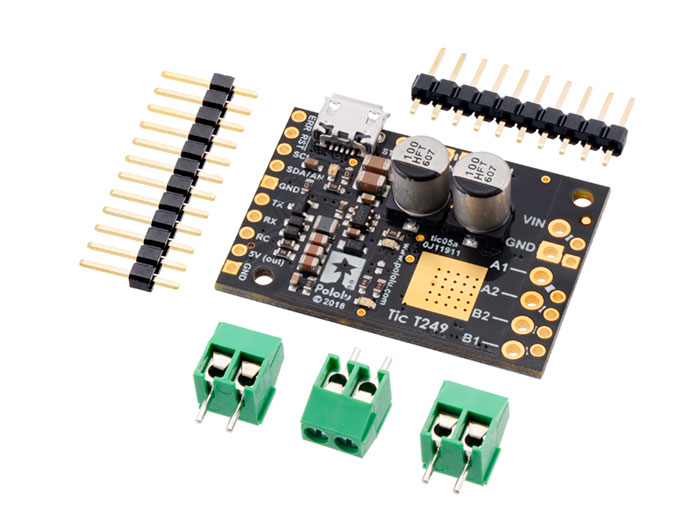

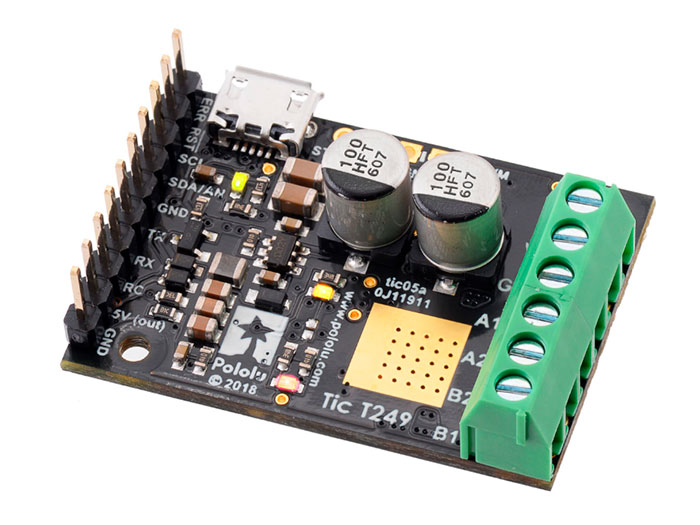

The Tic T249 USB Multi-Interface Stepper Motor Controller makes basic control of a stepper Motor easy, with quick configuration over USB using free Polulu software. The controller supports six control interfaces: USB, TTL serial, I²C, analog voltage (potentiometer), quadrature encoder, and hobby radio control (RC). This version incorporates a Toshiba TB67S249FTG driver with innovative and unique features that include Automatic Gain Control, and male headers and terminal blocks are included but not soldered. It can operate from 10 V to 47 V and can deliver up to approximately 1.8 A per phase without a heat sink or forced air flow (or 4.5 A max with sufficient additional cooling).

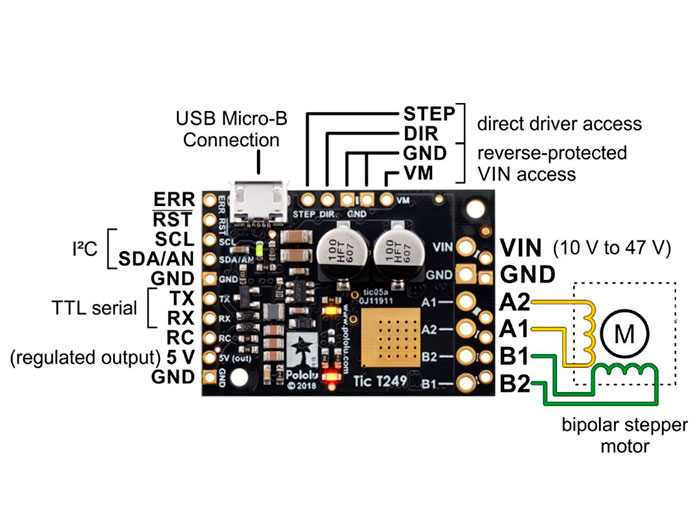

The Tic family of stepper Motor controllers makes it easy to add basic control of a bipolar stepper Motor to a variety of projects. These versatile, general-purpose modules support six different control interfaces: USB for direct connection to a computer, TTL serial and I²C for use with a microcontroller, RC hobby servo pulses for use in an RC system, analog voltages for use with a potentiometer or analog joystick, and quadrature encoder for use with a rotary encoder dial. They also offer many settings that can be configured using a free configuration utility (for Windows, Linux, and macOS). This software simplifies initial setup of the Device and allows for in-system testing and monitoring of the controller via USB.

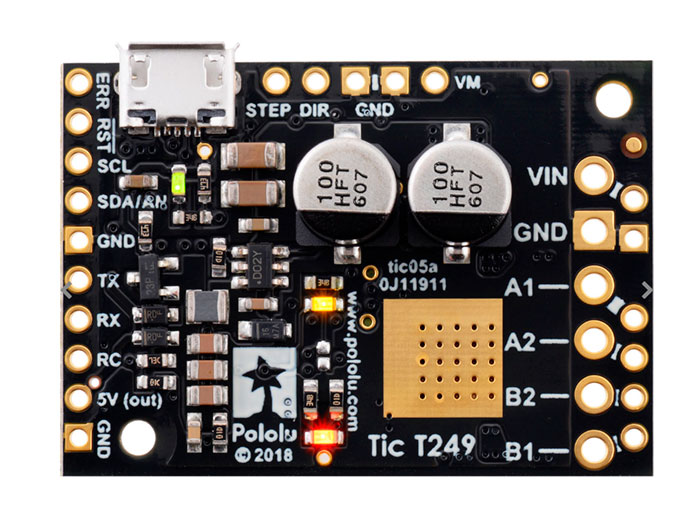

Model: Tic T249
Engine Controller: TB67S249FTG
Control Interface:
USB
Series TTL not inverted
I²C
RC Pulse Servers
Quadrature encoder for use with a rotary encoder selector
Minimum operating voltage: 10 V
Maximum operating voltage: 47 V
DC Current per phase: 1.8 A
Maximum Current per phase: 4.5 A
Maximum frequency of steps: 50000 PPS
Resolutions Microstep:
Complete
Not circular 1/2
Circulars 1/2, 1/4, 1/8, 1/16 and 1/32
