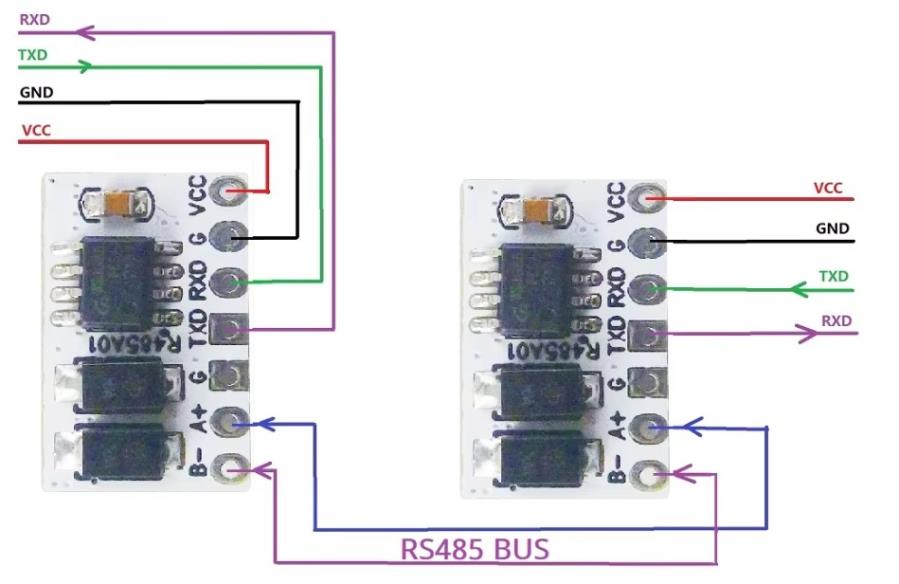

RS232 UART TTL to RS485 Converter Module Modbus / Profibus / CAN / LonWorks / Smart Home

LCHR233

RS232 UART TTL to RS485 Converter Module Modbus / Profibus / CAN / LonWorks / Smart Home

RS232 UART TTL to RS485 Converter Module Modbus / Profibus / CAN / LonWorks / Smart Home

RS232 UART TTL to RS485 Converter Module Modbus / Profibus / CAN / LonWorks / Smart Home

RS232 UART TTL to RS485 Converter Module Modbus / Profibus / CAN / LonWorks / Smart Home

Consultar plazo

Sold out. We can let you know when it is available.

Quantity

VAT NOT INCLUDED

VAT INCLUDED

10.00 €

12.10 €

Identification

EE Code LCHR233

Brand

Model

Manufacturer code

EAN13

Features

RS485 to UART (TTL) conversion module with the following features:

Incorporates a high-speed switch
Automatic switching between sending and receiving
No additional control port required
Can support up to 256,000 Bps.
RS485 interface with TVS surge protection.

Specifications

Working voltage: 3.3-5 Vdc
Working current: 5-50 mA
TTL level: 3.3V/5 Vdc
ESD protection: ±18 KV
Receiver fail-safe: Yes
Overvoltage protection: 6.5 V
Allows up to 256 transceivers on the bus
Supported baud rate range: 100 to 256,000 bps
Pin pitch: 2.54 mm
Operating temperature: -40-85℃
Size: 17.8 x 11.5 x 4.0 mm
Weight: 0.9 g
