No timer is universal, except this one. 2 reasons why this timer is truly universal: 1. The timer supports a wide variety of operating modes. 2. If the built-in modes or delays do not suit your application, you can tailor them to your needs using the supplied PC software.
10 operating modes:
toggle mode
start/stop timer
staircase timer
trigger-at-release timer
timer with turn on delay
timer with turn off delay
single shot timer
pulse-pause timer
pause-pulse timer

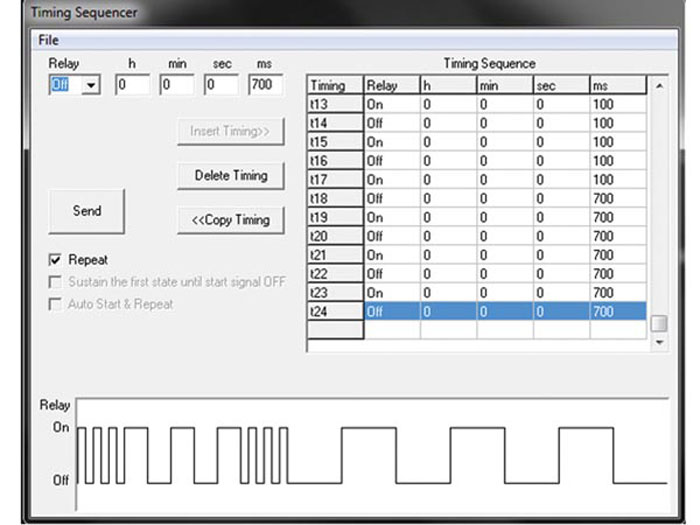

custom sequence timer
wide timing range

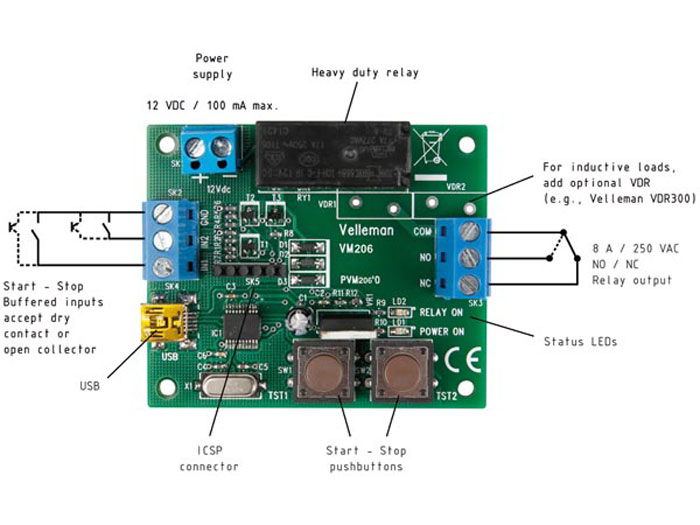

buffered inputs for external START / STOP buttons
heavy duty relay

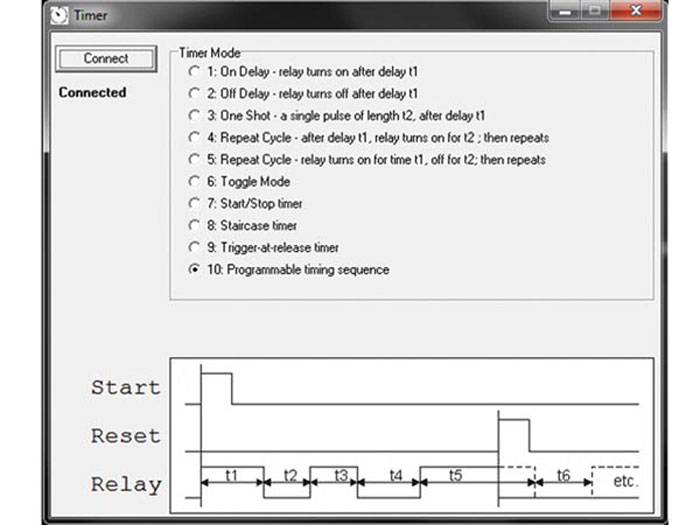

PC software for timer configuration and delay setting
open source
power supply: 12 VDC (100 mA max.)
relay output: 8 A / 250 VAC max.
minimum event time: 100 ms
maximum event time: 1000 h (over 41 days)
dimensions: 68 x 56 x 20 mm (2.6" x 2.2" x 0.8")
