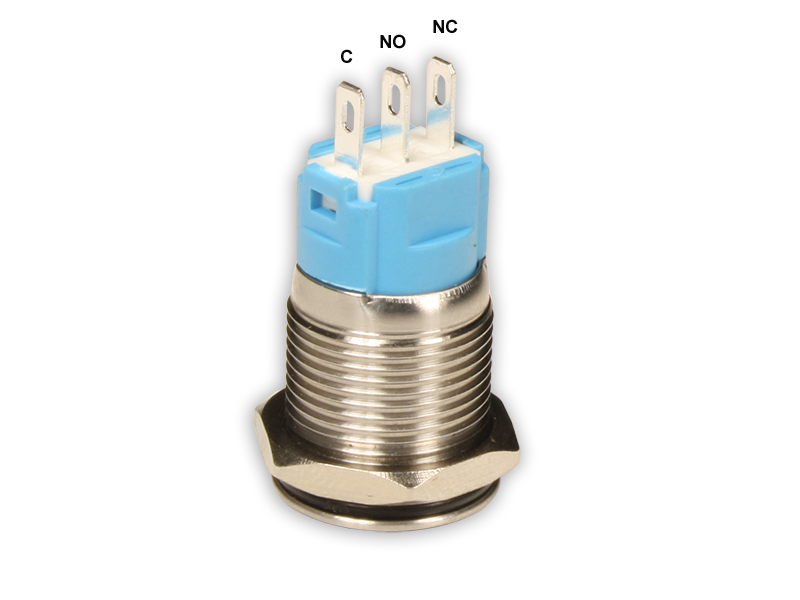

SWITCHTRONIX Serie 40 - Silver-Plated Panel-Mount Push Button - Interlocked - 1NO + 1NC

IT4A41M

SWITCHTRONIX Serie 40 - Silver-Plated Panel-Mount Push Button - Interlocked - 1NO + 1NC

SWITCHTRONIX Serie 40 - Silver-Plated Panel-Mount Push Button - Interlocked - 1NO + 1NC

SWITCHTRONIX Serie 40 - Silver-Plated Panel-Mount Push Button - Interlocked - 1NO + 1NC

SWITCHTRONIX Serie 40 - Silver-Plated Panel-Mount Push Button - Interlocked - 1NO + 1NC

SWITCHTRONIX Serie 40 - Silver-Plated Panel-Mount Push Button - Interlocked - 1NO + 1NC

SWITCHTRONIX Serie 40 - Silver-Plated Panel-Mount Push Button - Interlocked - 1NO + 1NC

SWITCHTRONIX Serie 40 - Silver-Plated Panel-Mount Push Button - Interlocked - 1NO + 1NC

SWITCHTRONIX Serie 40 - Silver-Plated Panel-Mount Push Button - Interlocked - 1NO + 1NC

Disponible

Available

Stock

Quantity

74

VAT NOT INCLUDED

VAT INCLUDED

4.60 €

5.57 €

>=5 Pcs

4.14 €

5.01 €

>=25 Pcs

3.68 €

4.45 €

>=100 Pcs

3.22 €

3.90 €

Identification

EE Code IT4A41M

Brand

swichtronix

swichtronix

Model Serie 40

Manufacturer code

EAN13

Features

Vandal-proof push button with metal body in stainless steel

Contact with interlock: one press on, another press off,...

Specifications

Type of operation:
- manteined
Rated current:
- 5A / 250V
Contact type:
- 1NO + 1NC
Mechanical life:
- >200,000 times
Electrical life:
- >100,000 times
Contact resistance:
- <50mΩ
Contact material:
- Silver
Working temperature
- --30ºC .. +65ºC
Installation diameter:
- 16mm
Type of connection:
- Solder terminals, or 2.8mm faston connector or full socket
IP protection degree:
- IP66
