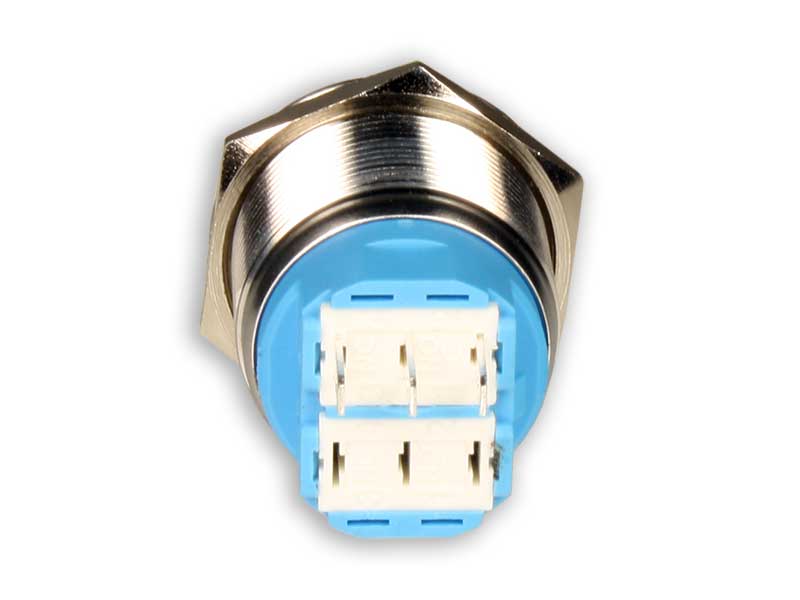

SWITCHTRONIX Serie 22 - Anti-vandal Panel Pushbutton Without Interlocking - IP66 - Ø22 mm - 1NO + 1NC

IT4A220

Data sheet

Data sheet

Available

Stock

Quantity

VAT NOT INCLUDED

VAT INCLUDED

4.90 €

5.93 €

>=10 Pcs

4.41 €

5.34 €

>=50 Pcs

3.92 €

4.75 €

>=100 Pcs

3.43 €

4.15 €

Identification

EE Code IT4A220

Brand

swichtronix

Model Serie 22

Manufacturer code

EAN13

Features

Anti-vandal pushbutton with stainless steel metallic body with non-illuminated thread

Momentary or non-latching contact (activates when the NO contact is pressed and deactivates when released). The NC contact remains connected to the common at rest and is deactivated when pressed.

Specifications

Operation type:
- momentary
Rated current:
- 5A / 250V
Contact type:
- 1NO + 1NC
Mechanical life:
- >200,000 times
Electrical life :
- >100,000 times
Contact resistance:
- <50mΩ
Contact material:
- Silver plated
Working temperature
- -30ºC .. +65ºC
Diameter installation:
- 22mm
Connection type:
- Solder terminals, or 2.8mm faston connector or complete socket
IP protection degree:
- IP66
