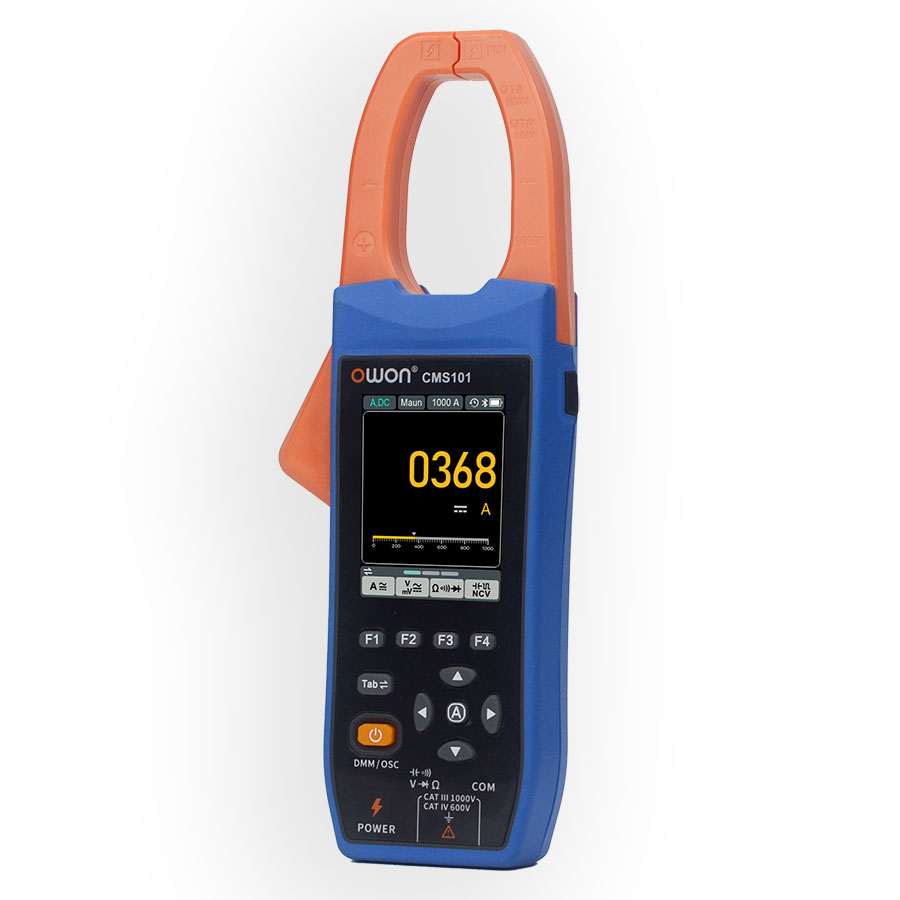

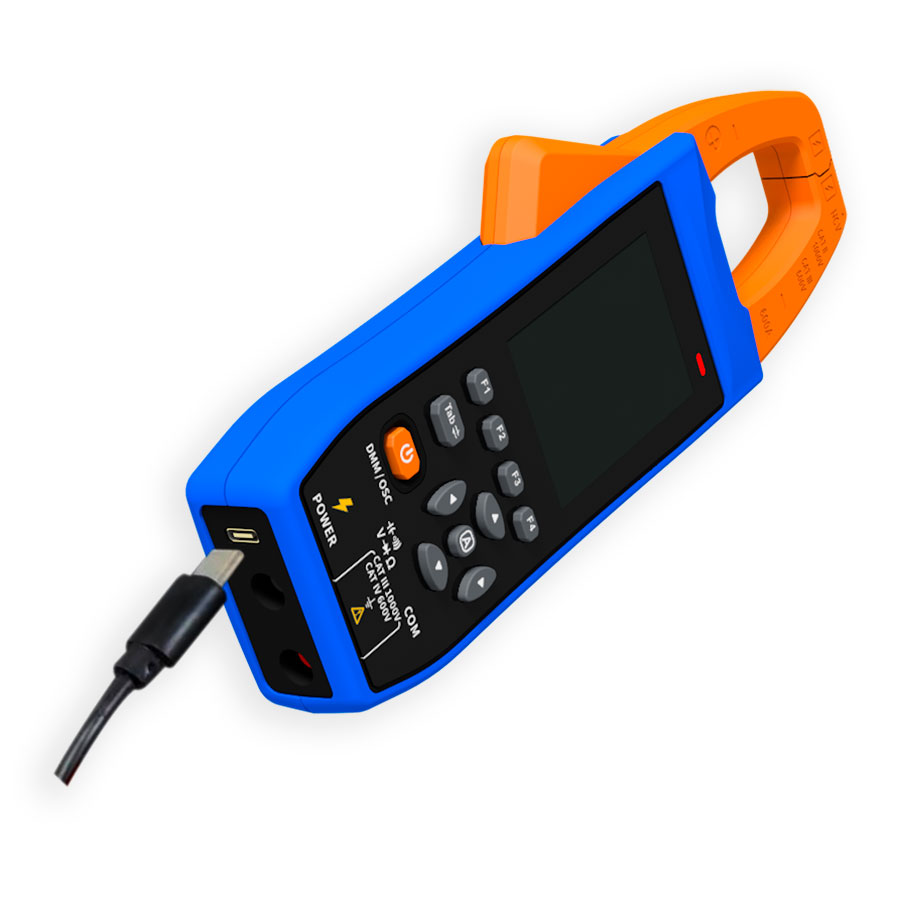

Owon CMS101 - Clamp Meter with Oscilloscope - True RMS - Datalogger

INIA101

Data sheet

Data sheet

This product is not currently in stock in our store. However, it can still be purchased and will be shipped directly from the manufacturer.

Quantity

VAT NOT INCLUDED

VAT INCLUDED

100.74 €

121.90 €

Identification

EE Code INIA101

Brand

Owon

Model CMS101

Manufacturer code

EAN13

Features

The OWON CMS101 clamp meter is a multifunctional tool that combines the features of a True RMS multimeter, an oscilloscope, and a data logger in a single compact device. Designed for professionals who demand precision and versatility in their electrical measurements, the CMS101 provides a comprehensive solution for analyzing signals and currents.

Key Features:

True RMS Multimeter with 20,000 counts: Enables accurate measurements of AC/DC voltage and current up to 1000V and 1000A, ensuring precision even with non-sinusoidal signals.

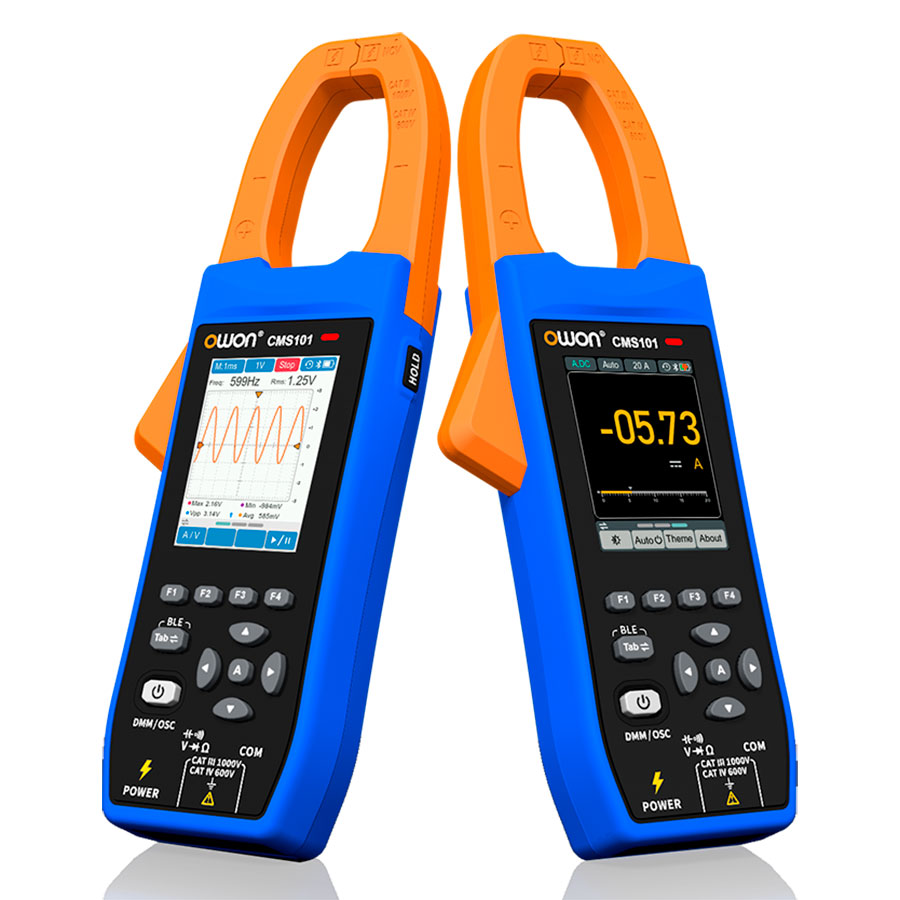

Integrated Oscilloscope Function: With a bandwidth of 1 kHz in current or 1 MHz in voltage, it is capable of simultaneously measuring and displaying current and voltage waveforms, facilitating detailed analysis of electrical signals.
Built-in Data Logger: Through the iMeter app, available for Android and iOS, it allows users to view, compare, analyze, and store measurement data, enhancing the management and documentation of tests.
Inrush Current Measurement: Ideal for evaluating current peaks during equipment startup, providing crucial insights for diagnosing electrical systems.
2.8-inch IPS LCD Screen: Delivers a clear and crisp display of values and waveforms, with a wide viewing angle suitable for various lighting conditions.
Touch Key Operation: Enables quick and easy function switching with one hand, optimizing efficiency in fieldwork.
NCV (Non-Contact Voltage) Detection: Identifies the presence of voltage in cables and devices without direct contact, improving safety during measurements.
Rechargeable 18650 Lithium Battery: Offers extended battery life, perfect for uninterrupted operations.

The OWON CMS101 is an all-in-one solution for professionals seeking efficiency and precision in electrical system analysis, combining multiple functions in a portable and easy-to-use device.

Specifications

Multimeter Specifications:

DC Voltage:
- Ranges: 20,000mV, 200.00 mV, 2.0000 V, 20.000 V, 200.00 V, 1000.0 V
- Accuracy: ±(0.1% + 20 digits) for ranges up to 20,000mV; ±(0.1% + 6 digits) for the 200.00mV scale; ±(0.1% + 5 digits) for the 2.000V, 20.000V, and 200.00V scales; ±(0.15% + 5 digits) for the 1000.0V scale.
AC Voltage:
- Ranges: 200.00 mV, 2.0000 V, 20.000 V, 200.00 V, 1000.0 V
- Accuracy: ±(0.6% + 10 digits) for ranges up to 200.00 V; ±(0.8% + 5 digits) for 1000.0 V.
DC Current:
- Ranges: 20.00 A, 200.0 A, 1000 A
- Accuracy: ±(2.0% + 10 digits) for ranges up to 20.00 A; ±(2.0% + 5 digits) for 200.0 A and above.
AC Current:
- Ranges: 20.00 A, 200.0 A, 1000 A
- Accuracy: ±(3.0% + 10 digits) for ranges up to 20.00 A; ±(2.5% + 5 digits) for the 200.0 A and 1000 A scales.
Inrush Current:
- Ranges: 20.00 A, 200.0 A, 1000A
- Accuracy: ±(10.0% + 10 digits).
Resistance:
- Ranges: 200.0 Ω, 2.0000 kΩ, 20.000 kΩ, 200.00 kΩ, 2.0000 MΩ
- Accuracy: ±(0.8% + 10 digits) for the 200.0Ω scale; ±(0.3% + 5 digits) for the 2.0000 kΩ, 20.000 kΩ, 200.00 kΩ, and 2.0000 MΩ scales; ±(0.5% + 5 digits) for the 20.000 MΩ scale; ±(5% + 10 digits) for the 1000 MΩ scale.
Capacitance:
- Ranges: 2.00 nF, 20.00 nF, 200.0 nF, 2.00 μF, 20.0 μF, 200.0 μF, 2.00 mF, 20.0 mF
- Accuracy: ±(3% + 10 digits).
Frequency:
- Ranges: 200.00 Hz, 2.0000 kHz, 20.000 kHz, 200.00 kHz, 2.0000 MHz, 20.000 MHz
- Accuracy: ±(0.1% + 5 digits)
Duty Cycle:
- Range: 0.1% - 99.9%
- Accuracy: ±(1.2% + 3 digits) for a frequency of 100 Hz; ±(2.5% + 10 digits) for frequencies ≥1 kHz.

Oscilloscope Specifications:

Analog Bandwidth: 1 MHz
Real-Time Sampling Rate: 5.0 MSa/s
Channels: 1
Input Impedance: 10 MΩ
Maximum Input Voltage: 1000 V
Maximum Current Sample: 1000 A
Sweep Speed: 2.5 μs/div to 10 s/div
Time Base Accuracy: ±(0.01% + 0.1 div)
Vertical Sensitivity: 30 mV/div to 500 V/div
Offset Range: ±3 divisions
Sensitivity Accuracy: ±(5% + 0.2 div)
Available Measurements: RMS, period, frequency, maximum, minimum, peak-to-peak, average
Trigger Modes: Automatic
Trigger Types: Rising edge, falling edge.

General Specifications:

Bluetooth Communication: Allows data tables to be stored in CSV format.
Display Modes: Multimeter (DMM) or Oscilloscope (OSC).
Data Hold Function.
Auto Power-Off: After 10 minutes of inactivity.
Screen Size: 2.8".
Internal Battery: 3.7V, type 18650.
Dimensions: 248 x 94.5 x 37.8 mm.

These specifications demonstrate the OWON CMS101’s ability to deliver precise and detailed measurements, combining multiple functions into a portable and easy-to-use device.
