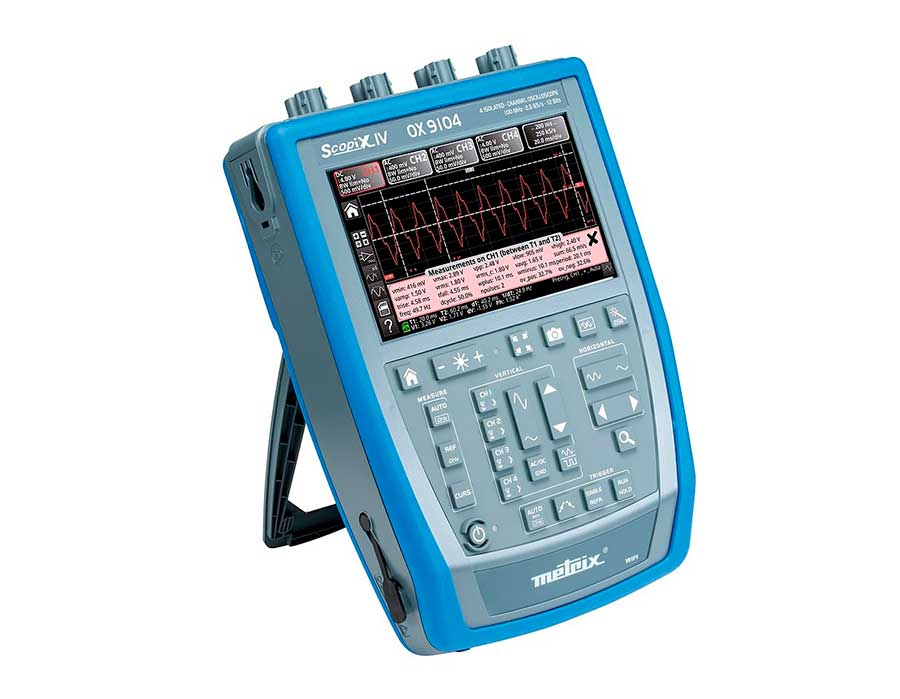

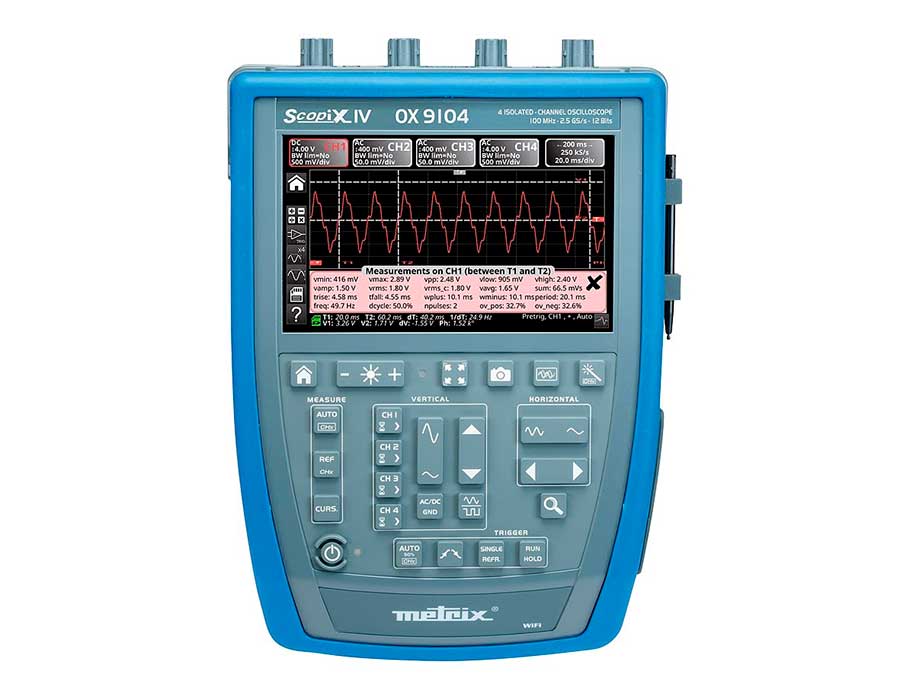

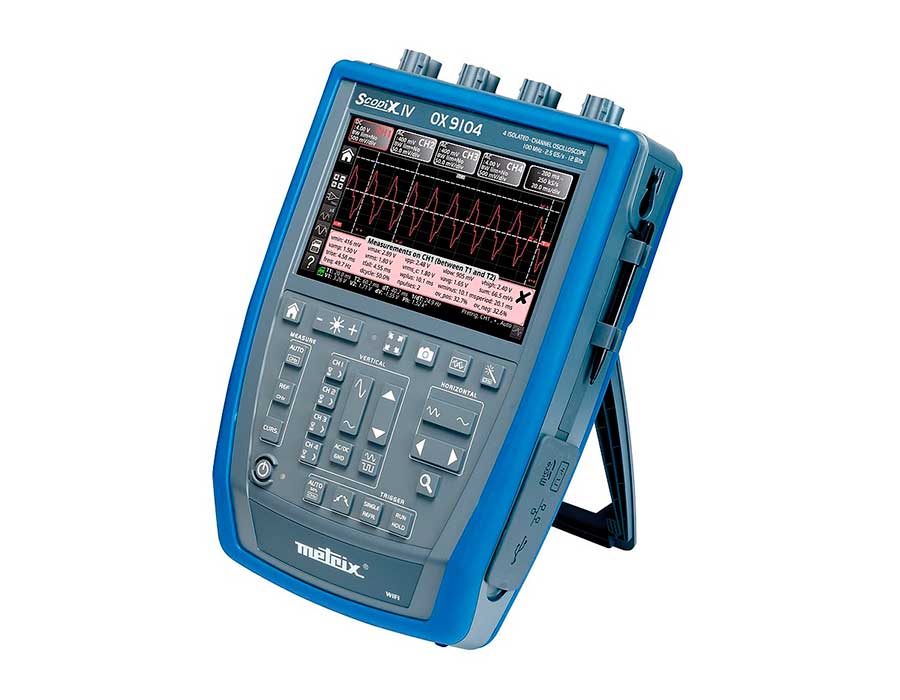

The OX9104 is a SCOPIX IV “tablet icon generation” portable digital oscilloscope, stand-alone, with 4 fully isolated 600 V channels at 60 MHz bandwidth. It has a memory depth of 100 kpoints per channel, which significantly increases recording durations.
Ergonomics
With its 7” WVGA TFT color touch screen backlit on a black background to improve reading, menus available in more than 13 languages, associated with the design of the keyboard and the casing, the SCOPIX IV offers optimal comfort of use.
Modes and functions
Provided with unprecedented functions, like the entire SCOPIX IV range, the OX9104 4-channel / 100 MHz digital oscilloscope, "multi-instrument" with reduced dimensions, enjoys valuable features due to its 12-bit converter with 0.025% vertical resolution.
In addition to its advanced activation functions (pulse width, count, delay), SCOPIX IV proposes 20 automatic measurements per channel associated with cursors for a complete analysis.
This oscilloscope consists of standard and more advanced "MATH" functions that allow you to define, for each of the traces, a mathematical function as well as a vertical scaling with definition of the real physical unit.
Thanks to the simultaneous real-time FFT function of the waveform, associated with the qualitative analysis of harmonics, the distortion of a signal, the impulse response, the search for a source of noise in logic circuits lead to effective and accurate diagnoses. .
The 8,000 point, 200 kHz, multi-channel TRMS digital multimeter measures amplitudes, resistance, continuity, capacitance, frequency, temperatures, and performs component tests without changing connectors with the PROBIX. The multimeter mode is associated with the logger mode and allows automatic graphic recording with date and time (N files of 100,000 measurements with an interval of 0.2 s between 2 acquisitions.).
Power measurements are possible in this mode: single and three-phase power; active, reactive, apparent and power factor.
The multi-channel harmonic analyzer can display the first 63 ranks of harmonics for signals whose fundamental frequency is between 40 and 450 Hz.
A .png screenshot is active in every mode, as well as printing to a network printer and retrieving all your logs offer you unmatched diagnostic convenience.
All means of communication are brought together to optimize your analyses: wired Ethernet and WIFI, USB, µSD.
25 direct command keys on the front
Sampling rate at 2.5 Gm/s in single shot and max. 100 Gm/s in ETS zoom
Quick charge 2h; autonomy up to 8 h
Communication: Ethernet / WiFi / USB / µSD: The SCOPENET PC or Tablet application allows you to take control of the instrument remotely, transfer curves or print screens, through your preferred browser
High capacity storage µSD of more than 32 GB: SD, SDHC, SDXC to complement the internal memory of 2 GB
PROBIX plug-and-play accessories: quick instrument commissioning without risk of error. The coefficients, scales and units of the sensors as well as the configuration of the channels are managed automatically. Probes and adapters are immediately recognized once connected.
Complete, supplied in a bag with its measurement accessories
