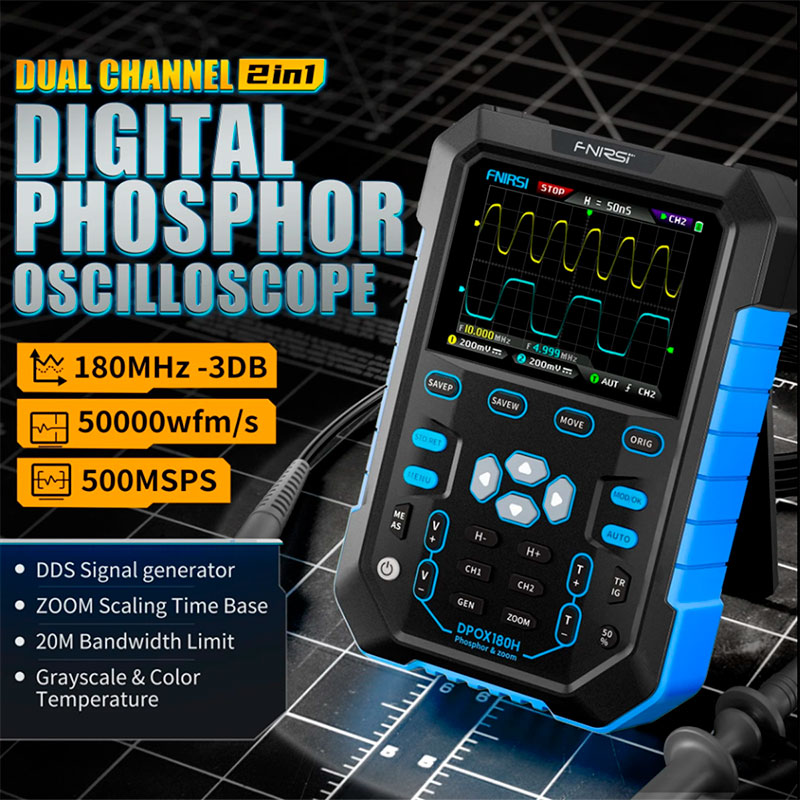

This 180MHz handheld oscilloscope with an integrated signal generator is designed for electronic signal analysis, circuit diagnostics and electronic testing. It combines a 2-channel digital oscilloscope and a DDS function generator in one compact instrument.
Using digital phosphor oscilloscope technology, the device minimises waveform noise and distortion, providing clearer signal visualisation. The colour temperature display helps analyse signal distribution and rise/fall times.
The instrument features a 180MHz bandwidth oscilloscope with a 500MSa/s sampling rate, enabling accurate capture of fast signals. Its waveform refresh rate of up to 50,000 wfm/s helps detect glitches and rare signal events.

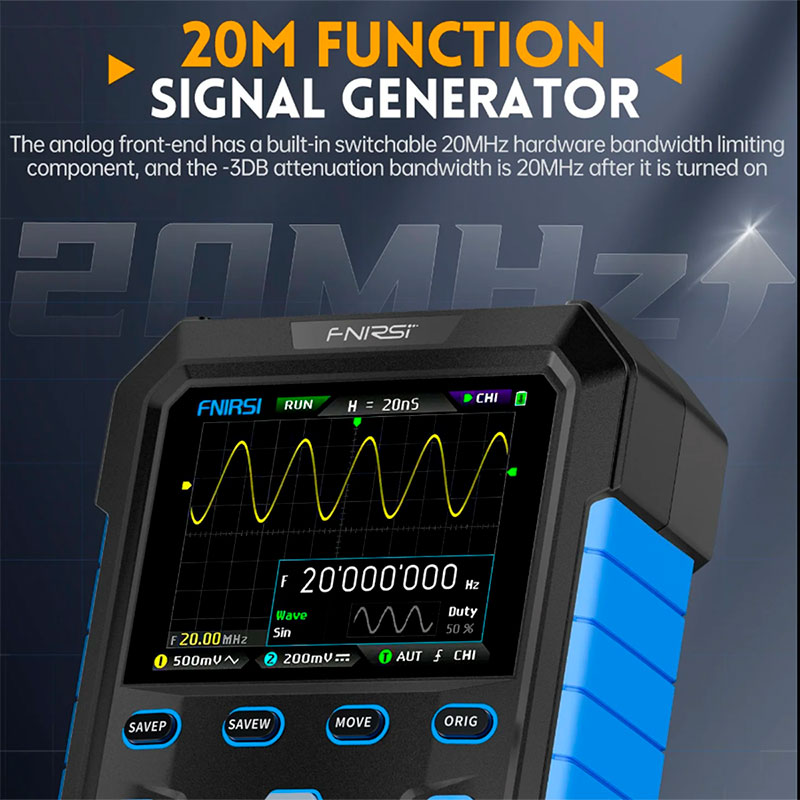

An integrated DDS signal generator supports 14 waveform types, producing sine waves up to 20MHz and other waveforms up to 10MHz. This makes it suitable for electronics testing, PCB diagnostics and prototype development.
Practical features include one-button auto setup, cursor measurement, FFT spectrum analysis and X-Y mode for comparing amplitude, frequency and phase between signals.

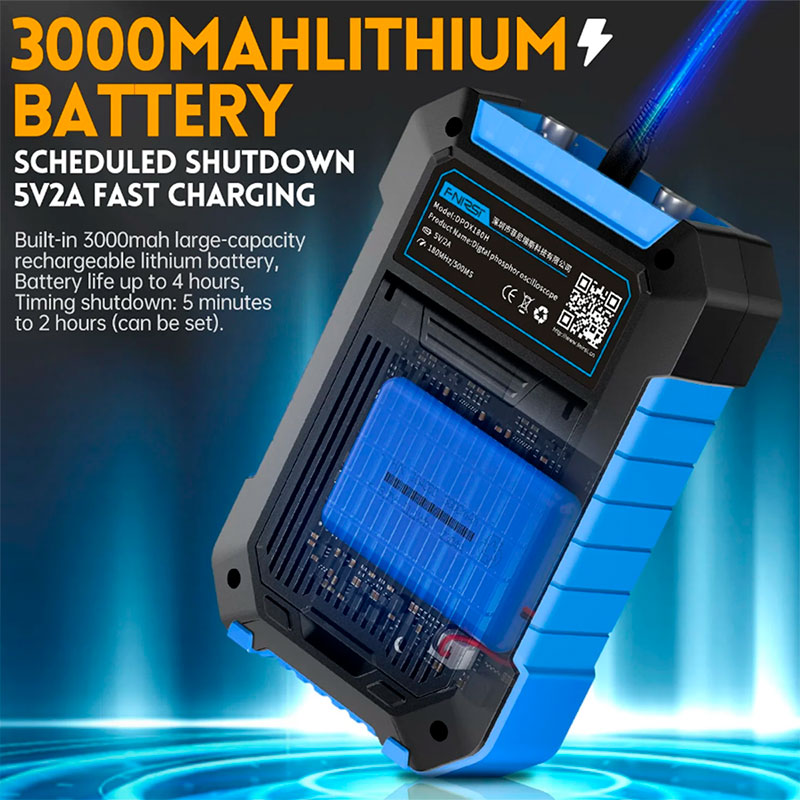

The 2.8-inch IPS display provides clear waveform visibility, while the integrated 3000mAh rechargeable battery allows the instrument to be used as a portable oscilloscope for laboratory or field work.
Additional functions include automatic noise filtering, adaptive high-frequency rejection and over-voltage protection up to ±400V for safer measurements.
| Device type | Portable digital oscilloscope with signal generator |
| Channels | 2 |
| Bandwidth | 180 MHz |
| Sampling rate | 500 MSa/s |
| Refresh rate | 50,000 wfm/s |
| Memory depth | 120 Kpts |
| Vertical sensitivity | 5 mV/div – 10 V/div |
| Maximum measurement voltage | ±400 V |
| Trigger modes | Auto / Normal / Single |
| Display | IPS LCD |
| Screen size | 2.8 inches |
| Signal generator | Integrated DDS |
| Maximum sine frequency | 20 MHz |
| Other waveform frequency | 10 MHz |
| Waveforms | 14 |
| Output amplitude | 1 Vpp |
| Internal storage | Up to 250 records |
| Data export | USB |
| Battery | 4.2 V 3000 mAh |
| Charging | 5 V / 2 A |
| Over-voltage protection | ±400 V |
