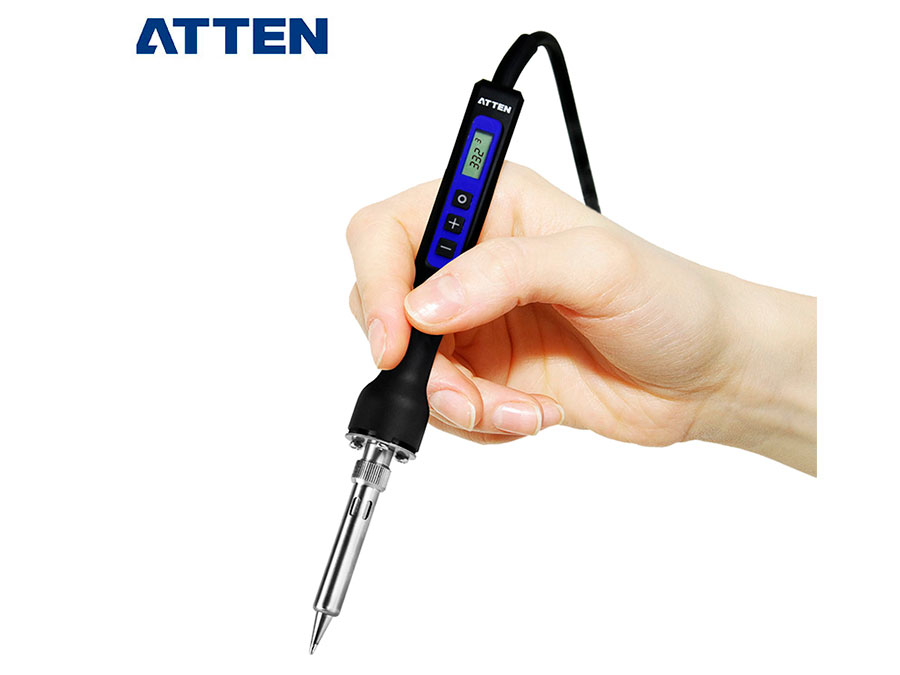

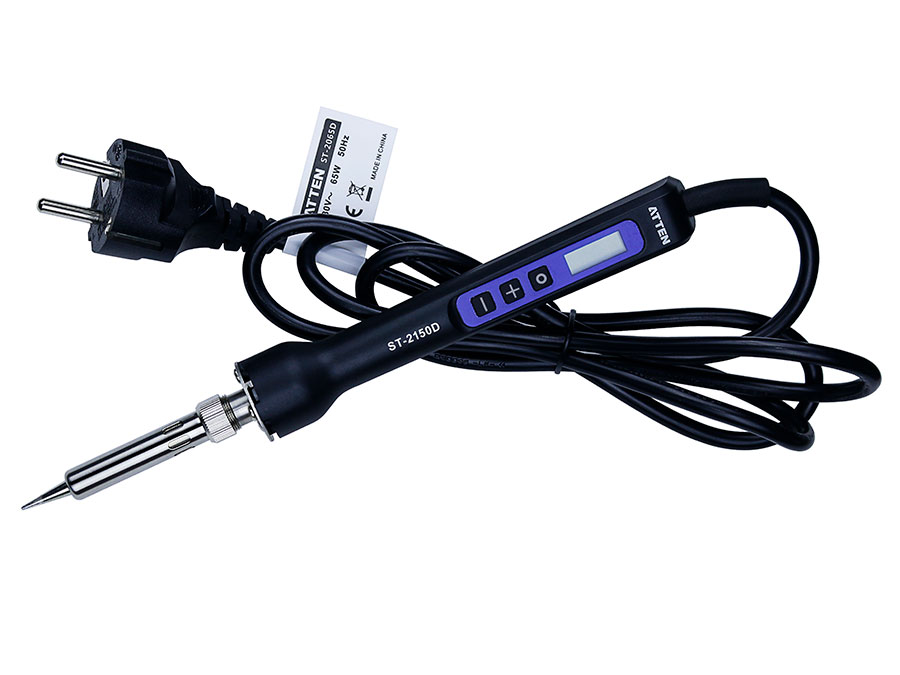

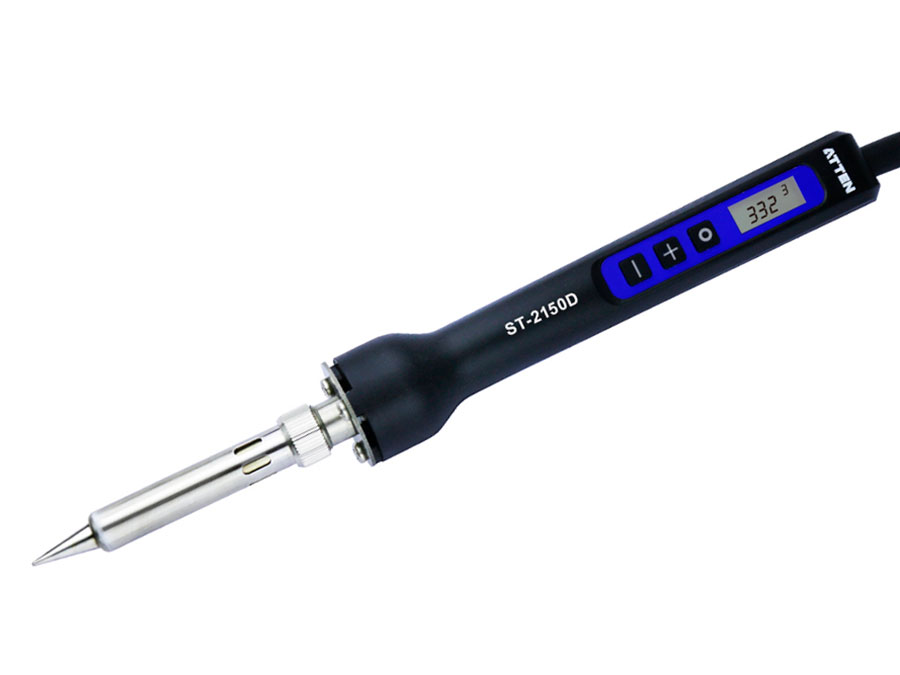

150W soldering iron with LCD display.
Automatic sleep after 10 minutes inactivity.
Automatic shut down after 20 minutes inactivity.
Support ℃ and ℉ switchable.
Ergonomic handle, comfortable to hold.
Auto sleep function, fault alarm function.
Build in PID system, quick button to adjust the temperature, easy to operate.
Heating elements and sensors using PTC material, rapid heating and accurate temperature control.
Start up or shut down easily
Charge on the product, short press power button to start up or shut down.
Temperature unit switching ℃/℉
9 groups shortcut temperature adjustment
In working status, press “＋” “－” to switch temperature group.
9 groups default temperature are: 250℃/482℉; 300℃/572℉; 325℃/617℉; 350℃/662℉; 375℃/707℉; 400℃/752℉; 425℃/797℉; 450℃/842℉; 480℃/896℉.
Easy to adjust setting mode
Normal working mode > Quick temperature adjustment> Temperature compensation adjustment> Temperature unit switching> Auto-sleep function setting> Back to normal working mode
Temperature compensation adjustment range is ±50℃/±90℉
Auto-sleep function
In the temperature unit switching state, short press the power button to enter the sleep setting, 1 means ON, 0 means OFF.
Heating indication
When the product is heated. The power light flashes, the brightness changes according to the power level, and the selected light is normally on.
Fault alarm
When “H-E” displayed on the screen, there is no temperature, which indicates that the heating element failed.
When “S-E”displayed on the screen, there is a fault in sensor, which signifies that there is something wrong in sensor or the related circuit of the sensor.
Power consumption: 150W
Voltage: 230VAC ±10% 50Hz
Temperature range: 80~480℃ (176 ～896℉)
Temperature stability: ±2℃ at idle temperature
Temperature offset range: ±50℃ (±90℉)
Tip to ground resistance: <2Ω
Tip to ground potential: <2mV
Heating element: Four-core PTC heater

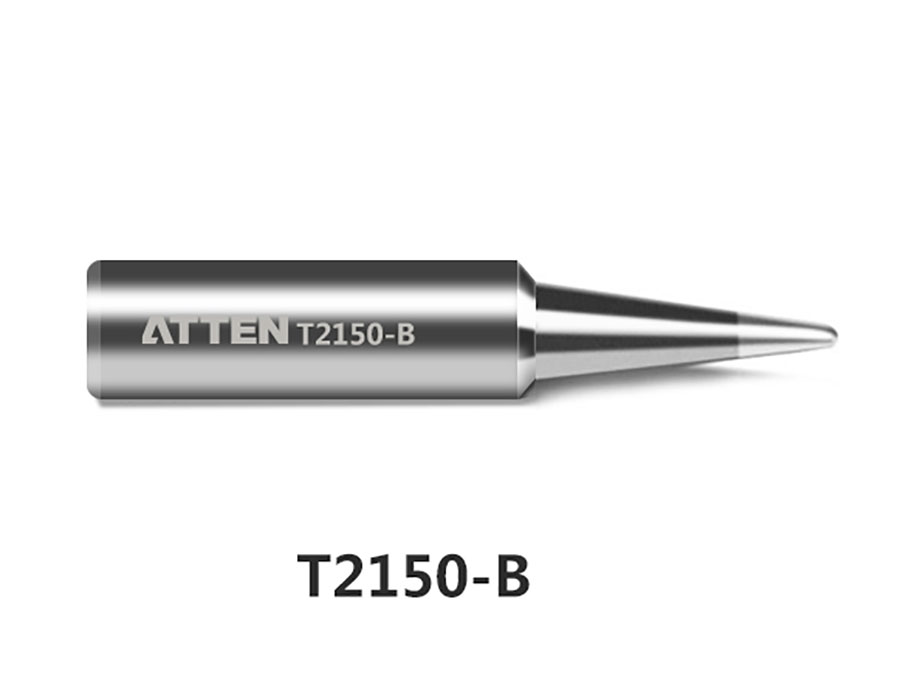

Soldering tip included: T2150-B
Net weight 0.21kg

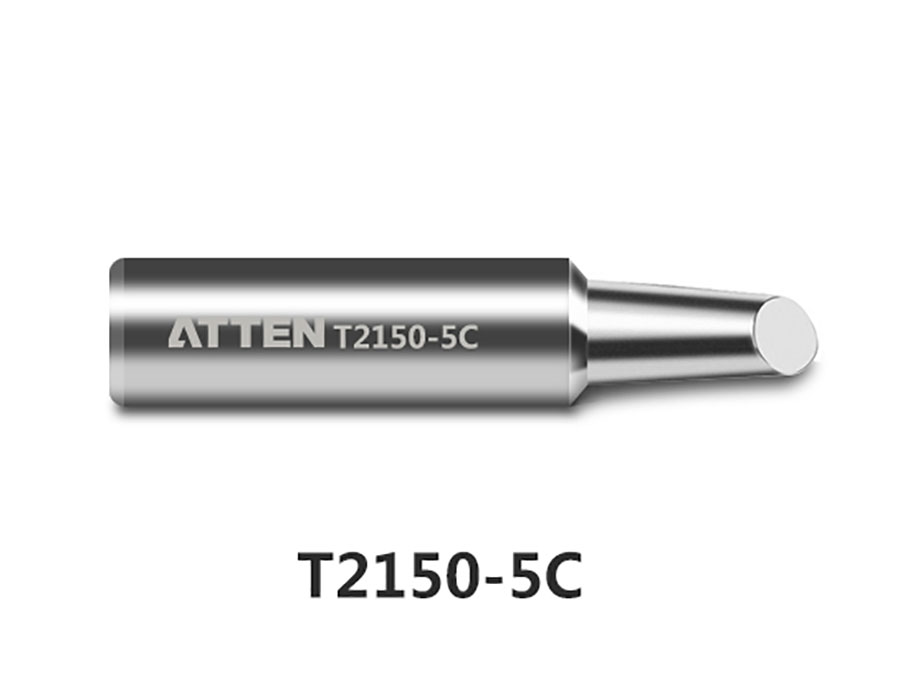

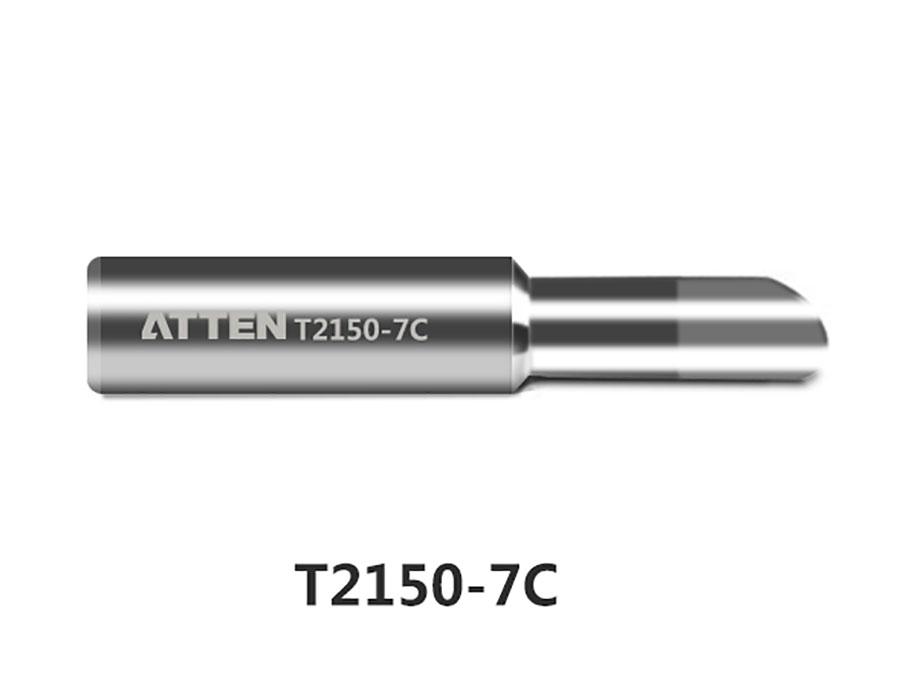

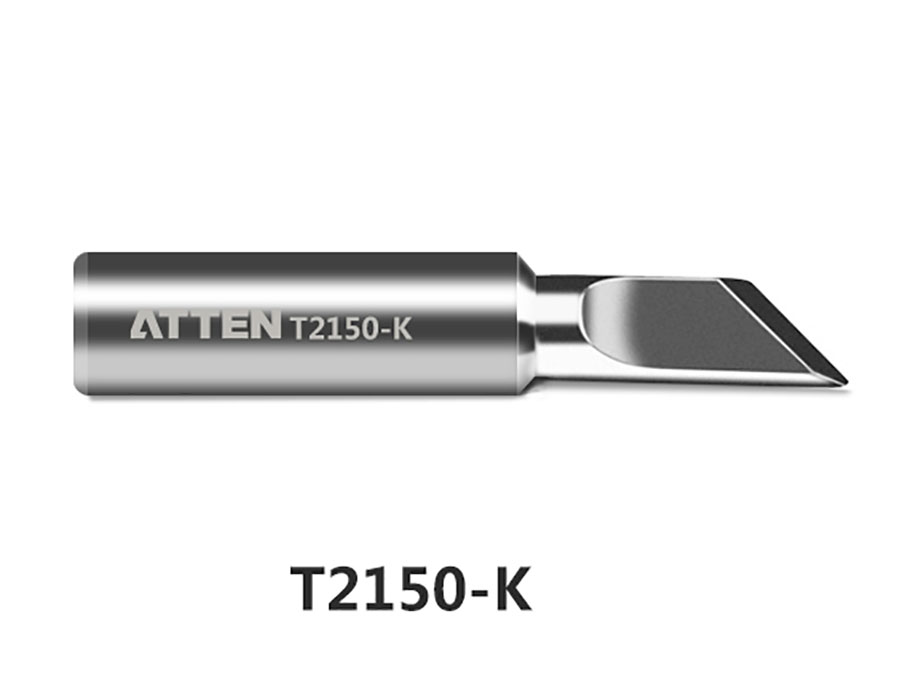

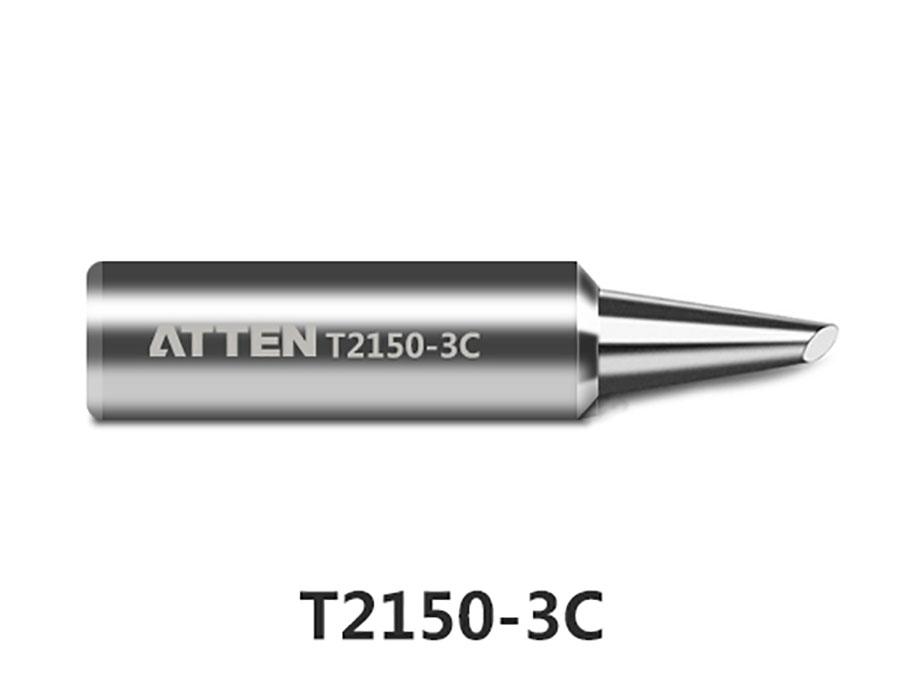

All compatible soldering tips of the T2150 series:

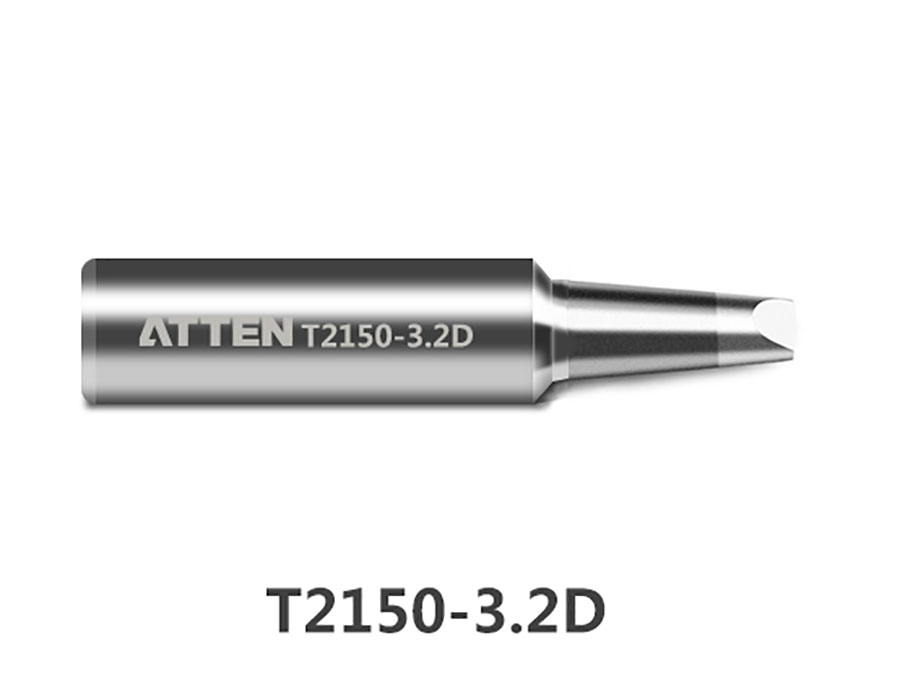

HRJFA69

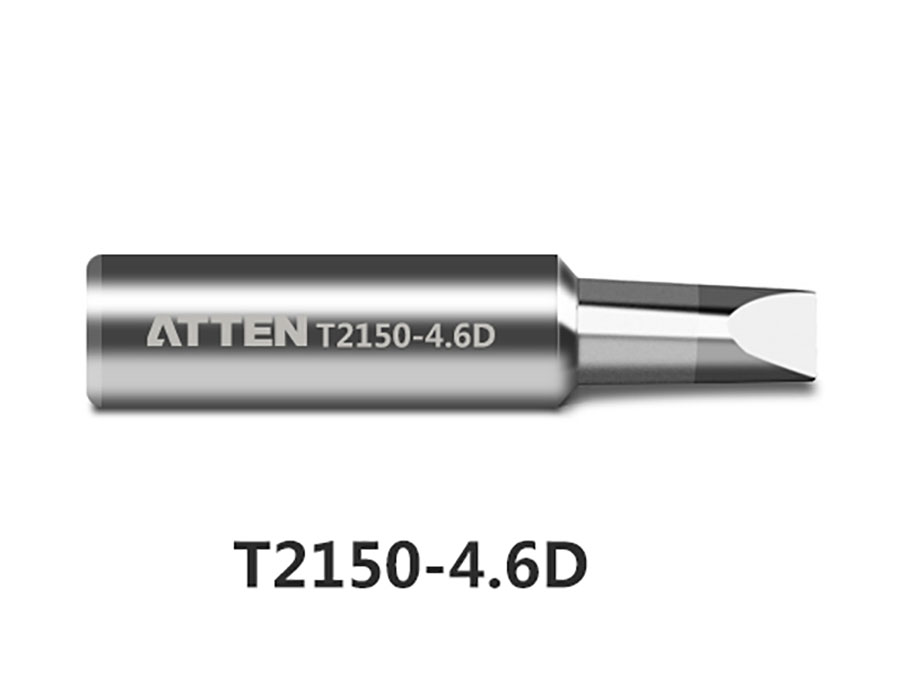

HRJFA71

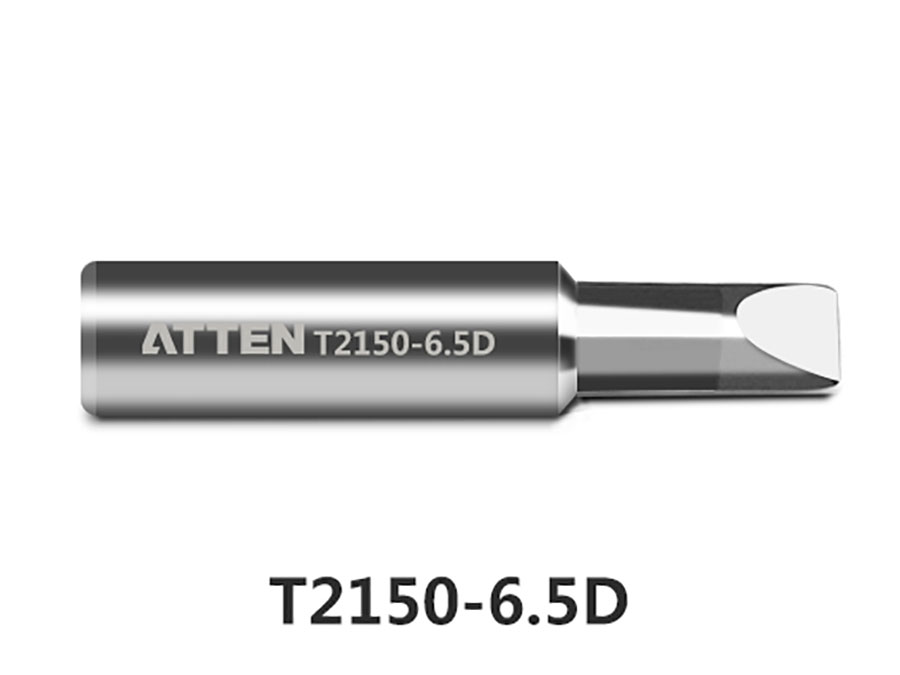

HRJFA73
