Available

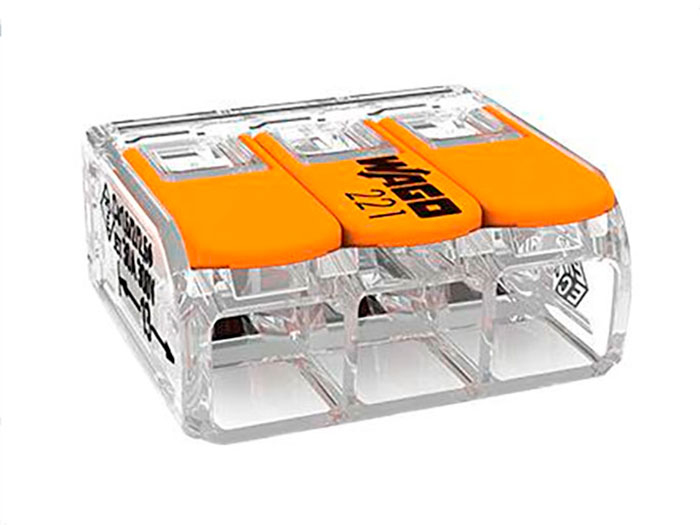

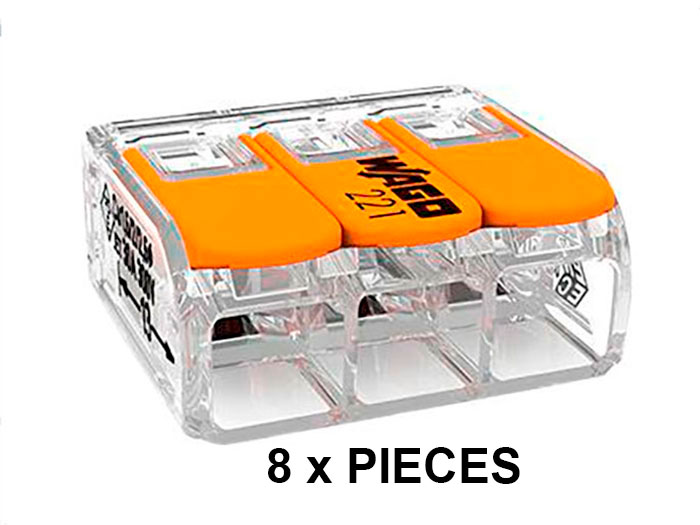

221 Series Splicing Connector for all conductor types ranging in size from 0.14 to 6 mm² (24–10 AWG)
Easily terminate conductors from 0.14 to 6 mm² (24–10 AWG)
Connect solid, stranded and fine-stranded conductors
Time savings for installers and Device manufacturers
Quickly install Devices with higher levels of power consumption
Safely install long cable runs with larger conductor cross-sections
Pull the lever up, insert a conductor and push the lever back down
cross section (mm²): 0.2 - 6.0 mm² (flexible)
cross section (AWG): 20 - 10 AWG
number of strands: 3
measured voltage EN: 450 V
Current intensity EN: 41 A
strip length: 11 mm
type of wiring: side-entry wiring
flammability rating per UL 94: V2
width: 16 mm
height: 10.1 mm
length: 10.1 mm
