Available

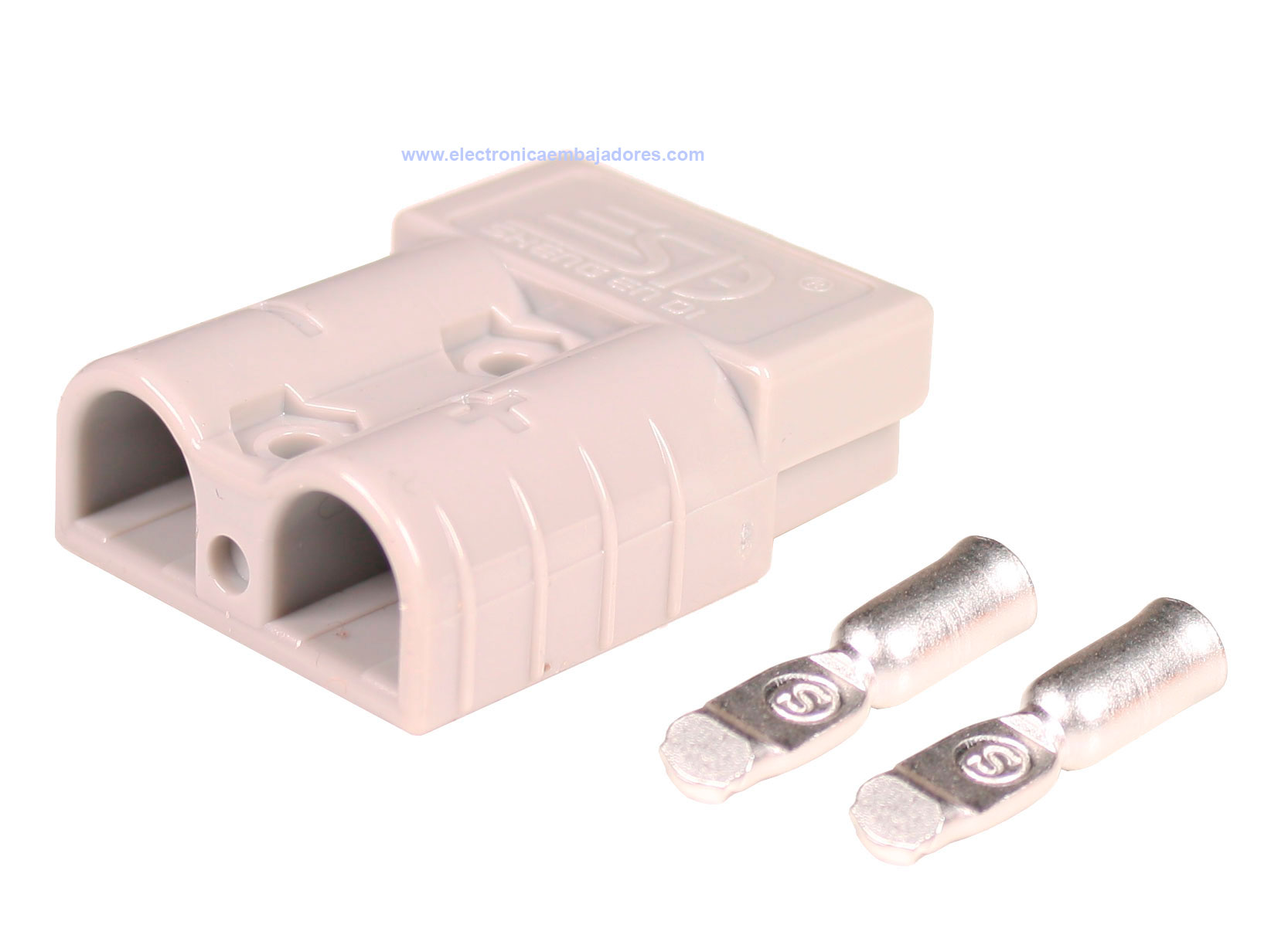

Anderson® connectors are hermaphroditic connectors that are generally used to handle high currents in batteries and similar applications
Connection terminals included
Rated current: 350A
Rated voltage: 600V
Insulation resistance: 5000Mohms
Contact resistance less than 40µohms
Lifetime:
Vacuum: up to 10,000 on / off
With load: 250 cycles at 120V / 100A
Flammability: UL94 V-0
Operating temperature: -20 ºC..125 ºC
Silver contacts: 1µm Ag
Cable section: 33.63mm² (AWG2)

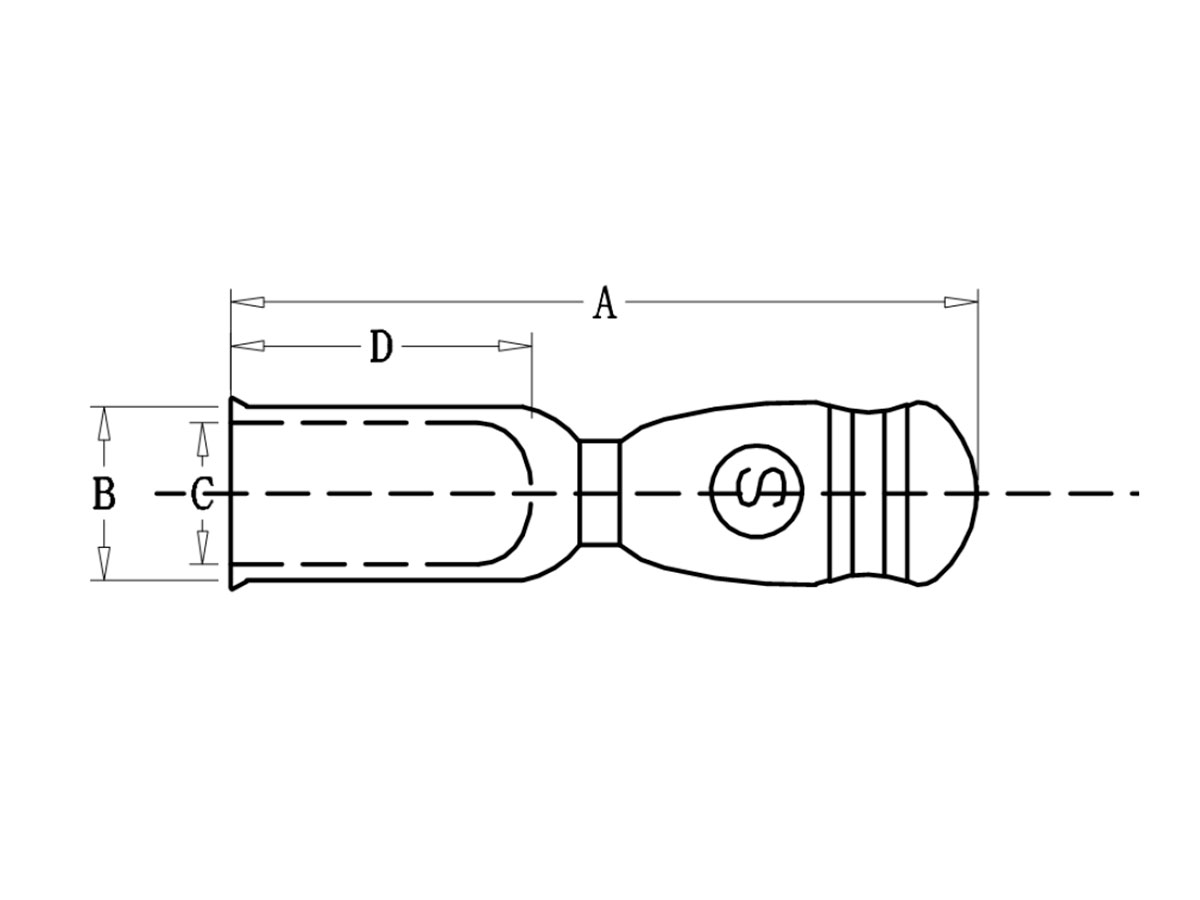

Terminal dimensions:
A: 81.7mm
B: 15.8mm
C: 12.6mm
D: 37.0mm
