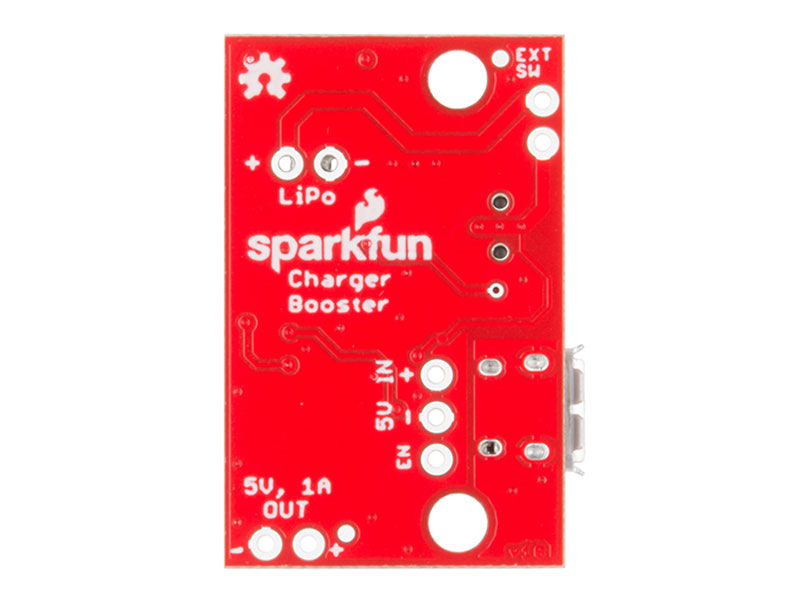

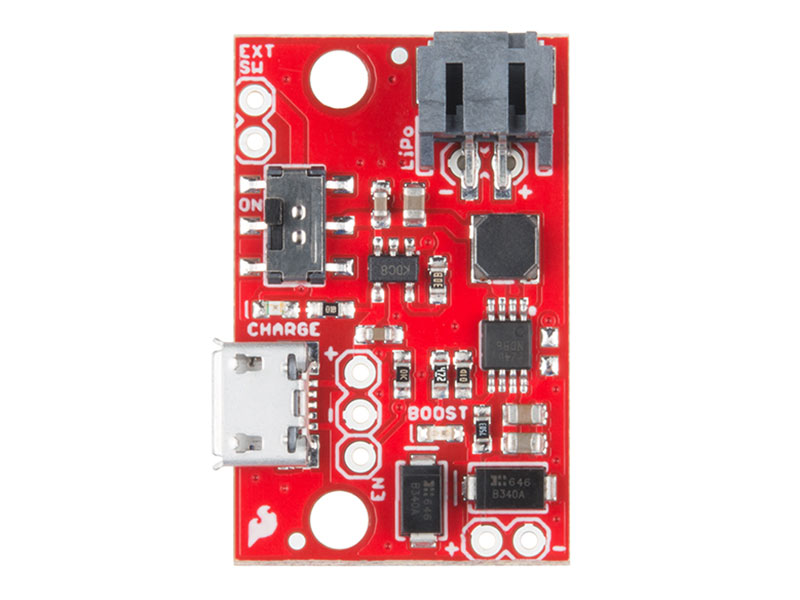

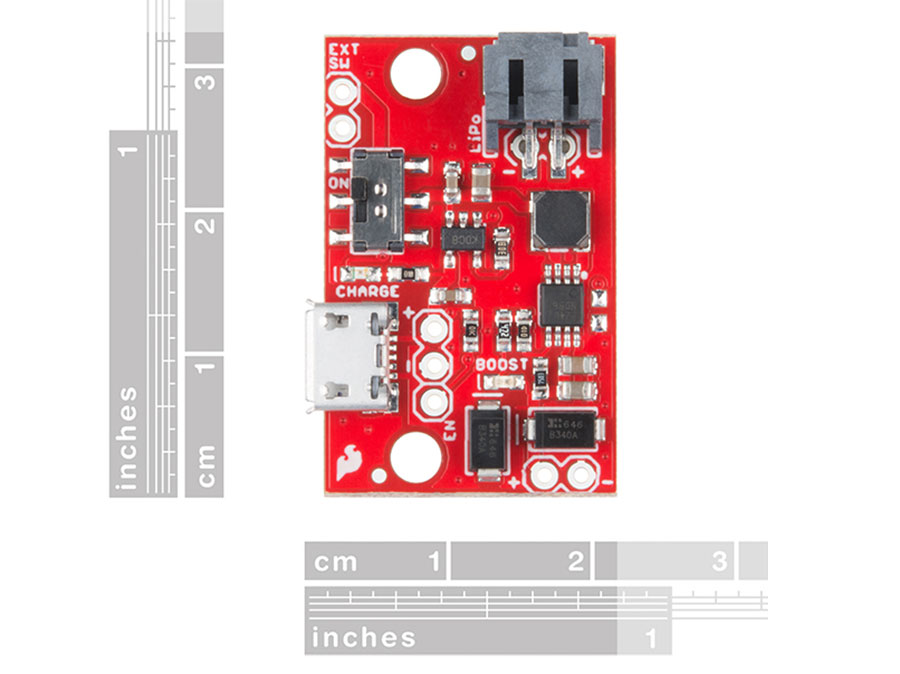

Sparkfun LiPo Charger/Booster - 5V/1A - 3.7V Lithium Battery Charger and Booster - PRT-14411

Ref. BA2A958

Sparkfun LiPo Charger/Booster - 5V/1A - 3.7V Lithium Battery Charger and Booster - PRT-14411
Sparkfun LiPo Charger/Booster - 5V/1A - 3.7V Lithium Battery Charger and Booster - PRT-14411
Sparkfun LiPo Charger/Booster - 5V/1A - 3.7V Lithium Battery Charger and Booster - PRT-14411
Sparkfun LiPo Charger/Booster - 5V/1A - 3.7V Lithium Battery Charger and Booster - PRT-14411
Disponible Available
Stock
Quantity
3
Features

If you need to power a 5V circuit with a 3.7V battery you can use this simple Sparkfun charger. It can provide up to 1A of current to its output

The circuit is built by feeding a charge controller IC MCP73831 to the LiPo port and the input of a boost controller PAM2401. Various connection types are provided for battery, charging source, and switch to allow application flexibility, and two LEDs provide information on system status. If you need more than 5V from your project, SparkFun LiPo amplifiers / chargers can also be daisy-chained for a higher return on your investment.

Tutorial


Specifications
  • Charger, microUSB, 500mA
  • Booster, 5V, 1A output
  • Form factor for our 1,000mAh batteries
  • Battery isolation switch with optional external connections
  • Enable pin broken out
  • Disabled current less than 10uA
  • LED indicators for power and charge
  • Super-clean output signal (high-frequency switching)


Schematic

Back to list » Price VAT INCLUDED 16.80
