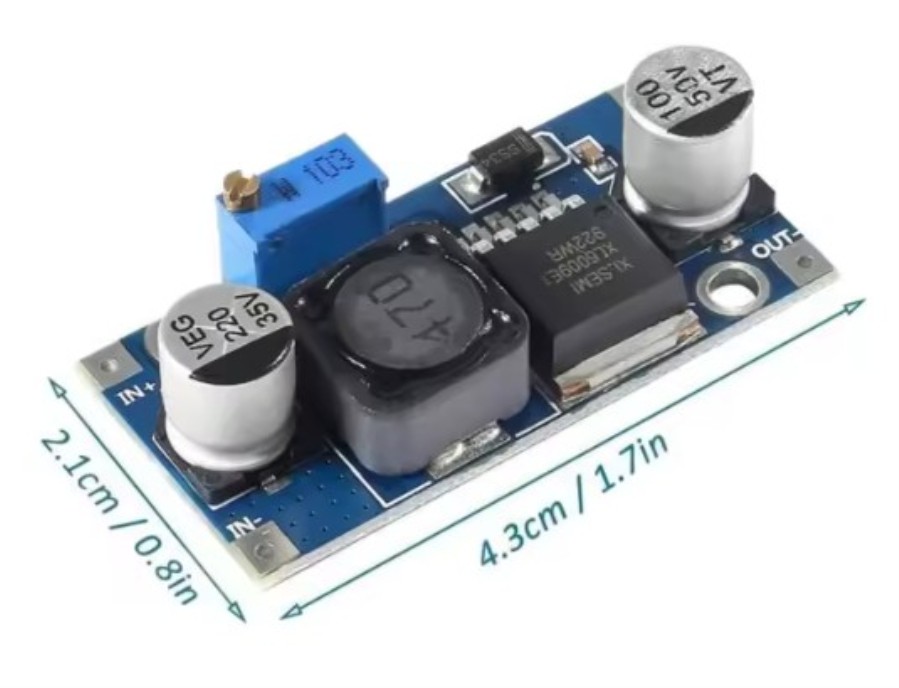

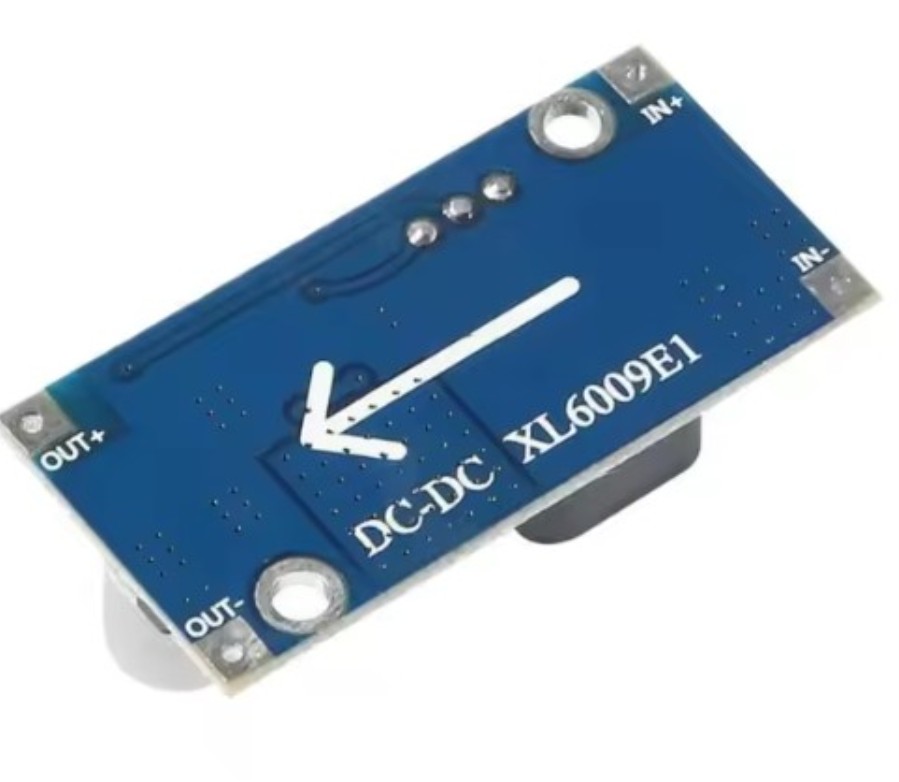

DC-DC converter - In: 3.2 .. 32 V - Out: 5.0 .. 35.0 V - 4 A - XL6009
SA31374
Sold out. We can let you know when it is available.
Quantity
VAT NOT INCLUDED
VAT INCLUDED
3.73 €
4.51 €
Identification
EE Code
SA31374
Brand
Model
Manufacturer code
EAN13
Features
The SA31374 is a high-performance BOOST module for 4A switching current.
The module uses the XL6009 as the core chip of second-generation high-frequency switching technology, and its performance is far superior to the LM2577 of first-generation technology.
The ultra-wide input voltage range is 3V~32V, and the optimal operating voltage range is 5~32V.
Ultra-wide output voltage of 5V~35V.
With a built-in 4A high-efficiency MOSFET, making the efficiency up to 94%; (The LM2577's current draw is only 3A.)
Ultra-high switching frequency of 400 kHz allows the use of low-capacitance filter capacitors, delivering optimal results: less ripple and a more compact size. (The LM2577's frequency is only 50 kHz.)
Specifications
Type: Non-Isolated Boost
Rectifier: Asynchronous
Input Range: 3V-32V
Output Range: 5V-35V
Input Current: 4A (maximum), no-load 18mA (5V input, 8V output, no-load less than 18mA). The higher the voltage, the higher the output. No-load current.
Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)
Switching frequency: 400 kHz
Output ripple: 50 mV (the higher the voltage, the higher the current, and the greater the ripple)
