Sold out. We can let you know when it is available.

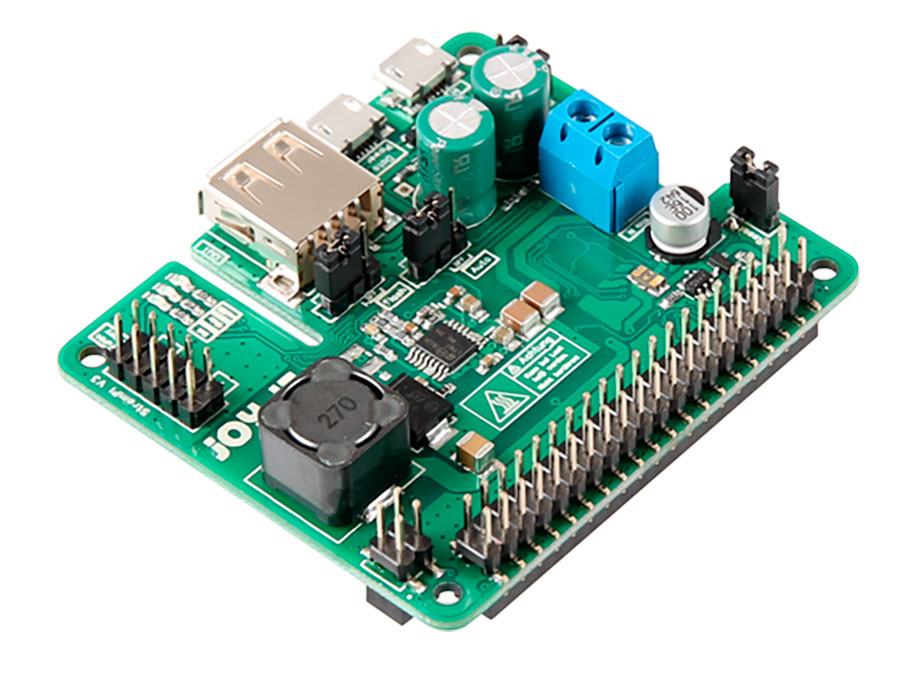

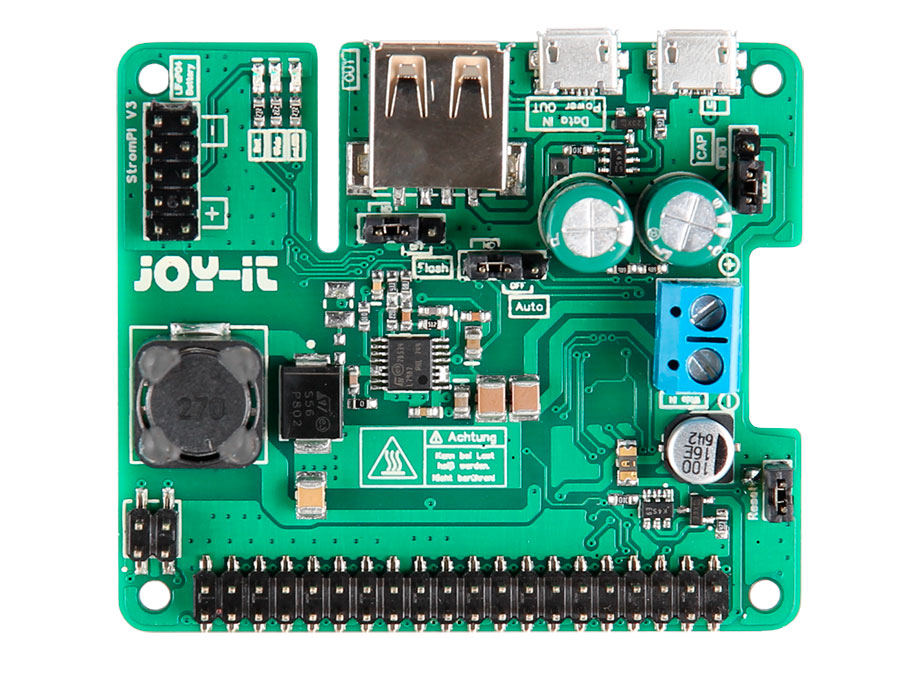

The latest addition to the Strompi family opens up completely new applications for the Raspberry Pi. In addition to the already available voltage inputs, the new StromPi 3 can now be supplemented with an optional plug-in battery unit, which adds a rechargeable emergency power source to your Raspberry Pi with a LiFePO4 battery.
Unforeseen power outages are a thing of the past! The individual inputs can now be variably prioritized, allowing the StromPi 3 to be perfectly adapted to your project. With a voltage range of 6V-61V and a current of up to 3A even larger projects can be supplied with sufficient current.In addition, the StromPi 3 now has its own configurable and autonomously operating microsystem unit, which can be used for a programmable start-stop behaviour
Let your system boot and shut down at pre-set times to perform measurements or switch devices on and off (also ideal for digital signage or machine control). The included RTC real-time clock can also be used to synchronize the time of the Raspberry Pi during operation without Internet access. In addition, the StromPi 3 has been extended by a control unit via the serial interface (battery charge status, voltage values of the inputs/outputs, control and configuration), which makes it an absolute all-rounder.
With the new StromPi 3 you are perfectly equipped for every application!
Voltage input: Micro-USB, Wide-Range: 6V-61V
Voltage output: 5V, 3A / RPi-PinHeader + USB
Compatible to: Raspberry Pi (A+, B+, 2B, 3, 3B, 3B+, 4B), Banana Pi M2, Via USB output: many more single board computers like Arduino, pcDuino, Red Pitaya and many more

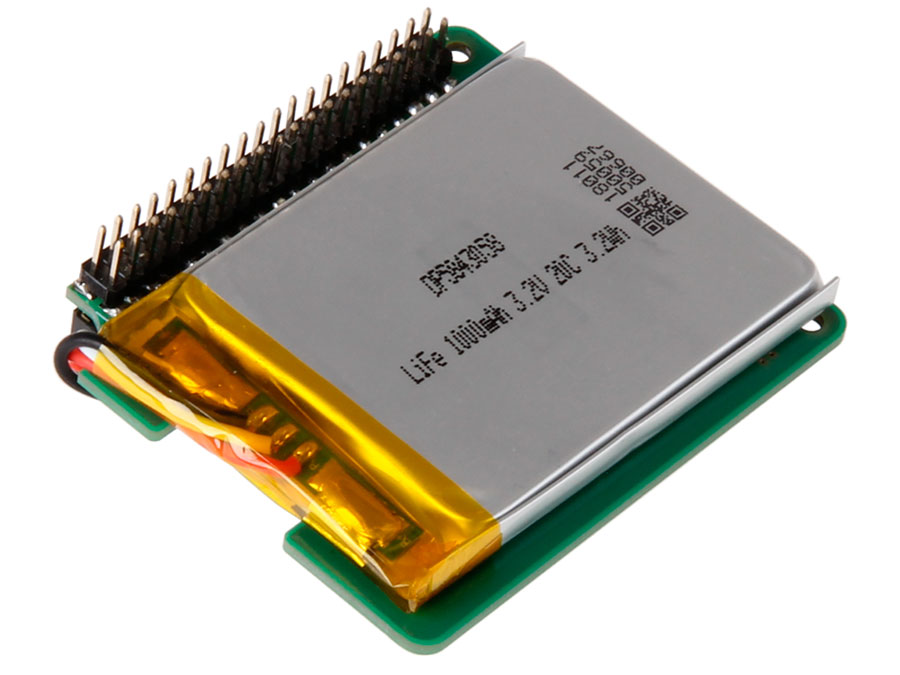

Optional extensions: Plug-in battery pack (sold separately) with a 1000mAh LiFePO4 battery unit
Microcontroller control: Programming option by prioritizing the individual inputs in an emergency (Power Path)
Additional features: RTC real-time clock (programmable start/stop behaviour), control via serial interface (data output, control), optional rechargeable battery is charged immediately during operation
Dimensions: 55x54x20mm
Weight: 32 g
Items shipped: StromPi 3 expansion board
