Oscilloscope, multimeter, analyzer, recorder modes and consultation of files saved directly on the oscilloscope.
Safety: channels truly isolated from each other and from earth, 6 V / CAT III and Probix

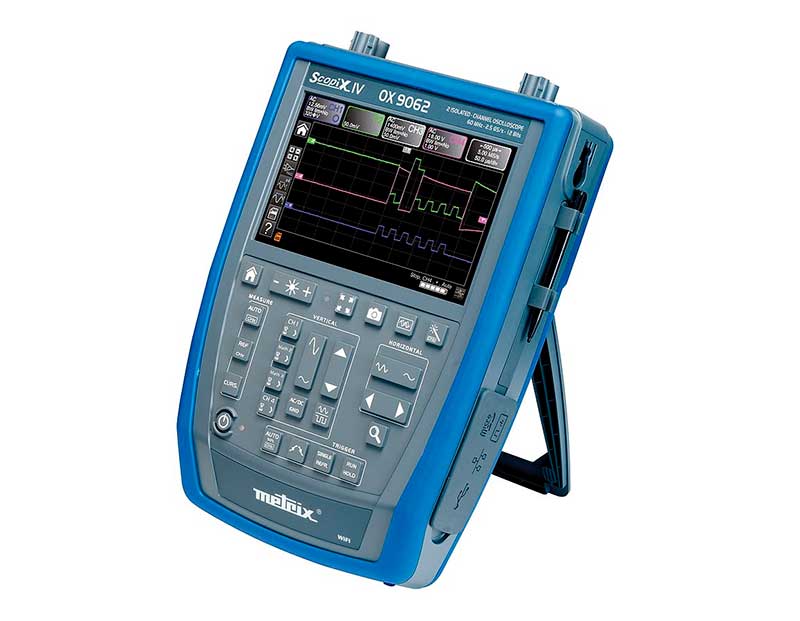

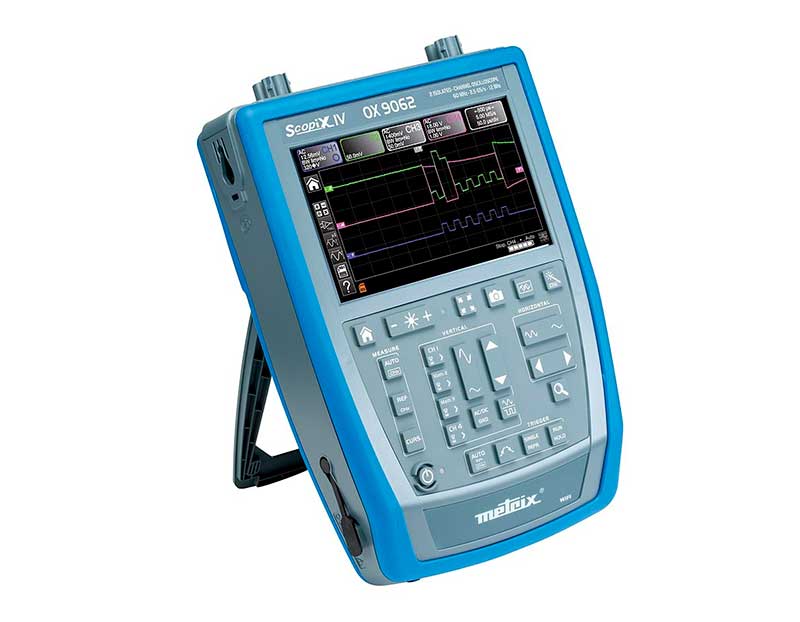

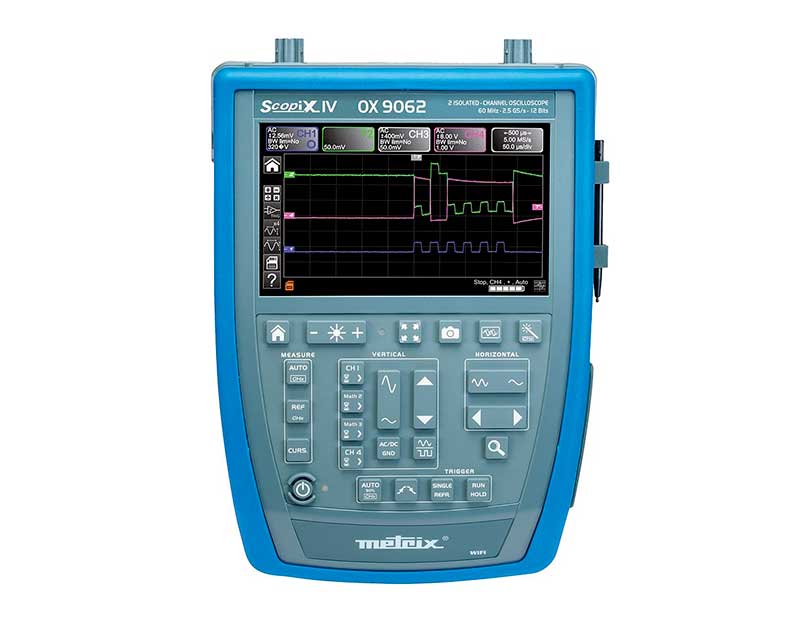

The OX9062 is a SCOPIX IV “icon tablet generation” portable digital oscilloscope, stand-alone, with 2 fully isolated 600 V channels at 60 MHz bandwidth. It has a memory depth of 100 kpoints per channel, which significantly increases recording durations.
With its 7” WVGA TFT color touch screen backlit on a black background to improve reading, menus available in more than 13 languages, associated with the design of the keyboard and the casing, the SCOPIX IV offers optimal comfort of use.
Modes and functions
Provided with unprecedented functions, like the entire SCOPIX IV range, the OX9062 2-channel / 60 MHz digital oscilloscope, a "multi-instrument" with reduced dimensions, enjoys valuable features due to its 12-bit converter with 0.025% vertical resolution.
In addition to its advanced activation functions (pulse width, count, delay), SCOPIX IV proposes 20 automatic measurements per channel associated with cursors for a complete analysis.
This oscilloscope consists of standard and more advanced "MATH" functions that allow you to define, for each of the traces, a mathematical function as well as a vertical scaling with definition of the real physical unit.
Thanks to the simultaneous real-time FFT function of the waveform, associated with the qualitative analysis of harmonics, the distortion of a signal, the impulse response, the search for a source of noise in logic circuits lead to effective and accurate diagnoses. .
The multi-channel TRMS digital multimeter, 8,000 points, 200 kHz, measures amplitudes, resistance, continuity, capacitance, frequency, temperatures and performs component tests without changing connectors with the PROBIX. The multimeter mode is associated with the logger mode and allows automatic graphic recording with date and time (N files of 100,000 measurements with an interval of 0.2 s between 2 acquisitions.).
Power measurements are possible in this mode : single and three-phase power; active, reactive, apparent and power factor.
The multi-channel harmonic analyzer can display the first 63 ranks of harmonics for signals whose fundamental frequency is between 40 and 450 Hz.
A .png screenshot is active in each of the modes, as well as printing to a network printer and retrieving all your logs offer you unmatched diagnostic convenience.
All means of communication are brought together to optimize your analyses: wired Ethernet and WIFI, USB, µSD.
|Back to list »||PRICE||VAT INCLUDED||2685.07€|
