ISOLATED PROBE INCLUDED
Stock | Quantity | |
---|---|---|
1 |

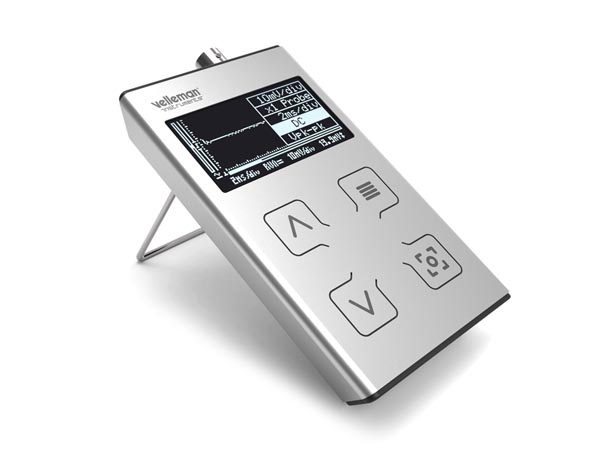

The HPS140MK2 handheld oscilloscope still holds the same power as its predecessor, the HPS140, but in a new and modern design. Although small in size, this oscilloscope packs 40 MS/s in real time and its sensitivity can go as low as 0.1 mV. It also has a full automatic measuring system but can be operated manually if preferred. Add the HPS141 option and use your HPS140MK2 as a versatile component tester.
40 Mega samples/sec in real time
bandwidth up to 10 MHz
full auto range option
sensitivity down to 0.1 mV
signal markers for amplitude and time
memory hold function
direct audio power measurement
optional:
HPS141: component tester for pocket scope HPS140MK2
HPSPR1: X10 measuring probe
HPSP1: protective pouch for Velleman Instruments
bandwidth: up to 10 MHz (-3dB or -4dB at selected ranges)
input range: 1 mV to 20 V / division in 14 steps
input coupling: DC, AC and GND
real-time sample rate up to 40 MS/s
AD resolution: 8 bits
time base: 250 ns to 1 h per division
auto set-up function (or manual)
probe x10 readout option
readouts: DC, AC + DC,True RMS, dBm, Vpp, Min-Max. (±2.5%)
audio power measurement from 2 to 32 ohms
hold & store function
time and voltage markers readout
max. 100 Vp AC + DC
Monochrome OLED
power supply: 4 x 1.5 V AAA batteries (not incl.)
operating time: up to 8 hours on quality Alkaline batteries
for use on CLASS II pollution degree II installations
dimensions: 114 x 68 x 22 mm
weight: 166 gr
Current consumption: max. 150 mA
