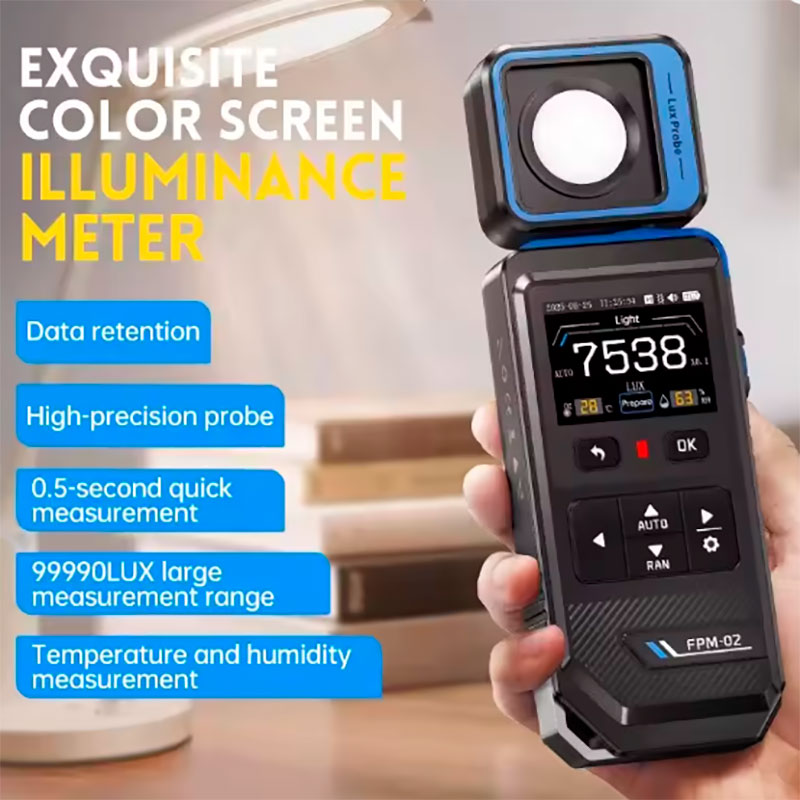

Digital lux meter with colour display for illuminance measurement and simultaneous ambient temperature and humidity monitoring. It is intended for indoor lighting checks, maintenance, technical installations and other applications where light levels need to be assessed quickly and visually.
It measures illuminance in lux and foot-candles —fc—, with selectable ranges up to 99,990 lx and 10,000 fc. The sensor combines a silicon photodetector with an optical filter to shape its response to visible light.
Stated illuminance accuracy is ±(3% + 5 lx) when calibrated against a standard 2854 K incandescent lamp, and ±(6% + 5 lx) for other visible-light sources. The manufacturer also specifies cosine-response deviation at different angles of incidence.
The 2.0-inch colour display shows illuminance, unit, temperature, humidity, date and time, battery status and alarm level. HOLD freezes the reading, while the curve display refreshes every 0.5 s to make changes in lighting easier to follow.
High and low thresholds are configurable. When exceeded, the instrument can alert through an indicator light, vibration and buzzer according to the selected settings. The alarm log stores up to 30 events with date, time and type; once the limit is exceeded, the manual states that the previous records are cleared before a new cycle begins.
The menu allows switching between lux and fc, selecting Chinese or English, choosing light or dark themes, and setting date, time, brightness, volume, sleep and automatic power-off. Factory reset and firmware updating through USB-C and Bootloader mode are also supported.
The instrument is specified for indoor operation from −10 to +50 °C, up to 80% relative humidity and below 2000 m altitude. For storage, the manufacturer states −10 to +50 °C and up to 70% RH with the battery removed.
Keep the instrument away from high temperatures, flames, corrosive gases, excessive moisture, dust, water, solvents, strong magnetic fields and condensation from air-conditioning equipment. Do not obstruct ventilation openings and keep the sensor clean.
| Electrónica Embajadores reference | INC1042 |
| Brand | FNIRSI |
| Model / manufacturer reference | FPM-02 |
| Type | Digital lux meter with environmental monitoring |
| Primary quantity | Illuminance |
| Illuminance units | lux and foot-candle —fc— |
| Illuminance ranges in lux | 1000 / 9999 / 99,990 lx |
| Illuminance ranges in fc | 100 / 1000 / 10,000 fc |
| Accuracy with standard 2854 K incandescent lamp | ±(3% + 5 lx) |
| Accuracy with other visible-light sources | ±(6% + 5 lx) |
| Cosine deviation at 30° | ±2% |
| Cosine deviation at 60° | ±6% |
| Cosine deviation at 80° | ±25% |
| Illuminance sensor | Silicon photodetector with optical filter |
| Display | 2.0-inch colour |
| Displayed environmental parameters | Temperature and relative humidity |
| HOLD function | Yes |
| Curve display | Yes; refresh every 0.5 s |
| Automatic range adjustment | On / off |
| Manual range adjustment | Available with automatic mode off |
| Alarm thresholds | Configurable high and low |
| Alarm outputs | Configurable indicator light, vibration and buzzer |
| Alarm log | Up to 30 events with date, time and type |
| Interface themes | Light / dark |
| Device languages | Chinese and English |
| Date and time | Configurable |
| Display brightness | Adjustable |
| Volume | Adjustable |
| Sleep mode | Configurable |
| Automatic power-off | Configurable |
| Factory reset | Yes |
| Firmware update | Via USB-C and Bootloader |
| Operating environment | Indoor |
| Operating temperature | −10 to +50 °C |
| Maximum operating humidity | 80% RH |
| Maximum operating altitude | <2000 m |
| Storage temperature | −10 to +50 °C |
| Maximum storage humidity | 70% RH, battery removed |
| Approximate dimensions | 63 × 28 × 182 mm |
| Approximate weight | 205 g |
| Standard stated in manual | GB/T 39388-2020 |
