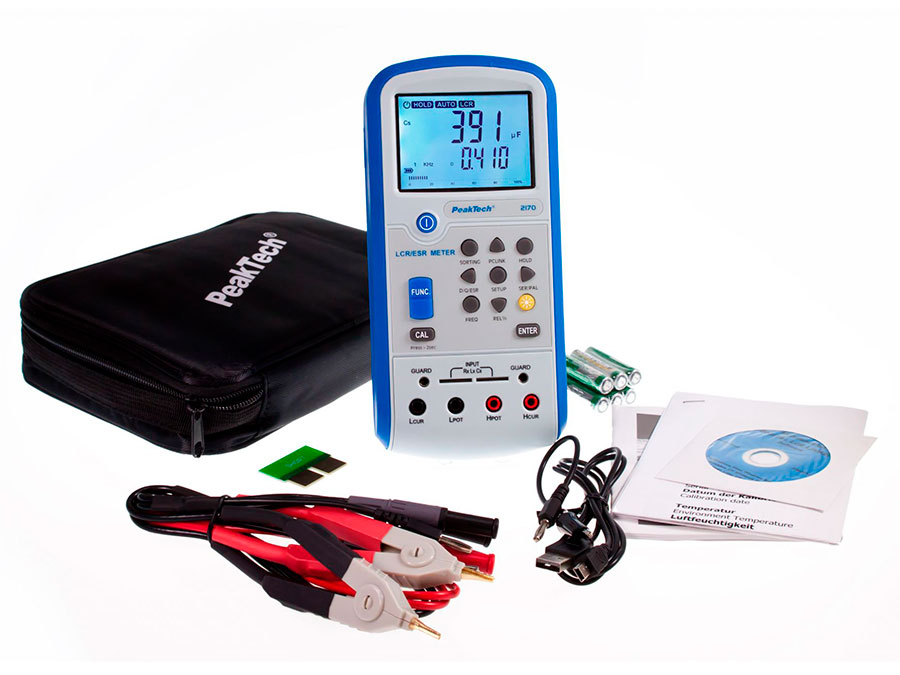

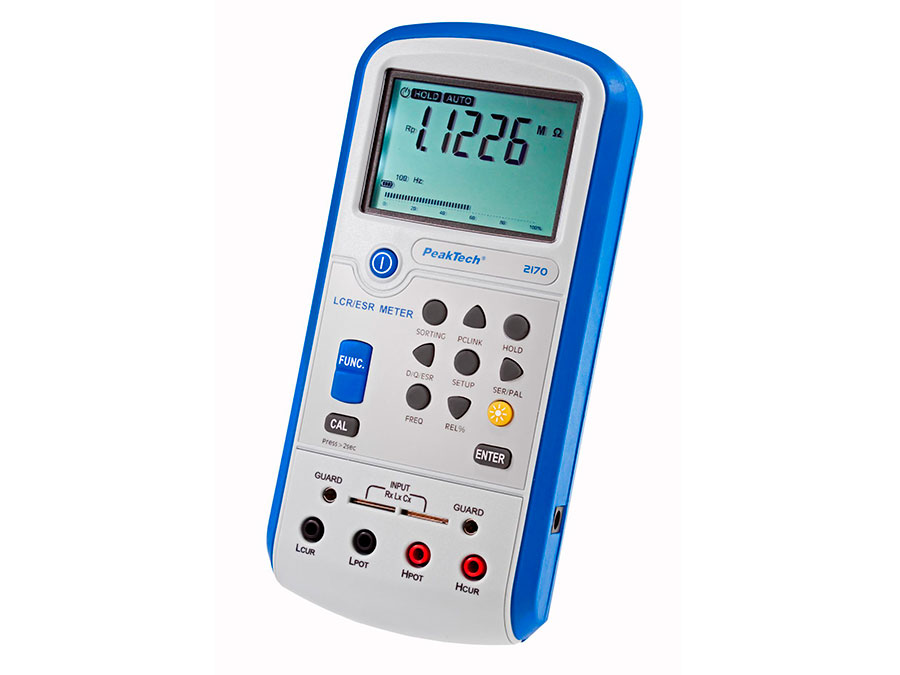

This digital LCR meter with ESR (equivalent series resistance measurements) is equipped with a variety of functions, and thanks to its compact design it is ideal for component testing in the workplace, as well as for service and maintenance tasks. The illuminated multifunction display with bar graph and the high measurement frequency of up to 100 kHz allow high precision. The components can be tested with the included Kelvin terminals (4 conductors) or directly through the sockets on the front of the device. The included PC software allows saving and editing of measured values. The device works with the included batteries or with a power supply available separately.
• 4 1/2 digit multi-line display and bar graph
• ESR (equivalent series resistance) measurement
• Basic accuracy: 0.3% with 0.01% resolution
• Automatic CSF detection
• Success/failure sort function
• Relative value measurement, data hold function
• Measurement frequencies: 100/120 Hz, 1/10/100 kHz
• Auto power off
• Self-calibration function
• USB interface and PC software
• Accessories: USB cable, Windows software, Kelvin terminals, bag, battery and manual
Digits: 20,000
Max. capacity: 20 mF
Test frequency: 1kHz, 10kHz, 100Hz, 100kHz, 120Hz
LCR functions: C, Cp, Cs, D, DCR, ESR, L, Lp, Ls, Q, R, Rp, θ
Max. inductance: 20 kH
Max OHM: 200MΩ
Range selection: Automatically
Screen type: LCD
