Available

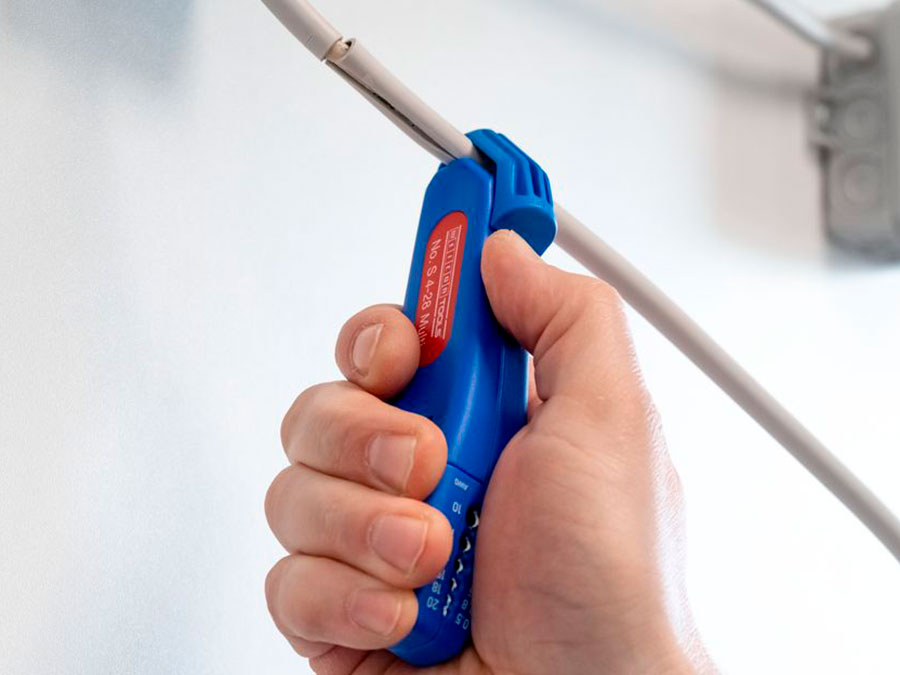

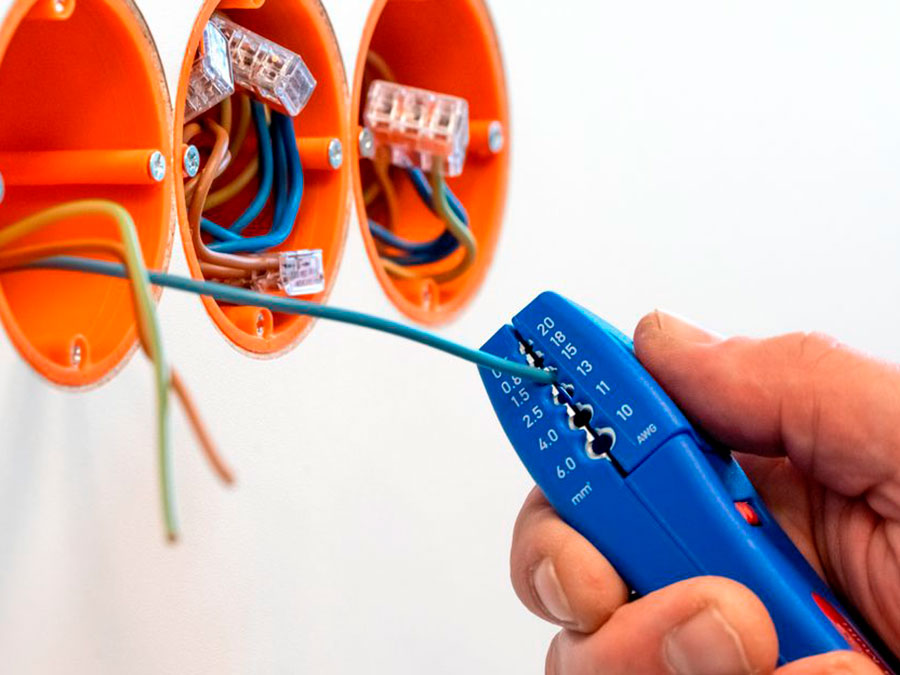

The WEICON S 4-28 Multi is a multifunction cable stripper for removing the outer sheath from round cables and stripping conductors with a single tool. It handles round cables with an outer diameter of 4–28 mm and includes an integrated stripping function for stranded and solid conductors from 0.5–6.0 mm².

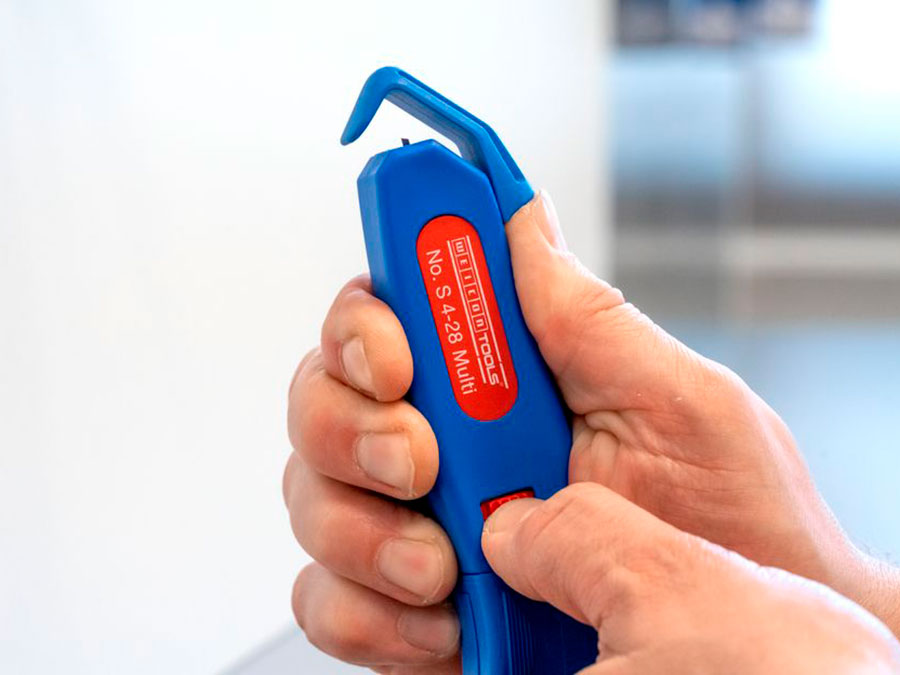

The cutting depth is infinitely adjustable using the adjustment wheel, allowing it to be matched to the sheath thickness and helping to prevent damage to the inner conductors. The cutting blade is self-rotating and automatically adapts between circular and longitudinal cutting.
The housing is made from fibreglass-reinforced polyamide. The inner blade is adjustable and replaceable, facilitating tool maintenance. It is suitable for professional cable installation and maintenance work.
Safety: do not use on live cables or conductors.
| Functions | Round-cable sheath stripping and conductor stripping |
| Cable type | Round cables with PVC insulation |
| Cable outer diameter | 4–28 mm |
| Conductor cross-section | 0.5–6.0 mm² |
| Conductor types | Stranded and solid |
| Cutting depth adjustment | Infinitely variable |
| Cutting blade | Self-rotating |
| Inner blade | Adjustable and replaceable |
| Material | Fibreglass-reinforced polyamide |
| Length | 145 mm |
| Weight | 61 g |
| Certification | Safety tested by TÜV NORD |
| Compatible spare blade | 5010002 |
