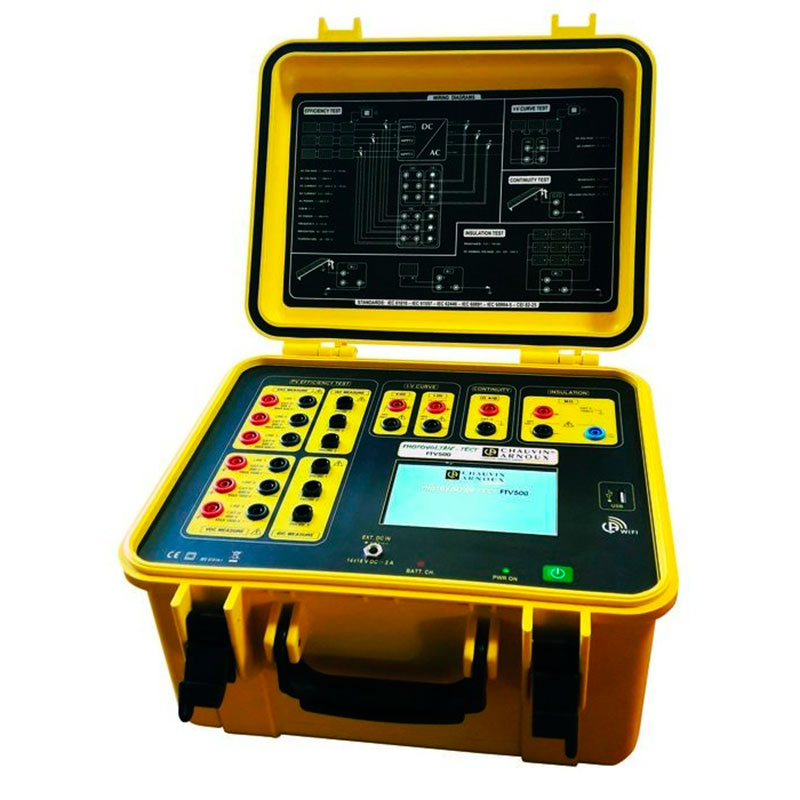

Chauvin Arnoux FTV500 - 5-in-1 Photovoltaic Tester - P01129600

IN6M500

Data sheet

Data sheet

Sold out. We can let you know when it is available.

Quantity

VAT NOT INCLUDED

VAT INCLUDED

11355.18 €

13739.76 €

Identification

EE Code IN6M500

Brand

Chauvin Arnoux

Model FTV500

Manufacturer code P01129600

EAN13

Features

The FTV500 by Chauvin Arnoux is an advanced multifunction solar instrument that combines the features of a photovoltaic tester, solar analyser, and PV maintenance device in one compact and portable unit. It enables professionals to check solar system performance, measure module efficiency, and verify the electrical safety of photovoltaic installations with high precision.

With the FTV500 solar analyser, users can trace accurate I-V curves to identify shading losses, wiring issues or reduced output. Its high-resolution touchscreen interface and Wi-Fi / VNC remote connectivity make operation intuitive and data transfer effortless, allowing engineers to generate customised solar audit reports directly from the field.

This PV maintenance equipment is ideal for residential, commercial and industrial solar installations, including solar farms and multi-string systems. Fully compliant with leading international standards (EN 62446, EN 60891, EN 61557, CEI 82-25), it ensures accurate, traceable and professional-grade measurements for every solar inspection.

The FTV500 offers a large internal memory and continuous data logging capability for long-term monitoring and comparison of performance data. Its rugged IP54 protection rating and long-life rechargeable battery make it perfectly suited for outdoor use and demanding field conditions.

In short, the Chauvin Arnoux FTV500 stands out as a complete and reliable solution for solar energy professionals seeking a comprehensive photovoltaic analyser to improve system efficiency, ensure safety, and optimise the performance of solar installations.

Specifications

Instrument type: 5-in-1 photovoltaic tester, multifunction solar analyser
Standards compliance: EN 62446, EN 60891, EN 60904-5, EN 61557-2, EN 61557-4, CEI 82-25, CEI 64-8, EN 61010-1
Inputs / channels: 3 DC inputs + 3 AC inputs (voltage / current)
I-V curve measurement: 0.005 to 1000 V DC up to 15 A (max 20 A), resolution 0.005 V, accuracy ± 1 %
DC / AC voltage:
- DC: 3 to 999.9 V — resolution 0.1 V, accuracy ± 1 %
- AC: 3 to 700 V — resolution 0.1 V, accuracy ± 1.5 %
DC / AC current:
- DC: 1 to 1400 A — resolution 0.1–1 A, accuracy ± 1 %
- AC: 1 to 3000 A — resolution 0.1–1 A, accuracy ± 1 %
Continuity test: 0.01 Ω to 99 Ω, test current > 200 mA, compliant with EN 61557-4
Insulation test: 0.25 MΩ to 199.9 MΩ, test voltage 250 V / 500 V / 1000 V
Environmental measurements (remote unit):
- Solar irradiance: 50 to 2000 W/m², resolution 0.1 W/m², accuracy ± 2.5 %
- Ambient / module temperature: –20 °C to +150 °C, Pt100 sensor, resolution 0.1 °C
Memory / data logging: stores over 10,000 measurements, automatic Wi-Fi synchronisation
Power supply: rechargeable Li-Ion battery, 100–240 V AC charger, approx. 15 h autonomy
Protection rating: IP54, double insulation, CAT IV 600 V / CAT II 1000 V
Dimensions / weight: main unit 340 × 300 × 200 mm / 6 kg — remote unit 160 × 120 × 63 mm / 1 kg

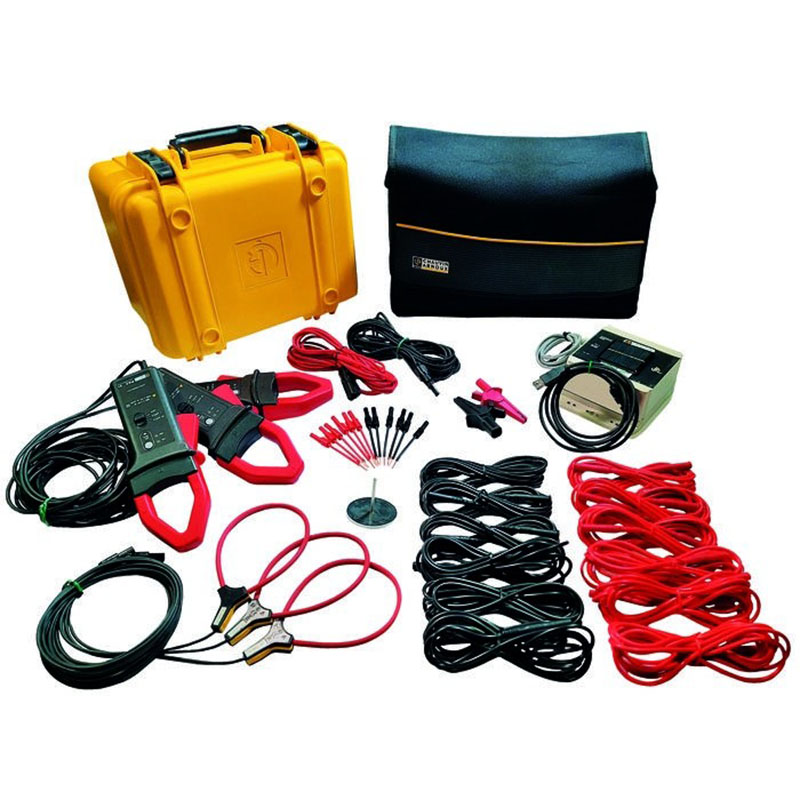

Included accessories: carrying case, charger, remote unit, AC MiniFlex MA500 clamps, DC PAC500 clamps, 4 mm banana leads, crocodile clips, inclinometer, calibration certificate
